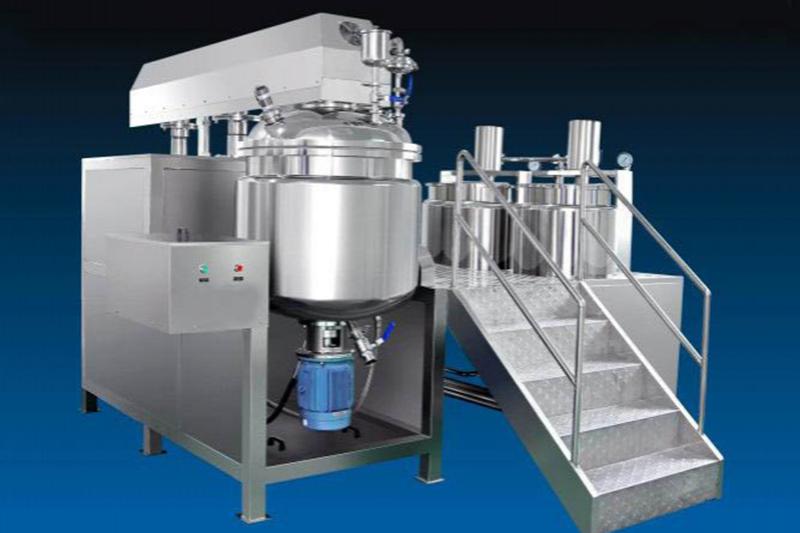

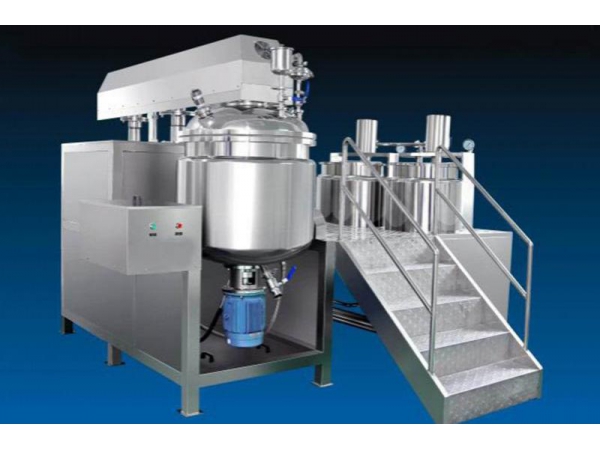

High Shear Mixer
The high shear mixer is suitable for emulsifying viscous products and material with a high solid content. The mixer can be used in the production of cosmetic creams, and various items in the medical and pharmaceutical industries.
ParameterOuter dimension: 2950mm x 2100mm x 2120mm x 2970mm (length x width x height x overall height)
The emulsifying pot: volume: 100L, material: SUS316L, heating method: steam heating, cooling method: water cooling.
Internal material: Inner container material: 316L, thickness: 5mm, internal polishing material: 300MESH (HSF). Jacket material: SUS304, thickness: 4mm, operating power: 0.3MPa. Insulated housing: 304, thickness: 2mm, external polishing material: 300MESH (HSF).
Three stirrer devices in the emulsifying pot:
High-shear dispersion homogenizer: working power: 4KW, rotational speed: 0-3300r/min (Frequency control of motor speed),
Back-flow frame stirrer: working power: 1.5KW, rotational speed: 0-80r/min (Frequency control of motor speed),
Reverse stirring system: scraper and stirrer are driven by the same motor, rotational speed: 0-80r/min.
