1) Features:

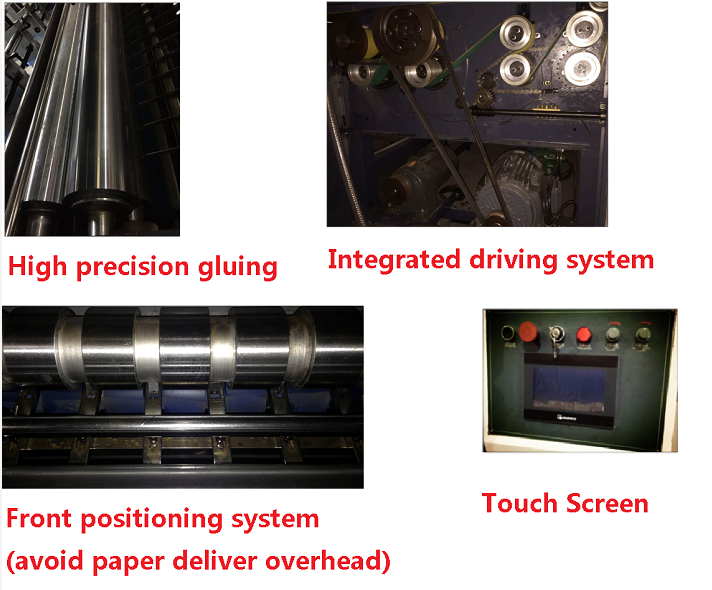

1. Special front location with high accuracy.

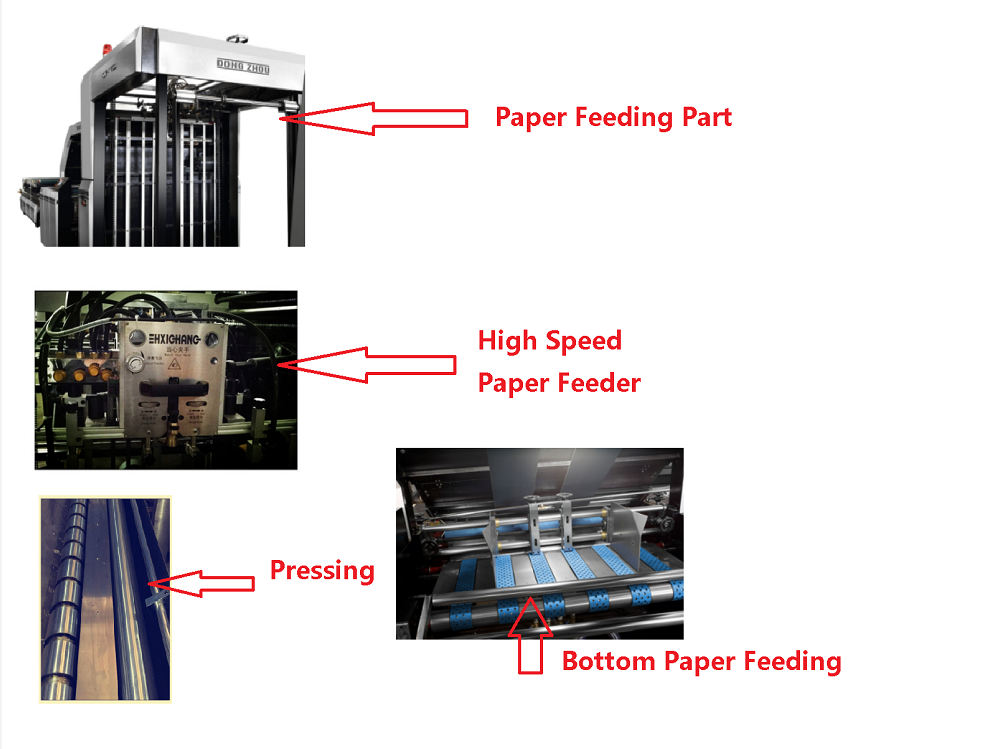

2. Surface paper feeding adopts overlapped feeding style which makes paper conveying more stable.
3. With the advanced PLC tracking technology, automatically adjust the relevant parameters according to the paper size, which makes the machine always operate at the best state.
4. Bottom paper feeding adopts rotary telescopic frame, which is suit for curled corrugated board to a great extent..
5. The feeder with pre-feeding device, so as to reduce the stopping time of machine and improve productivity.
2) Function:
1. SIEMENS brand PLC control system, simplify electric equipment’s structure for more stable and reliable controlling.
2. With frequency conversion speed adjusting system, realize no-stop step-less variable-speed regulation..
3. Automatic operation state displaying, automatic trouble alarming, and stopping.
4. Automatic empty and double paper examining and alarming.
