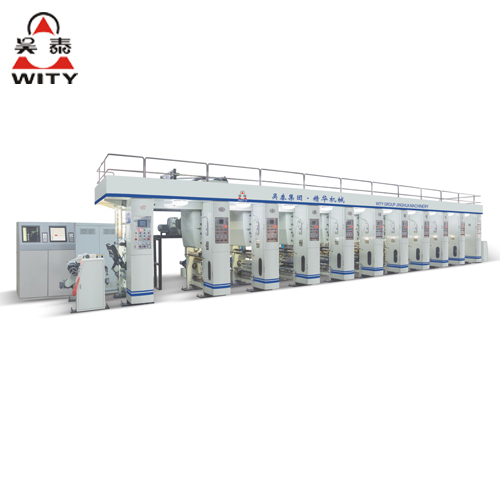

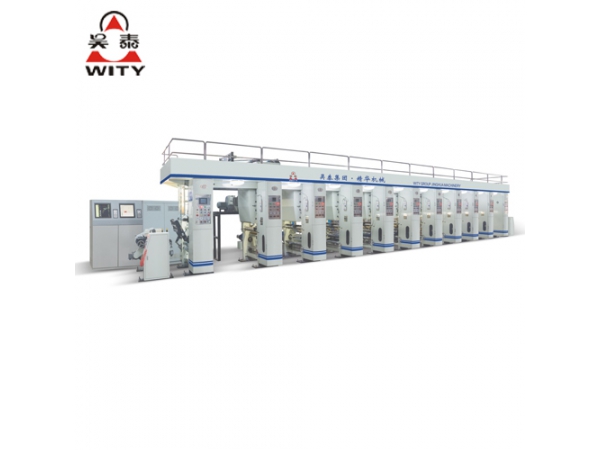

It is widely used in multi-color printing all type of plastic, paper roll material. Four segment tension with seven motor close loop control. No stop unwinding and rewinding, computer color register, shaftless printing plate loading, pneumatic scraping blade, frequency inverter speed regulating. Steady tension, high precision color register, low waste, reasonable design, reliable quality.
Main characteristic:

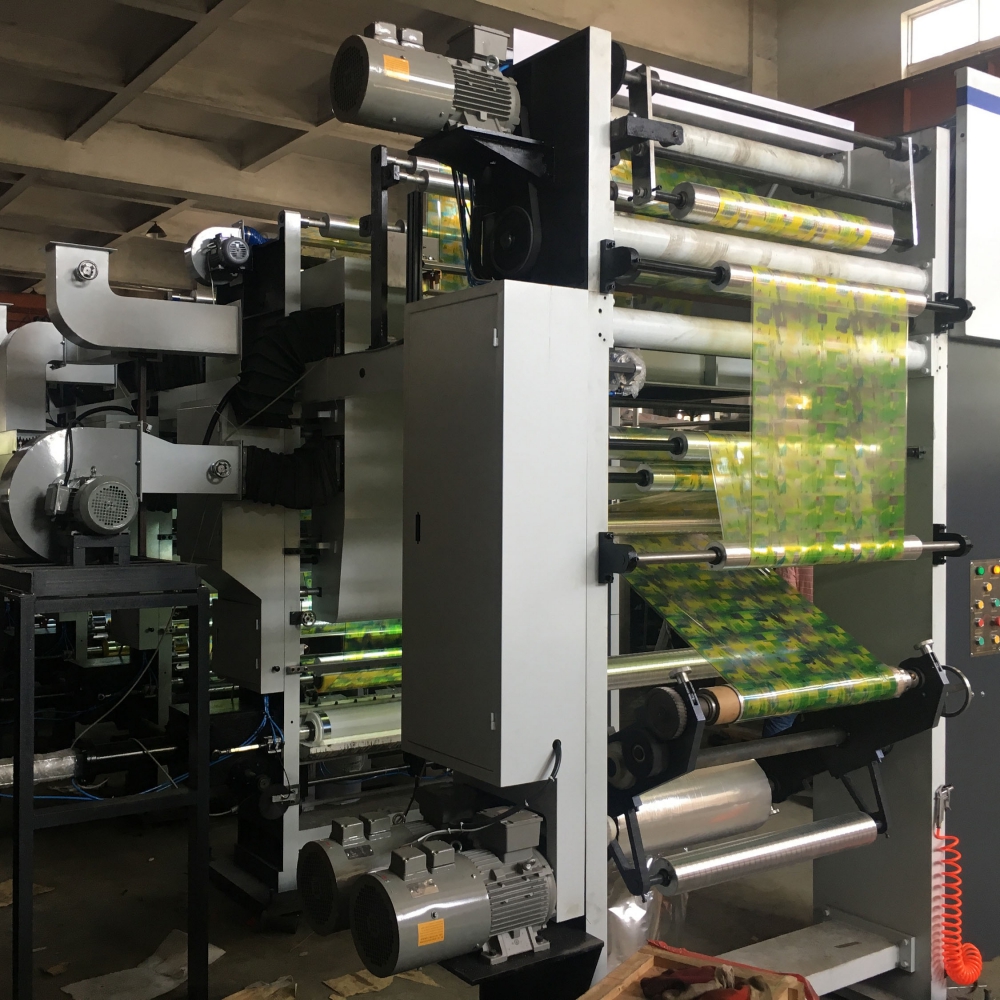

Independent unwinder and rewinder
Unwinding and rewinding AB shaft automatic receiving material no-stop printing
Air-cooling device(can change to use water cooling roll device)
Float arm type double cylinder pressing the printing press roll
Pneumatic type shaftless cylinder loading structure
Double room type air cycling dryer
External type heating structure

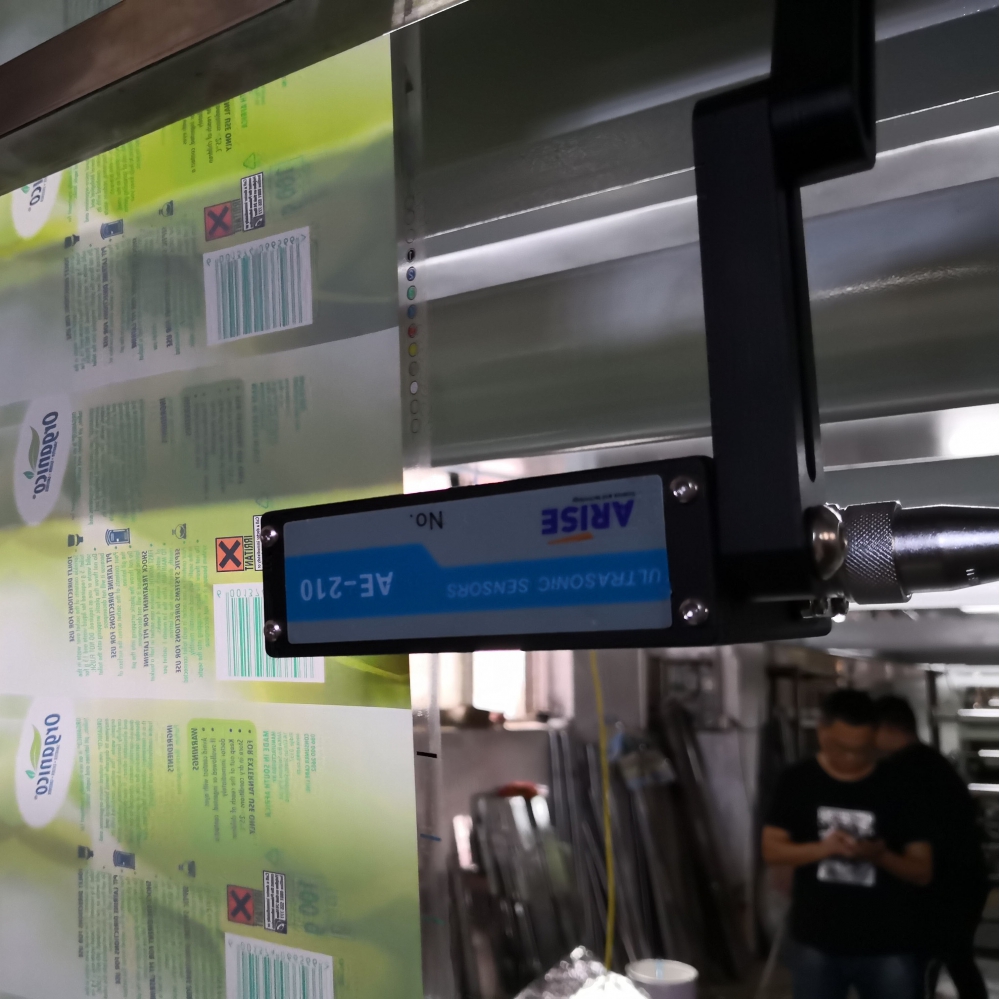

Computer color register system
Video image picture system
Tension system seven SIEMENS brand motor close loop control

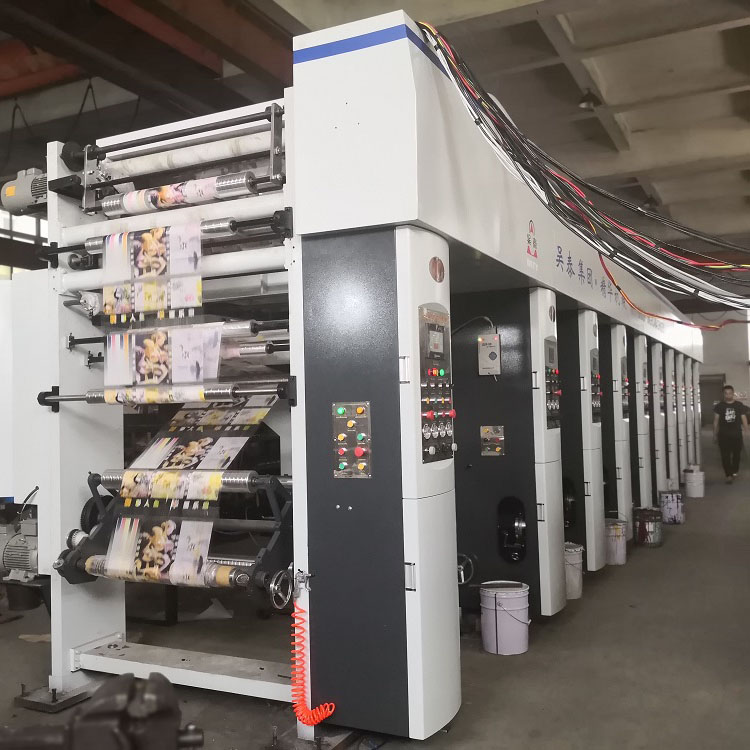

Independent unit structure
Parameter:
Model | YAD-8800A5 |
Color | 8 color |
Printing width | 800mm |
Paper core diameter | ¢76mm |
Material roll diameter | ¢600mm |
Printing plate cylinder diameter | ¢100~300 |
Precision of register | ±0.12mm |
Max. speed | 160m/min |
Total power | 135kw |
Overall dimension | 16500x2650x2850mm |
Weight | 18000kg |
Material Thickness:
Printing material | Thickness | Printing material | Thickness |
OPP/BOPP/CPP | 15-60μm | PET | 12-60μm |
PA | 15-60μm | Cellophane | 20-30μm |
PVC/PO/PVDC | 40-70μm | composite film | up to 150g/m2 |
composite pressure film | up to 150g/m2 | PE | 60-100μm |
note: PE register error is 0.2mm | |||
