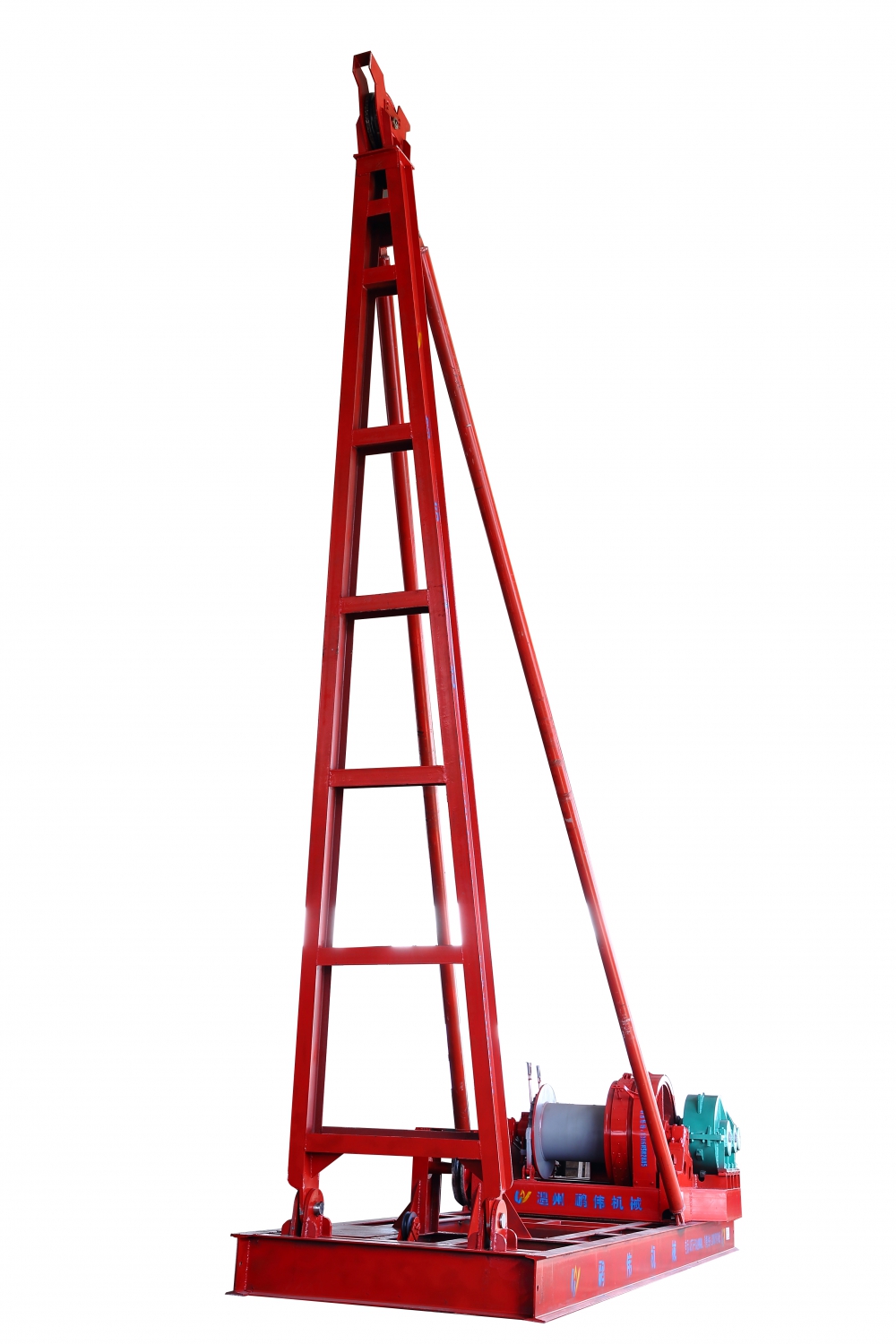

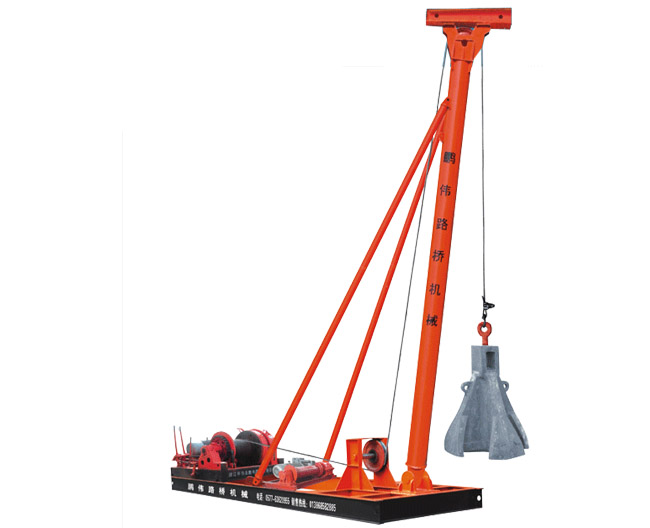

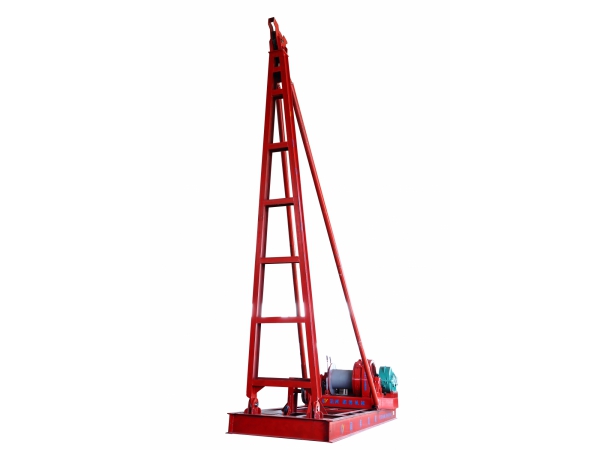

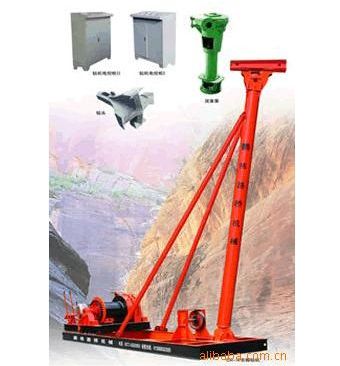

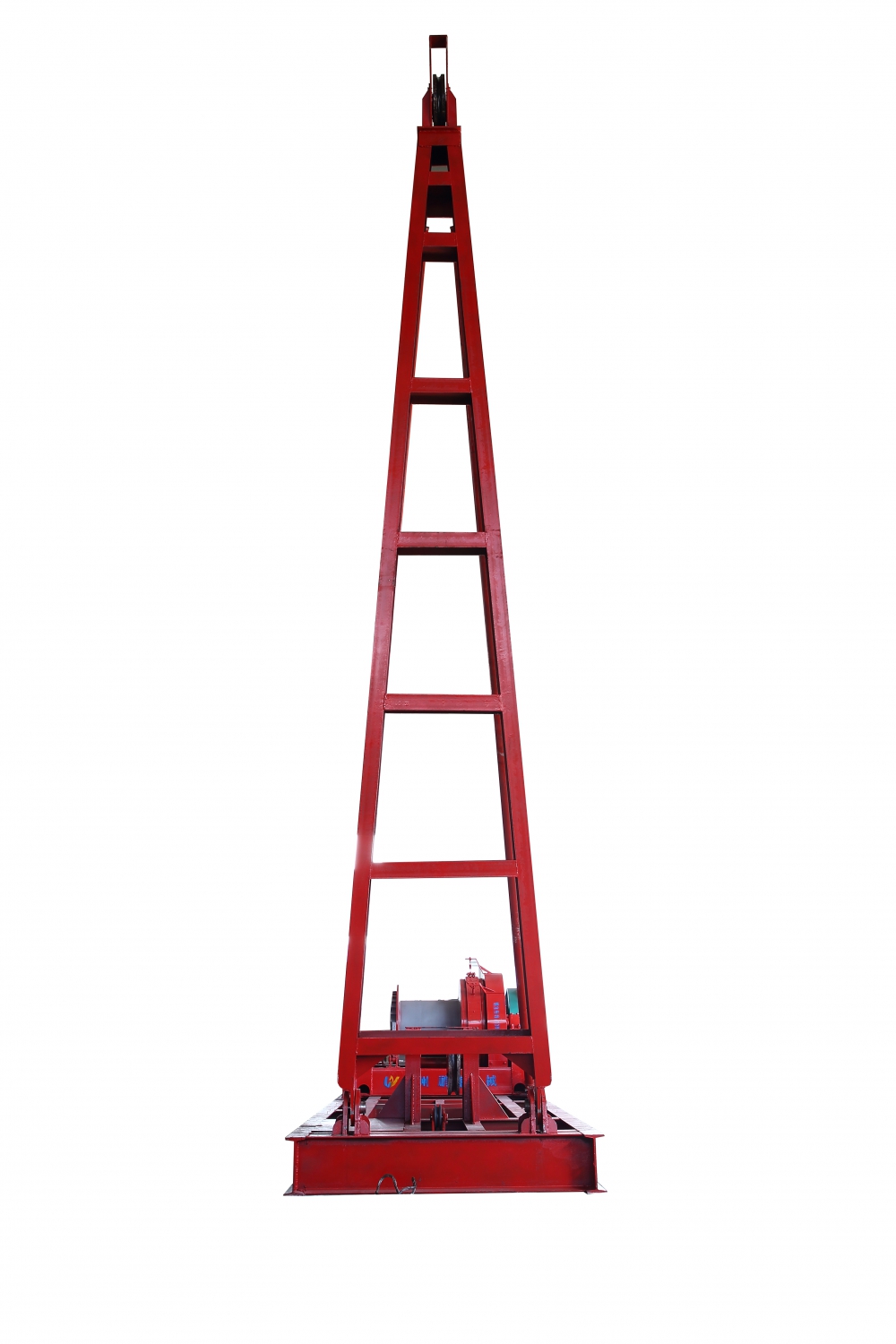

Punching pile driver can be applied in foundation construction sites such as highways, railways, bridges, water conservancy, buildings, docks, etc. It is an ideal special equipment for foundation pile hole construction. The punching diameter of the product is up to 5 meters, the depth is deep, the construction cost is low, the operation is convenient, and the capital input and output recovery time is short.
The friction plate adopts the new technology of veneer seamless assembly, the locking method of the fastener adopts the new technology of anti-loose and anti-vibration, and the lubrication system of the main equipment adopts the new technology of anti-clogging and self-immersion.
Features
1. Speed of the lifting hammer is fast and efficiency is high.
2. The life of the pile driver is long .
3. Easy to operate and maintain.
4. Low maintenance cost and value for money.
Parameters
The main parameters Model CK900 CK1200 CK1500 CK1800 CK2200 CK2500 CK2800 CK3000 Punching depth（m） ≤120 Punching frequency （n/min） 6-12 5-10 Punching diameter（m） ≤0.9 ≤1.2 ≤1.5 ≤1.8 ≤2.2 ≤2.5 ≤2.8 ≤3.0 Punching diameter JKL3/2JKL3 JKL5/2JKL5 JKL6/2JKL6 JKL8/2JKL8 JKL10 JKL10/JKL12 JKL12 JKL16 Model of auxiliary winch JZ1 JZ1.5 JZ1.5 JZ2 JZ2 JZ2 JZ3 JZ3 Mud pump model 3PNL 3PNL 3PNL 3PNL 3PNL 3PNL-2 4PNL 4PNL Total power（kW） 49.5 66.5 74.5 84.5 104.5 104.5/119.5 138 158 Dimensions（mm） 7000×1800×7000 7500×2150×7500 8000×2150×7500 8500×2250×8500 Note: The model of auxiliary winch and the mud pump could be selected by the customer. If the punching diameter is more than 3 meters or other specifications and models, the machine could be customized. Technical changes would not be notified separately, please refer to the actual situation.
