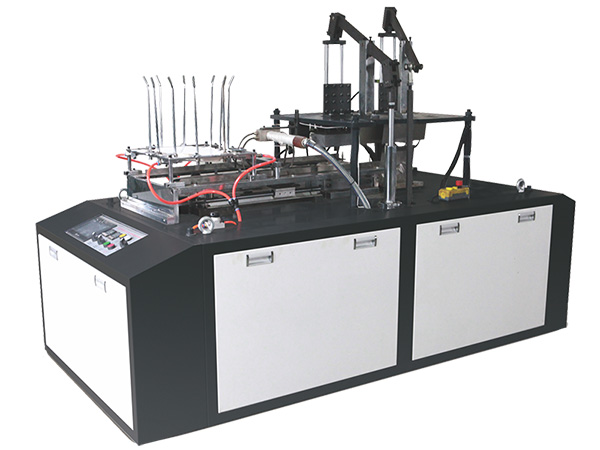

Automatic Paper Lunch Box Forming Machine (Mechanical)

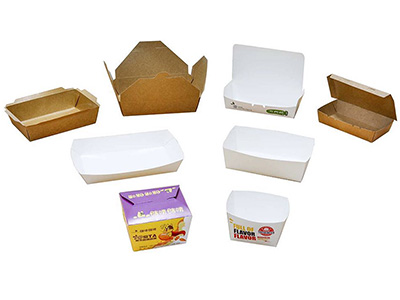

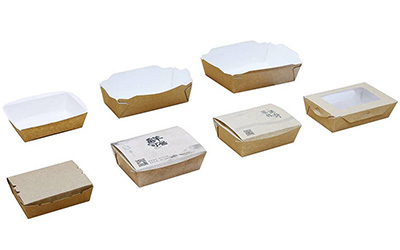

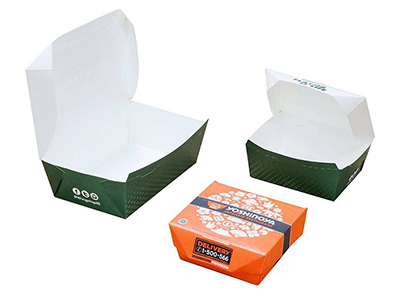

Automatic paper lunch box forming machine is designed with mechanical forming method to produce paperboard lunch boxes, takeaway food boxes, paper food trays, etc.

Inquiry
Features
  • This paper lunch box machine is controlled by mechanical system, no need air compressor. It can save more than 6kw power for user;
  • Hot air is blown out from heating tube, which allows tight sticking of PE coated paper.
  • Multiple processes can be accomplished automatically, including paper feeding, heating, forming, feeding out and final products collecting.
Specifications
ModelCHJ-D 60CHJ-D 120
Production capacity30-45pcs/min30-40 pcs/min
Applicable material200--400g/m2 single or double PE coated paper
Total power4KW5KW
Total weight1250KGS1750KGS
Overall dimension2200 x1100 x 1500 mm2800 x1100 x 1900 mm
Power source380V 50HZ
