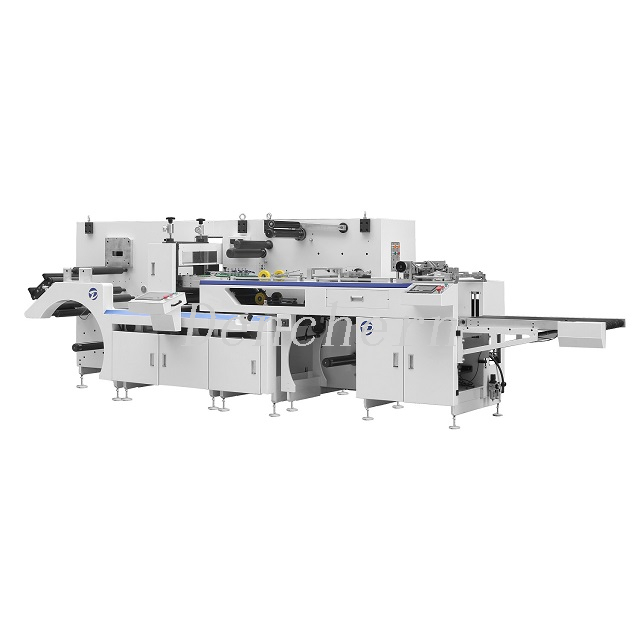

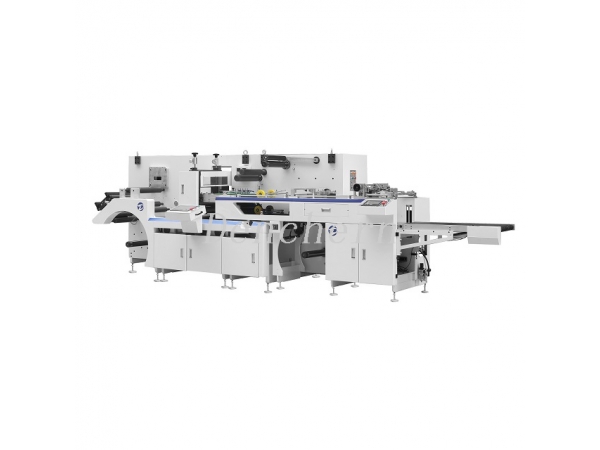

Independent developed efficient label die cutting machine, with inspecting die cutting, waste discharging, stacking collecting function. It adopt servo drive, high positioning accuracy and stable quality, can bu applied to adhesive, card paper, paper, film etc. It can expandable lamination, vanish, slitting, and stamping, provide optimum label processing solutions for you.
Model | 370 | 480 |
Max. web | 370mm | 480mm |
Max. speed | Rotary 120m/min Intermittent 300times/min | Rotary 120m/min Intermittent 300times/min |
Die cutting length range | 50-444.5mm | 50-444.5mm |
Adhesive die cutting precision | ±0.15mm | ±0.15mm |
In molding label precision | ±0.25mm | ±0.25mm |
Collect stack height | 100mm | 100mm |
Power | 15kw | 15kw |
Voltage | 380V.50HZ | 380V.50HZ |
Outline size | 5400*1600*1600mm | 5400*1700*1600mm |
