This film extruder adopts two screws. If want to produce stretch film with only one side adhesive, we need to feed different raw materials to two different hoppers.

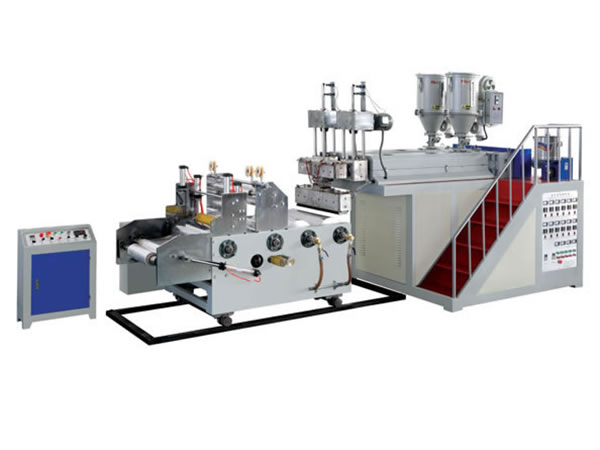

Features of JDCPE-60/45 500mm Double Layer Stretch Film Extruder:
1. Nitrogen treated 38CRMOALA alloy is adopted to make screws and cylinders of our film extruders to ensure a capacity of anti-corrosion and long service lifetime etc.
2. Cycle water cooling device guarantees the best transparency of produced stretch films.
3. Auto change-over and auto cutting are applied in the rewinding part.

echnical Parameters of 500mm Double Layer Stretch Film Extruder:

ModelJDCPE-60/45
Diameter of screw60mm/45mm
Screw L/D30:1(L/D)
Width of products250-500mm
Thickness0.01-0.03mm
Output40kg/h
Main motor power8.5/7.5 kw
Heating power30kw
Machine weight4T
Overall dimensions5,600×2,600×1,800mm
Power supply380/3/4/50(Volt/Ph/Line/Hz)
