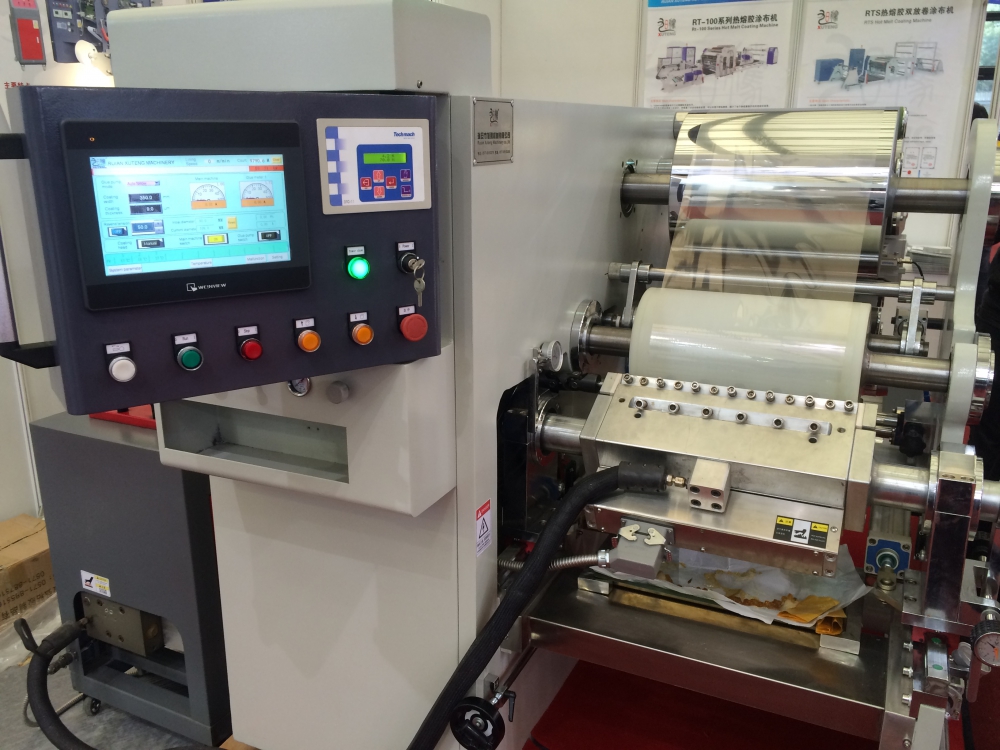

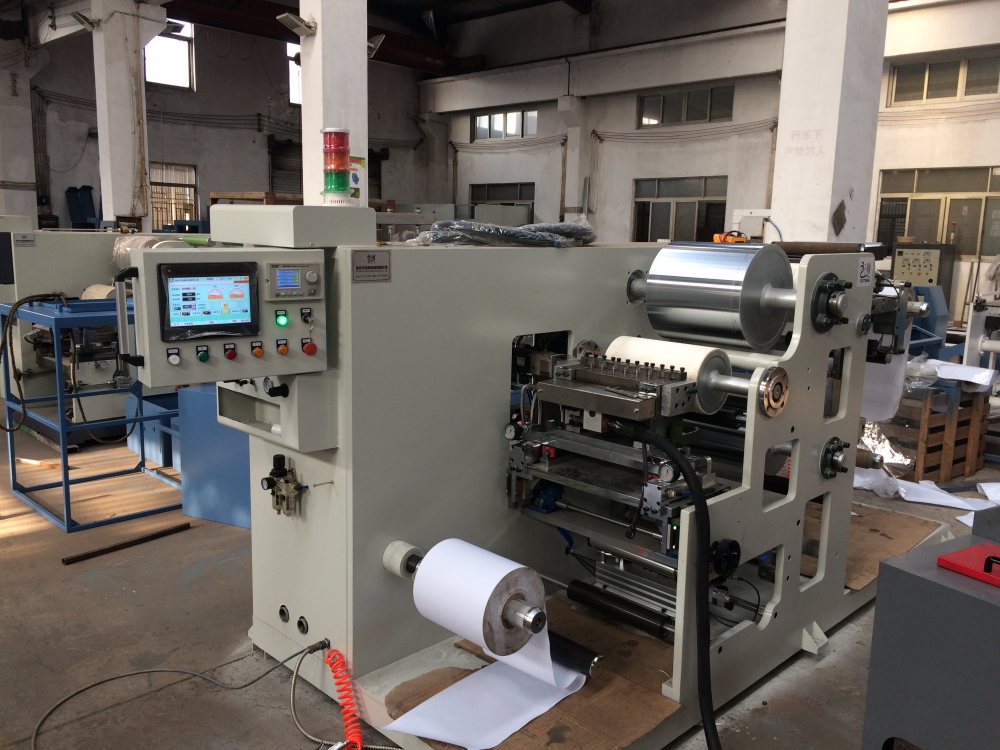

Non-Scratch Hot Melt Coater (WHT350 Series)
WH350 Non-scratch hot melt coater is specially designed for the manufacture of transparent film tapes such as BOPP and PET. This hot melt coating equipment has the following features:
Features:

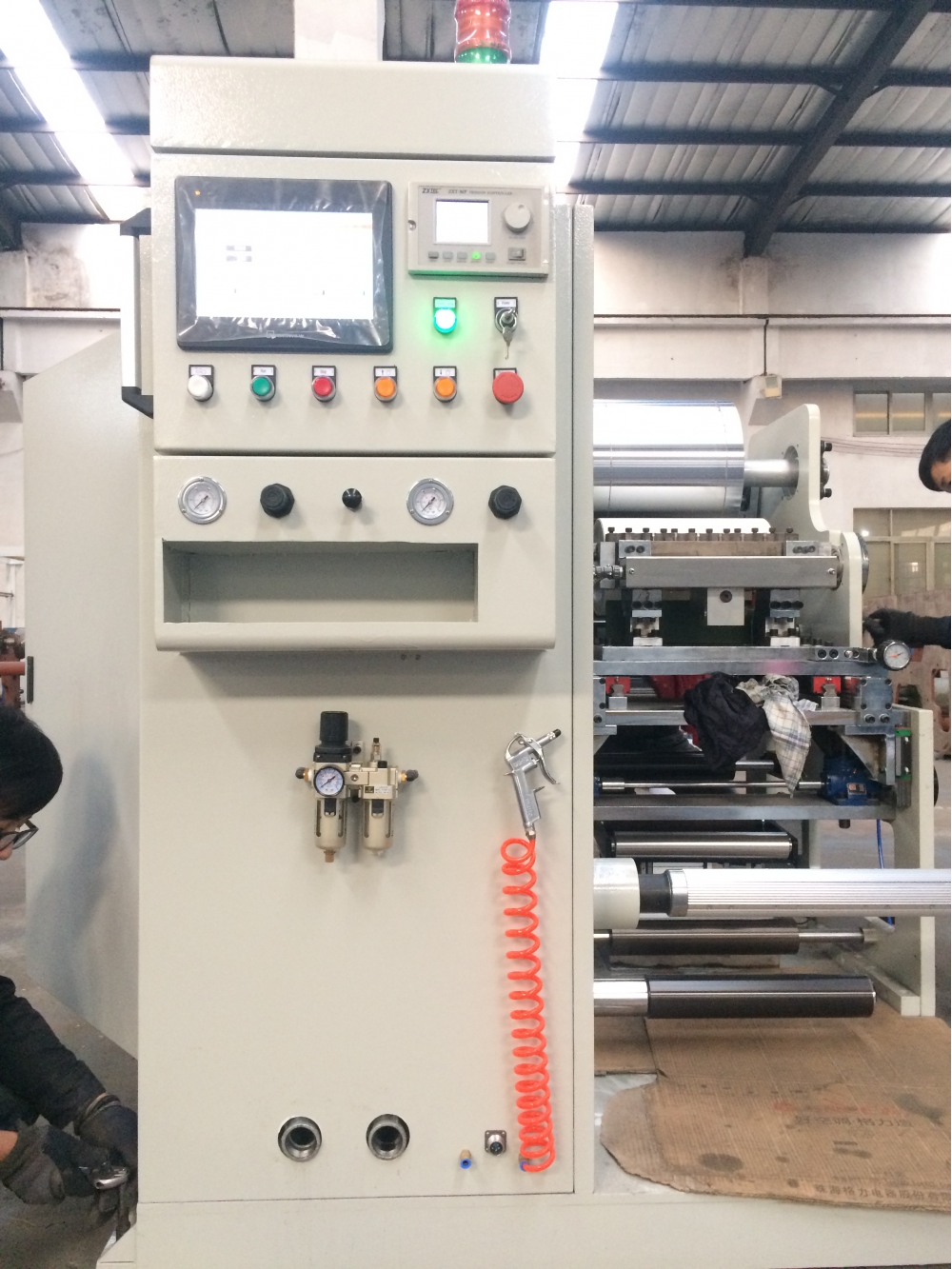

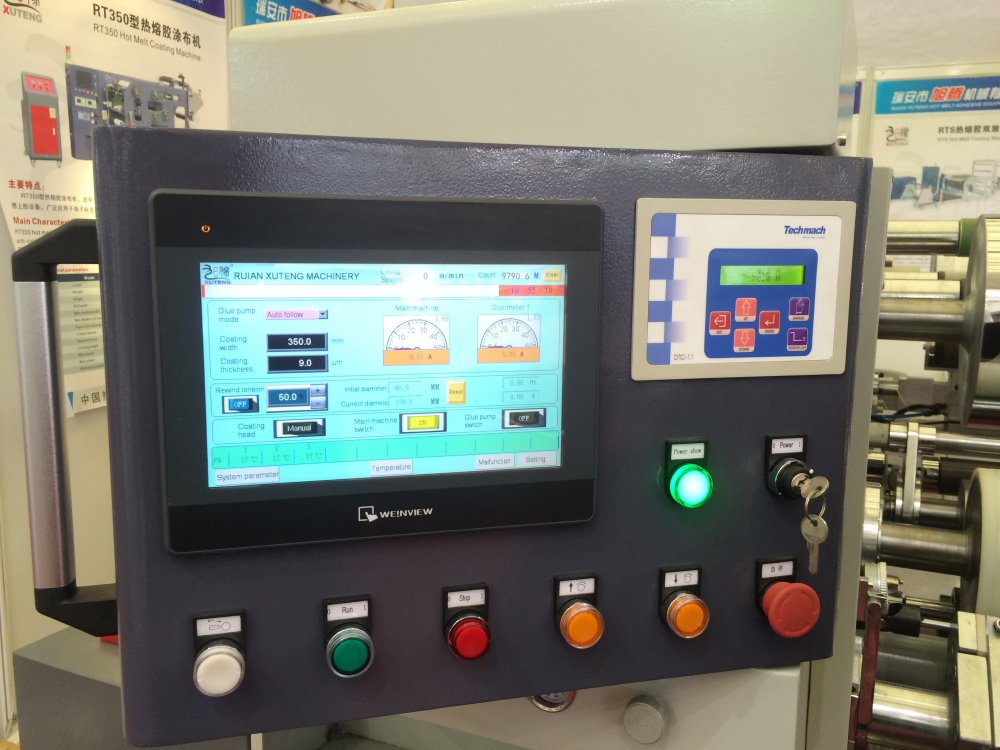

1. Adopting a PLC control system with touch screen HMI provides easy
operation and high automation.
2. Wear resistant alloy steel coating head is utilized.

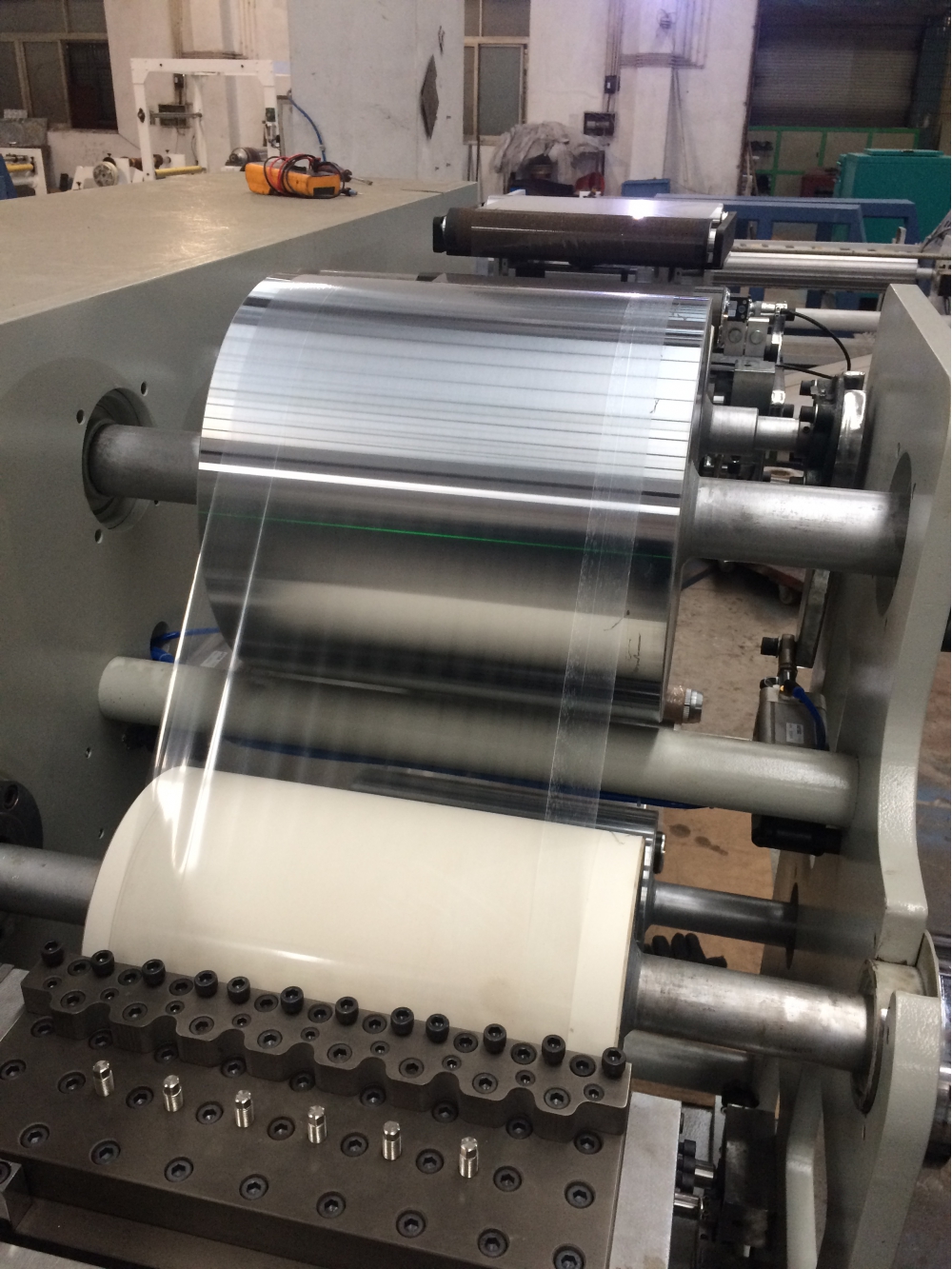

3. The non-scratch coating head is driven by a servo motor, ensuring stable
operation and smooth coating surface.
4. The tension at the rewind station is controlled by a servo motor, providing
excellent tension control.
5. The hot melt coating equipment is equipped with a high precision gear
metering pump, allowing for stable adhesive feeding especially at high and low
speed.
6. The synchronous belt drive ensures stable operation at high speed, and low
noise.
Technical
Parameters
Model | WHT350 |
Max. Coating Width | 350mm |
Width of All Rolls | 400mm |
Coating Weight | 13-200g/m2 |
Max. Coating Speed | 150m/min |
Unwind Roll Diameter | 600mm |
Rewind Roll Diameter | 500mm |
Unwinding Unit | 2 sets |
Rewinding Unit | 1 set |
Machine Dimensions | 2200*1300*950 |
