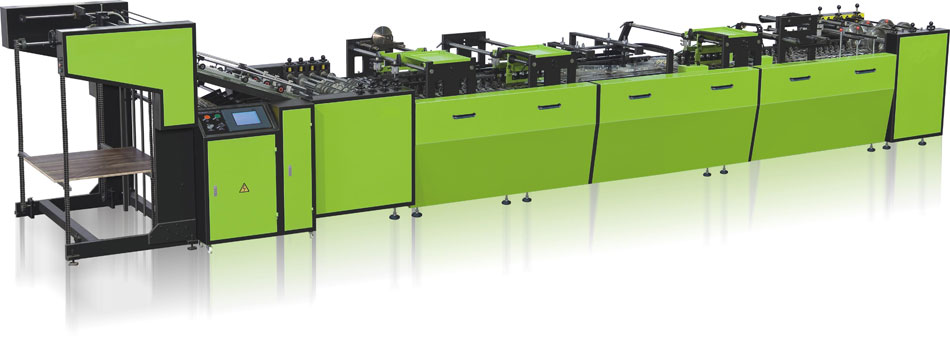

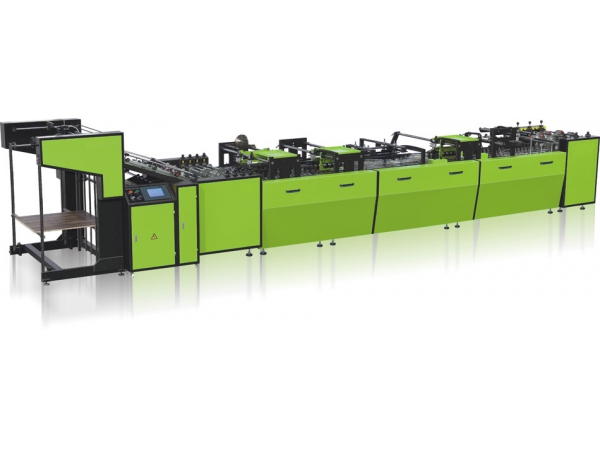

Paper Bag Making Machine
Our paper bag making machine is suitable for making various kinds of portable paper bags. Using single sheet of impressed paper as raw material, the machine can automatically perform paper feeding, line aligning, gluing, folding, tube forming, and bag tube discharging operations, which ensures high efficiency, product quality and reduces labor intensity. The paper bag making machine adopts water soluble cold glue and glue spray system.
Features 1. The machine frame is made of 30mm thick high strength
shock-absorbing steel plate for high durability and great shock
resistance. In addition, the use of precise machining center and wire
cutting equipment helps ensure its high precision and performance.
2. Conveyor rollers of the paper bag making machine are made
using seamless hollow tubes that have undergone ageing, quenching and
tempering treatments. Hence, they offer good anti-bending performance,
long service life, low noise, light weight and high stability.
3. The paper bag machine is flexible and easy to use, which can make bags with both small opening and large opening.
4. The paper bag making machine uses renowned brand components for high reliability.
a. It uses electronic components from Omron, Siemens, Panasonic, etc.
b. It adopts a feeder whose model is the same with the feeder used in Beiren 08 printing machine.
c. The paper bag making machine utilizes Orion composite vacuum pump.
d. It uses Robatech hot melt spray system which offers such
advantages as high accuracy, safety, low maintenance and long life.
| Outline dimension | 10050mm*1720mm*1690mm (length*width*height ) | Weight | 4000KG |
| Total power | 10KW | Bottom gusset height | 50-200mm |
| Max. paper size | 1200mm*600mm (length*width) | Min. paper size | 400mm*280mm (length*width) |
| Paper weight | 100-400g | Bag making speed | 5000pcs/h |
