Features

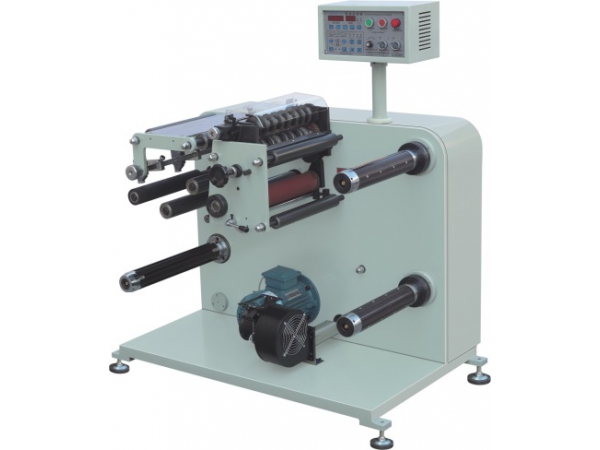

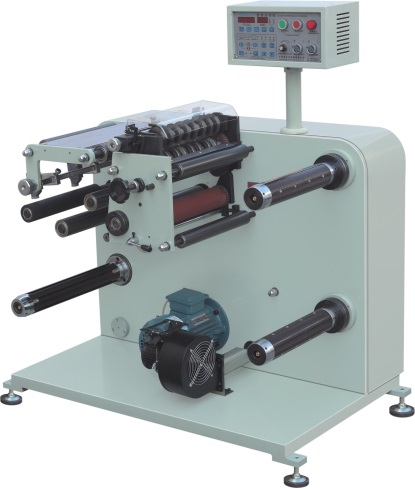

YS-320/420 label slitter rewinder can work in combination with a die cutter and is suitable for slitting narrow web paper labels.
The label slitter rewinder has functions like auto web length count, fixed-length auto stop, auto web position correction by photo eye, etc. It features compact design, fast production speed, high slitting precision, easy operations and stable performance.
Specifications
Type | 320 | 420 |
Slitting Speed | 120m/min | 120m/min |
Max. Web Width | 320mm | 420mm |
Max. Unwind Roll Diameter | 500mm | 500mm |
Max. Rewind Roll Diameter | 500mm | 500mm |
Min. Slit Width | 16mm | 16mm |
Max. Slit Width | 320mm | 420mm |
Positioning Accuracy | ±0.10mm | ±0.10mm |
Main Motor Power | 1.5kw | 1.5kw |
Overall Dimension | 1100X800X1280mm | 1200X900X1280mm |
Weight | About 400kg | About 500kg |
