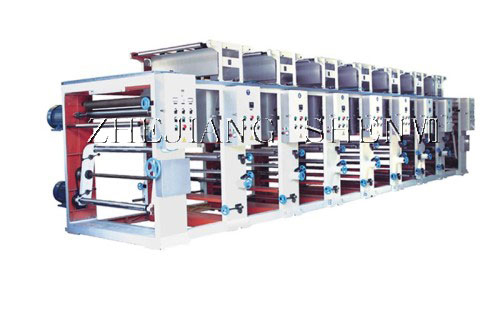

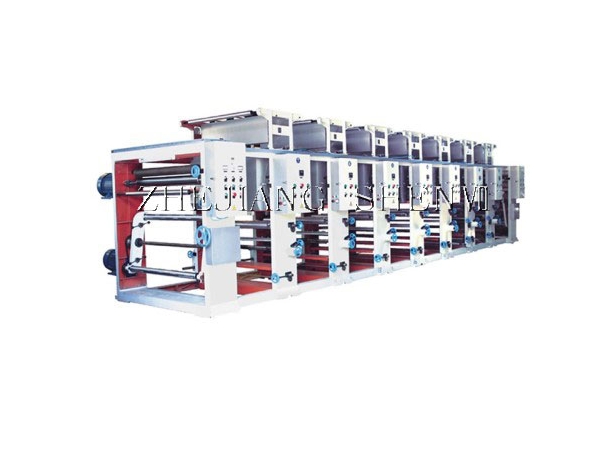

The plastic film gravure printing machine is used for BOPP, PET, PVC, PE, and reel shape materials.
| Printing Width | 600-1200mm |
| Printing Diameter | ∮ 100- ∮ 280mm |
| Maximum Printing Speed | 60m /min |
| Format Precision | ≤0.20mm |
| Motor Power | 4kw |
| Heating Power | 5kw |
| Machine Weight | 6000kg |
| Boundary Dimensions | L8800×W1800×H2400mm |
Features
1. The gravure printing machine can increase or reduce printing
color-group according to the customer's requirement and it can finish
printing continuously all at once in front and opposite two faces.
2. It offers a 360 degree color-processing system which is reliable and easy to run.
3. The transmission part of the gravure printing machine uses a gear box structure and is oil-lubricated in the pan seal.
4. A magnetic powder brake is used for unwinding tension control, and a
torque motor is used for rewinding. The static equilibrium of aluminum
alloy guide roll helps maintain the tension stability.
5. The gravure printing machine uses a two-bake-way design so it dries
up fast, can be printed rapidly, and achieve nonstop material exchange.
We are a specialized gravure printing machine manufacturer based in China. We also provide 6 color flexographic printing machine, non woven bag making machine, plastic bag making machine, and PE film blowing machine.
