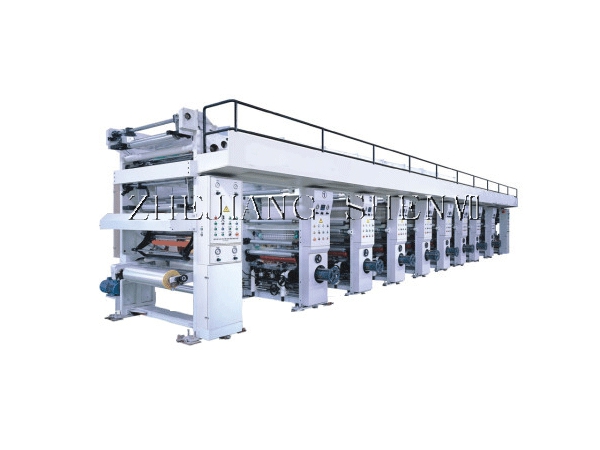

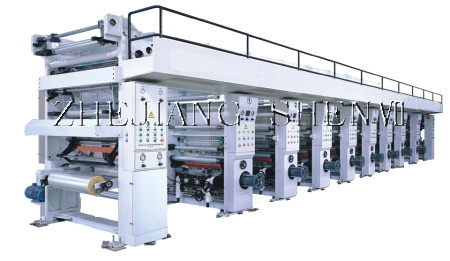

The plastic film, paper and aluminum foil printing machine is used for flexible packaging. It has a shafted printing cylinder, independent unwinder and rewinder, web guides at the in-feed unit or the out-feed unit, a video camera, reversible printing units, ESA, a diagnostic information system, and a machine management system.
| Max. Mechanical Speed | 150mpm |
| Substrates | Film, light paper, and aluminum foil |
| Max. Web Width | 650-1200mm |
| Printing Repeat | 380-940mm |
| Max. Reel Diameter | µ600, 800, 1000mm |
Features
1. The high speed gravure printing machine has a main shaft drive and
automatic sectional independent tension control with dancing rollers.
2. It offers a pre-registration function.
3. The speed gravure printing machine has flying splice for unwinding and rewinding and sleeve type cylinders with air-chucks.
4. It offers automatic longitudinal registration control, and manual or electric lateral registration control.
5. It has an extended drying hood on the last unit.
6. It offers doctor blade assembly with dual pistons.
7. The speed gravure printing machine offers adjustable recirculation
of hot air, integrated unwinder and rewinder, and touch screens on
control panels.
8. It offers drying sources of electricity, steam, thermal, natural gas, etc.
As a professional speed gravure printing machine manufacturer based in China, ShenⅦ also provides 4 color flexographic printing machine, dry laminating machine, hot melt coating machine, paper cup forming machine, and much more.
