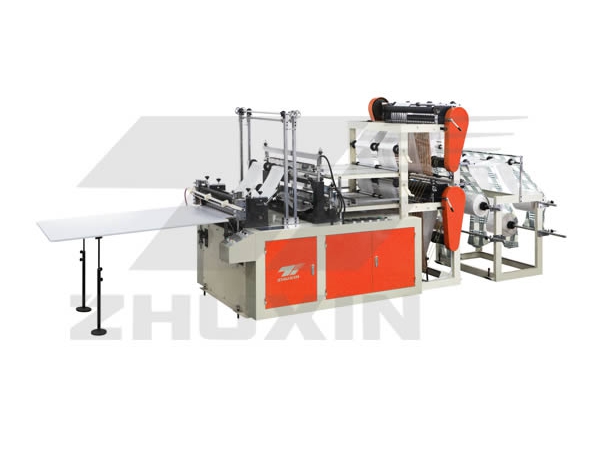

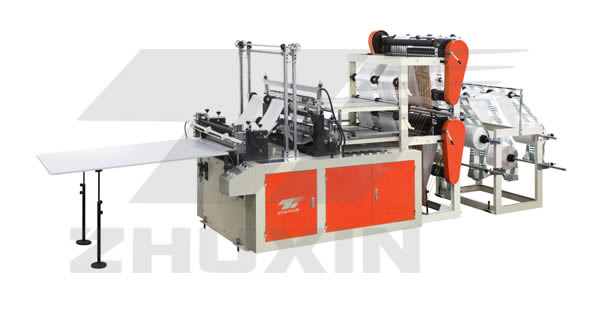

SHXJ-600-1200 double layer plastic bag making machine is ideal for heating and sealing HDPE, LDPE and PP plastic film and producing T-shirts and carrier plastic bags. And double layer plastic bag making machine is the most economized and suitable heating sealing plastic bag making machine.
Double layer plastic bag making machine consists of electro-optic automatic material transporting device, automatic temperature control device, static electricity removing device, auto counting device, siren device and others. The whole plastic bag making process can be completed automatically with the help of automatic devise mentioned above. And it is easy to operate double layer plastic bag making machine and plastic bag making machine of reliable and stable performance can produce strong bottom plastic bags.
Main Technical Specifications| Model | SHXJ-600 | SHXJ-800 | SHXJ-1000 | SHXJ-1200 |
| Width of sealing (mm) | 550 | 750 | 950 | 1150 |
| Length of sealing (mm) | 950 | 950 | 950 | 950 |
| Speed of bag making (pcs/min) | 30-120 | 30-100 | 30-100 | 30-80 |
| Power (kw) | 1.1 | 1.1 | 1.1 | 1.1 |
| Line | 4 | 4 | 4 | 4 |
| Weight(kg) | 700 | 800 | 900 | 1000 |
| Outline dimension (L×W×H) mm | 3200×1150×1700 | 3600×1350×1800 | 3600×1550×1900 | 3600×1750×2000 |
| Heating power (kw) | 4 | 5 | 6 | 6 |
As a professional bag making machine manufacturers, our company can provide high quality double layer plastic bag making machine. Advanced frequency converter is installed and has many advantages such as automatic torque compensation. Besides, this frequency converter can protect electric motor and save much energy in case of frequent start and stop of electric motor. Cutting sealing machine adopts advanced heat cutting cool sealing technology, and can make sure that bag bottom is beautiful, strong and not easy to tear apart. And advanced electric eye device can make sure that printing pattern is at correct position, so beautiful plastic bags can be produced.
Our company is a professional double layer plastic bag making machine manufacturer in China. We offer a wide range of products, including heat cutting plastic bag making machine, soft loop handle bag making machine, vertical slitting machine, and much more.
