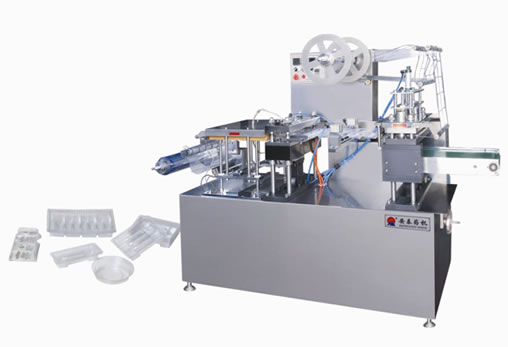

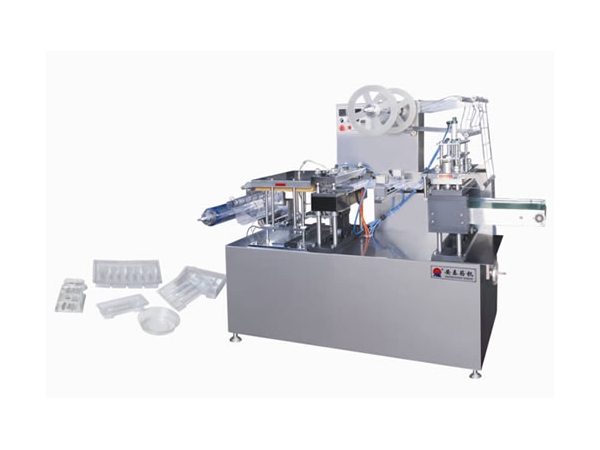

As a type of vacuum forming machine, the auto plastic blown and forming die-cutting machine ZPQ-250 is a newly developed machine by our research team to meet the needs of today's market.
The vacuum forming machine is characterized by easy operation and low energy consumption. It is suitable for forming foodstuffs, medical equipment and the trays for electronic elements. The vacuum forming machine has integrated multi functions like conveyor, blister forming, plate punch and counting displaying.
Technical Specifications
| Cutting Speed (times/min) | 6-35 |
| Power | 380V/220V/50Hz |
| Feeder Stroke (mm) | 40-160 |
| Max. Forming area (mm*mm) | 230x180 |
| Max. Forming Depth (mm) | 50 |
| Forming Upper Heater Power (kw) | 1.5 |
| Forming Lower Heater Power (kw) | 1.5 |
| Motor Power (kw) | 1.5 |
| Air Pump Pressure (Mpa) | 0.4-0.6 |
| Air Pump Volume (m³/min) | ≥0.36 |
| Packing Materials Width (h×w) | Medical PVC (mm x mm): 0.10~0.60 x 250 |
| Overall Dimensions (mm x mm x mm) | 1650×550×1550(L×W×H) |
| Weight (kg) | 750 |
