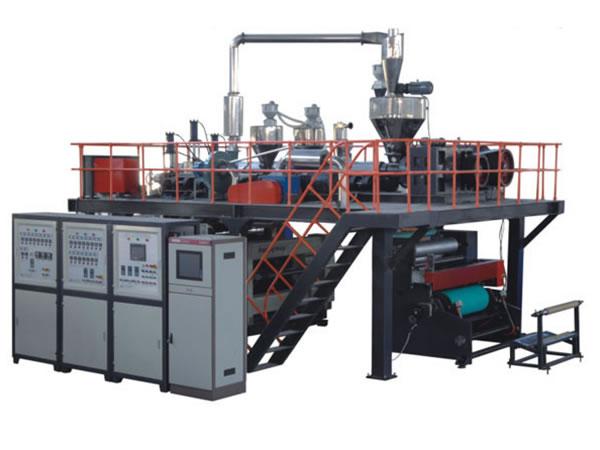

This series of three layer stretch film co-extruder is our latest generation stretch film production line and features a high line speed, allowing for a high production output at a maximum of 400kg/h. with 3 sets screws design, this plastic film extruder has characteristics such as low noise, and stable running. It is made up of the extruder, traction unit, edge trimming unit, PLC controlled winding unit, and finished roll automatic changing unit.
Technical Data:
| Model | JDCPE / 120 - 60*2-1000 |
| Screw diameter | Φ120 / Φ60 / Φ60mm |
| Length / diameter ratio | 34: 1 |
| Finished film width | 1000mm (500*2 rolls) |
| Max. linear speed | 350m/min |
| Max. Output | 290kg/h |
| Main motor power | 110kw/22kw/22kw |
| Total power | 306 kw |
| Overall Dimension | 7290mm*5650mm*4000mm |
| Power supply | 380 / 3 / 4 / 50 (Volt / Ph / Line / Hz) |
