Features

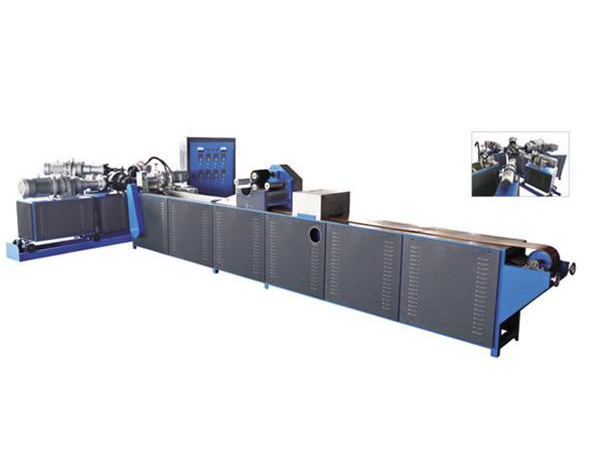

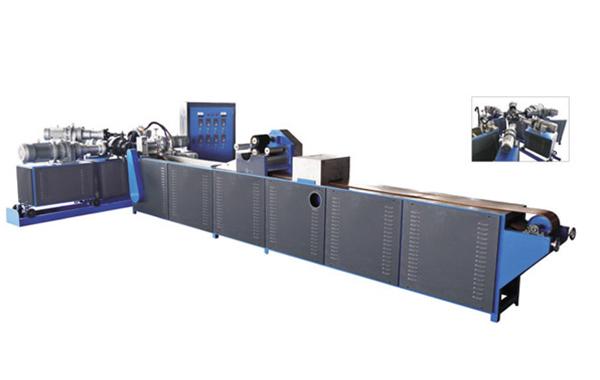

The co-extrusion Line utilizes an inverter system to control the equipment, so the strip output is stable. The produced strips exhibit homogeneous color.
Specification
5CB-90、48、35、35、35
Model | CB-90 | CB-48 | CB-35 | CB-35 | CB-35 |
Screw diameter (mm) | 90 | 48 | 35 | 35 | 35 |
Motor power (kw) | 15 | 4 | 2.2 | 2.2 | 1.5 |
Output(kg/h) | 15-130 | 4-35 | 2-15 | 2-15 | 2-15 |
Machine size(mm) | 1850*670*1100 | 1300*500*1000 | 1050*450*950 | 1300*450*1200 | 1050*450*850 |
Maxium rubber strip width(mm) | 50*2 | ||||
Auxiliary motor power(kw) | 0.75*2 | ||||
Conveyor size (mm) | 5400*800*1300 | ||||
5CB-75、48、35、35、35
Model | CB-75 | CB-48 | CB-35 | CB-35 | CB-35 |
Screw diameter (mm) | 75 | 48 | 35 | 35 | 35 |
Motor power (kw) | 7.5 | 4 | 2.2 | 2.2 | 1.5 |
Output (kg/h) | 10-100 | 4-35 | 2-15 | 2-15 | 2-15 |
Machine size (mm) | 1850*670*1100 | 1300*500*1000 | 1050*450*950 | 1300*450*1200 | 1050*450*850 |
Maxium rubber strip width (mm) | 38*2 | ||||
Auxiliary motor power (kw) | 0.75*2 | ||||
Conveyor size (mm) | 5400*800*1300 | ||||
5CB-60、35、35、35、35
Model | CB-60 | CB-35 | CB-35 | CB-35 | CB-35 |
Screw diameter (mm) | 60 | 35 | 35 | 35 | 35 |
Motor power (kw) | 5.5 | 2.2 | 2.2 | 1.5 | 1.5 |
Output (kg/h) | 6-60 | 2-15 | 2-15 | 2-15 | 2-15 |
Machine size (mm) | 1850*670*1100 | 1300*500*1000 | 1050*450*950 | 1300*450*1200 | 1050*450*850 |
Maxium rubber strip width (mm) | 30*2 | ||||
Auxiliary motor power (kw) | 0.75*2 | ||||
Conveyor size (mm) | 5400*800*1300 | ||||
