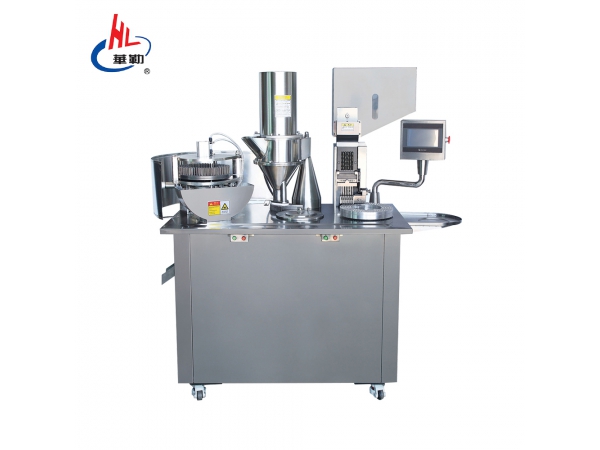

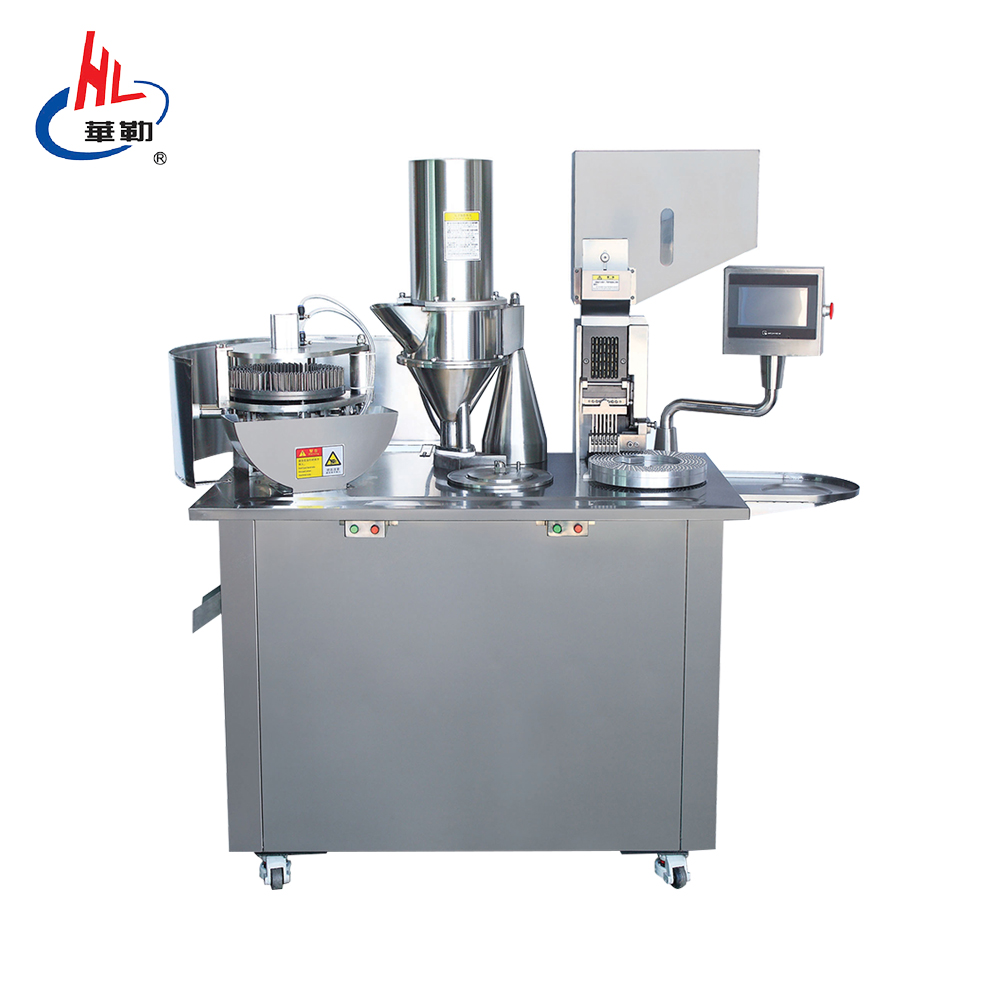

The DTJ-T Capsule-Filling Machine is a new type of medicine filling machine with novel structure and attractive appearance. Under both electrical and pneumatic control and equipped with and automatic electronic counter and computer-controlled speed-adjusting device, the machine can accomplish the positioning, separation and locking etc. of capsules. In place of manual capsule-filling, it can reduce labor intensity and raise productivity. Its filling amounts are accurate and up to sanitary stan
Capsule size | No. 000#-3# |
Capacity(capsules/h) | 10000-22500((Depending on the operation of skilled workers) |
Power supply | 380V 3Pharse 4.0kw |
Vacuum pump | 40m3/h |
Capacity of air compressor(is not included, prepared by customers) | 0.03m3/min 0.7Mpa |
Overall dimensions:(mm) | 1140×700×1630 |
Packing dimension:(mm) | 1650×800×1750 |
Net weight:(Kg) | 430 |
Gross weight:(Kg) | 500 |

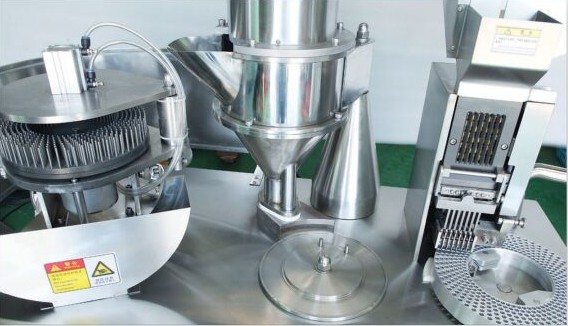

The machine consists of capsule-feeding, U-turning and separating mechanism, material medicine-filling mechanism, locking device, electronic speed varying and adjusting mechanism, electrical and pneumatic control system protection device as well as accessories such as vacuum pump and air pump. China machine-made capsules or the imported are applicable to this machine, with which the finished product qualification rate can be above 98%.
