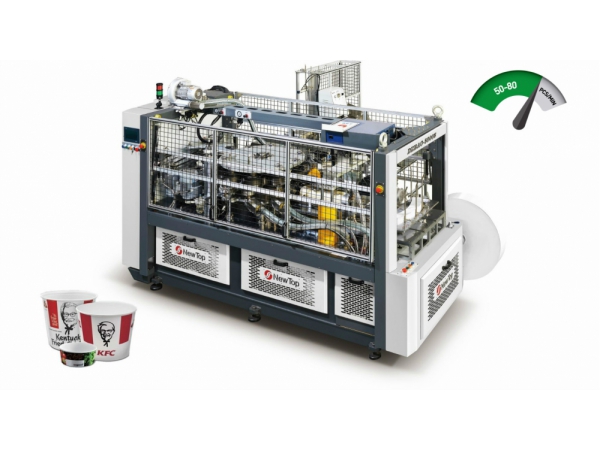

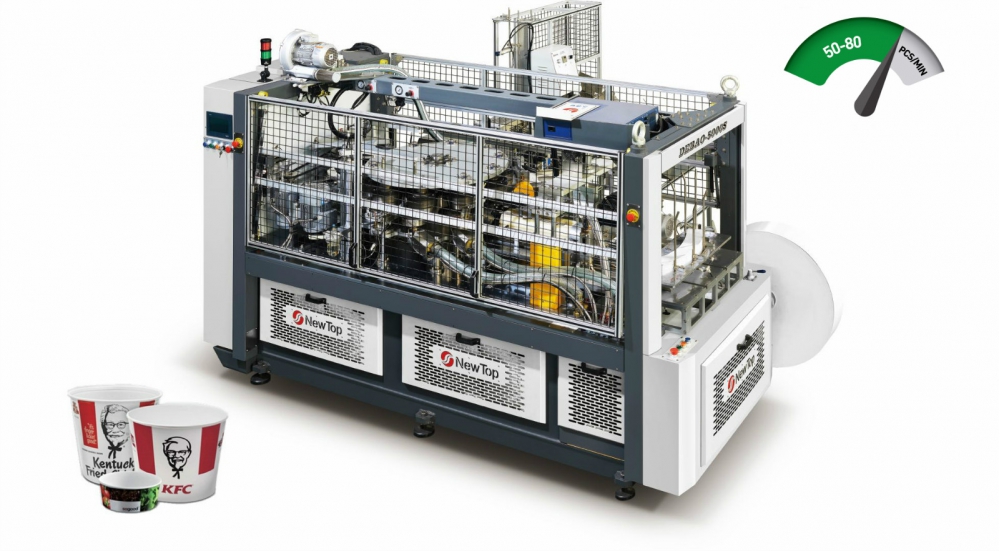

DEBAO-5000S HIGH SPEED INTELLIGENT PAPER CUP SLEEVE MACHINE

Inquiry

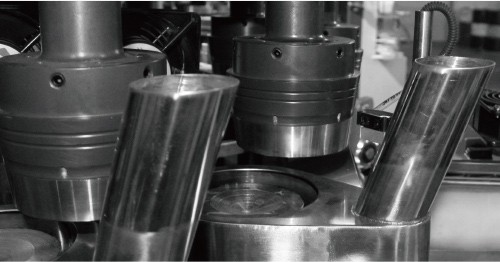

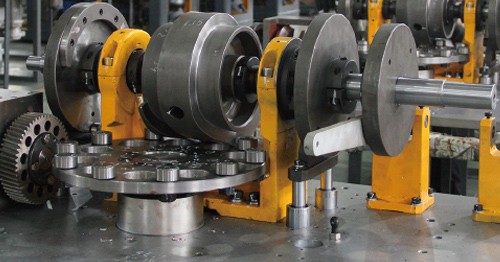

DEBAO-5000S middle speed paper bucket/salad bowl machine using desktop layout, the mold and the transmission part are isolated. The transmission parts are under the table rack in the machine body, automatic spray lubrication; the longitudinal axis transmission structure, barrel type cylindrical indexing mechanism and the gear drive, to ensure the operating life and stability of the whole machine. The table set the mold, easy cleaning and maintenance, to ensure the quality and hygiene products. PLC is used to control the whole electrical, photoelectric tracking and monitoring, servo feeding.

Production Efficiency

1.Production output up to 36,000 cups per shift (8 hours), up to 2.8 million cups per month (3 shifts);

2.Percentage of pass is higher than 99% under normal production;

3.One operator can handle several machines at the same time.

Intelligent control system

1, multi-model frame. Use the simple window prompt to guide, select the set model.

2, flexible parameter settings. You can back up, restore, or restore a parameter to a factory. You can also modify the parameters manually in detail.

3, flexible encoder origin settings and direction automatic settings and fault self-test. Encoder hardware installation does not need to consider the location, you can simply set the software.

4, automatically configure the parking bit, less than one lap fast low down. When configured, the machine automatically calculates the inertia distance of the machine, at least one step faster than the position after deceleration.

5, the system of key station sensor signal automatic calculation and identification. Through a simple operation to start the button can be encountered in forming failure, the system automatically tracking the signal according to the sensor, the mold quickly stopped in the middle of the two heaters.

6, stop the cup automatically removed. After the machine stops abnormally, the system will automatically remove the heater and the bracket position due to the heater burned and the adhesive is not strong cup.

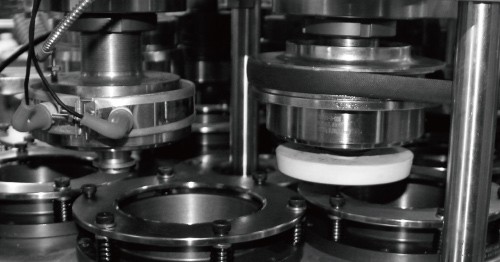

7, heating system intelligent temperature control. Through the PLC PID control temperature, the user simply select the paper manufacturer, weight, single / double PE, the system will automatically set the corresponding target temperature, and the machine speed changes when the target temperature automatically adjusted. The user can also customize the target temperature control curve.

8, visual system flaw detection. Automatic identification of paper cup shape, internal, bottom flaws, automatic removal. Unique algorithm, light gray stain recognition is accurate and stable. A key to quickly set the parameters, but also can modify each parameter in detail. The system supports internal network monitoring output report.

9, hardware monitoring system. Plc output points, relays, contactors, plc and touch screen, plc and computer, plc with the expansion of the line real-time monitoring, abnormal alarm in the touch screen prompts the cause of the malfunction. Detailed hardware and software failure information, the user according to the prompts to easily troubleshoot.

10, the system supports remote upgrade. Plc and touch screen through high-speed Ethernet connection, you can modify the plc and touch screen ip address, through NAT or other service providers to remotely upgrade.

Mechanical Quality Guarantee

1.Mechanical parts are guaranteed for 5 years or production reaches 168 million cups, electrical parts are guaranteed for 1 year.

2.All parts on forming table are easy to access for maintenance.

3.All parts under forming table are lubricated by oil bath. Oil should be changed every 4-6 months with specified oil.
