Flexo Printing Machine

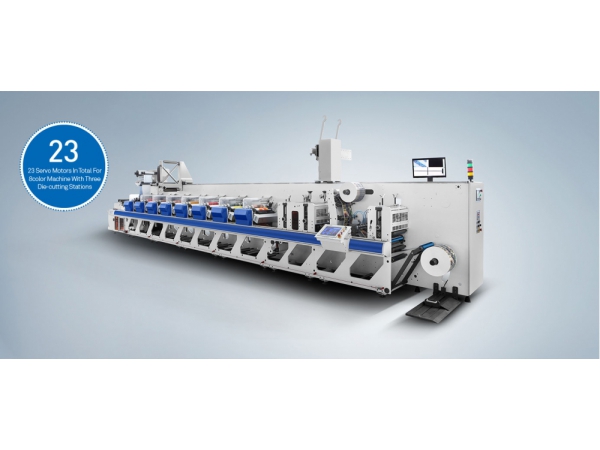

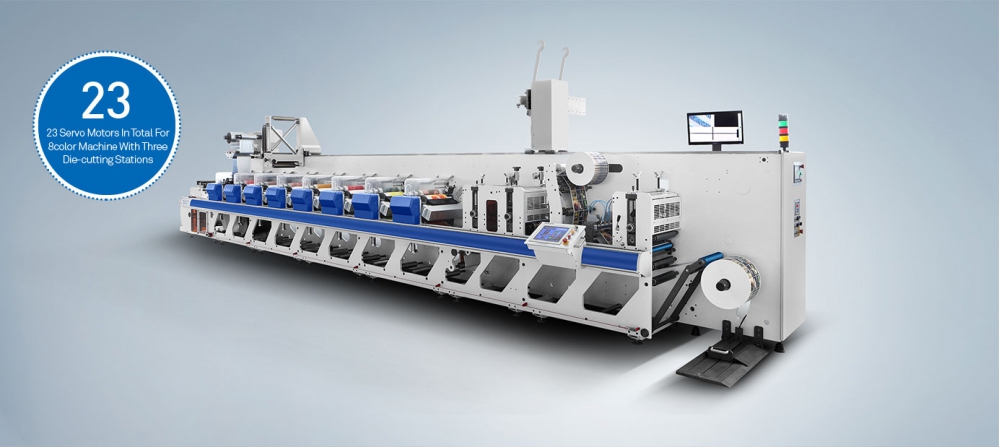

The whole machine adopts the latest servo control system from Germany and each printing unit is driven by independent servo motor. There are 23 servo motors in total for 8-color machine which ensure the accurate registration during high speed running.

Inquiry

Main Features

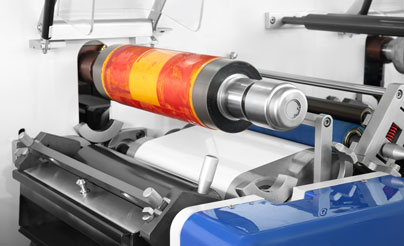

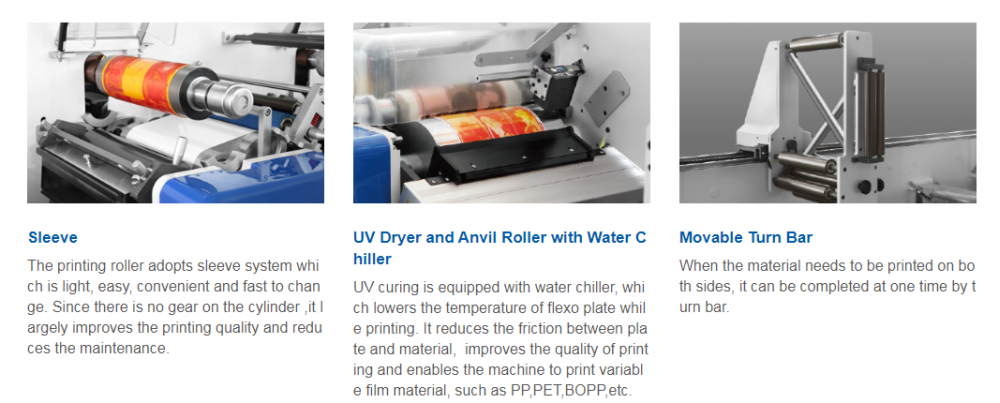

1. The printing roller adopts sleeve system which is light, easy, convenient and fast to change. This type of design largely improves the printing quality and reduces the maintenance
2. Fast and easy pressure adjustment of printing or ink transferring: Printing roller run by bearer, it’s not necessary to adjust the pressure when changing the roller, or at most fine adjustment for special job.

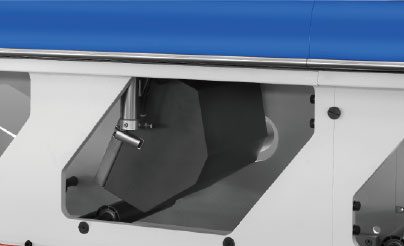

3. Anvil roller equipped with water chiller, which is good for film material.

4. Suitable for printing variety film material, such as PET, OPP, CPP, PP and so on.

Main Technical Parameters

Model	ZJR-350G	ZJR-450G	ZJR-650G
Max. printing speed	180m/min	180m/min	180m/min
Printing color	4-12(Colors)	4-12(Colors)	4-12(Colors)
Max. printing width	350mm	450mm	650mm
Max. web width	360mm	470mm	670mm
Printing repeat length	Z76-190	Z76-190	Z96-230
	(241.3mm-603.25mm)	(241.3mm-603.25mm)	(304mm-730.25mm)
Max. unwinding dia.	900mm	900mm	1000mm
Max. rewinding dia.	900mm	900mm	1000mm
Dimensions(L×W×H)	10.83m x 1.56m x 1.52m	10.83m x 1.68m x 1.52m	10.0m x 1.88m x 1.56m
(For 8 colors,3 die cutting stations)			This model without die cutting unit
