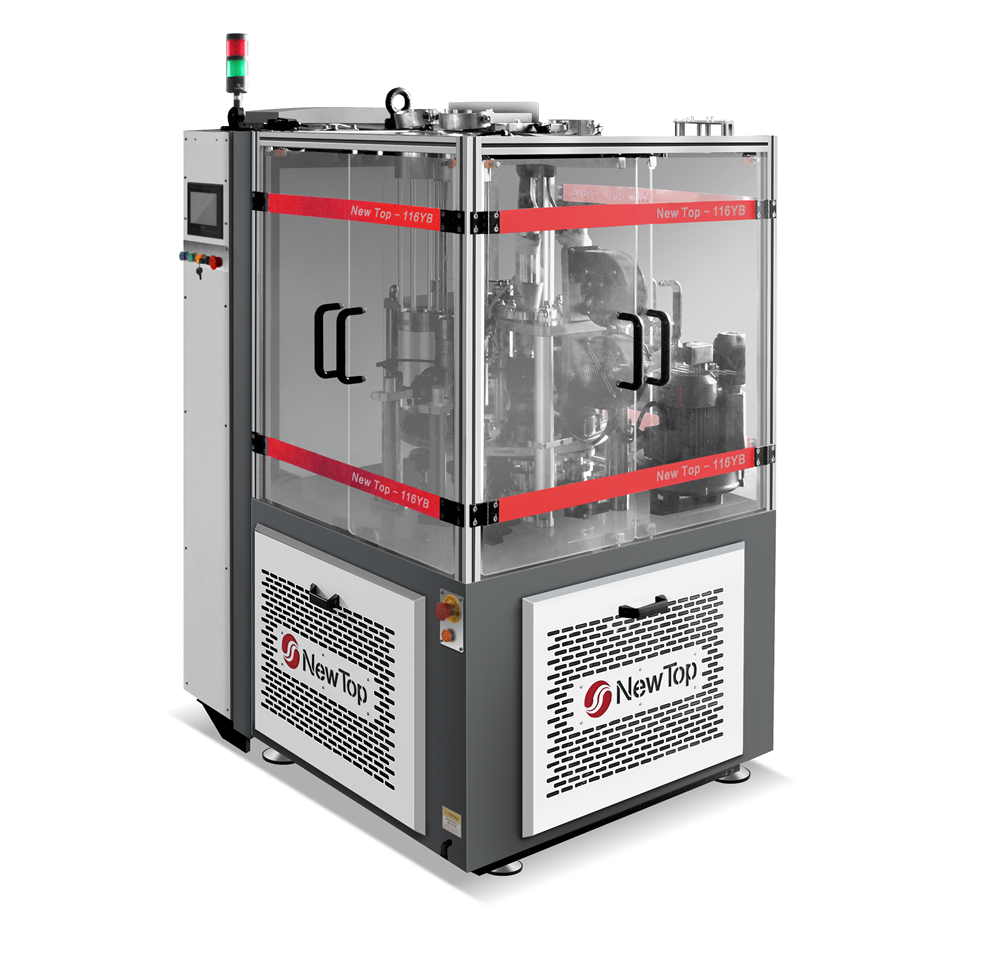

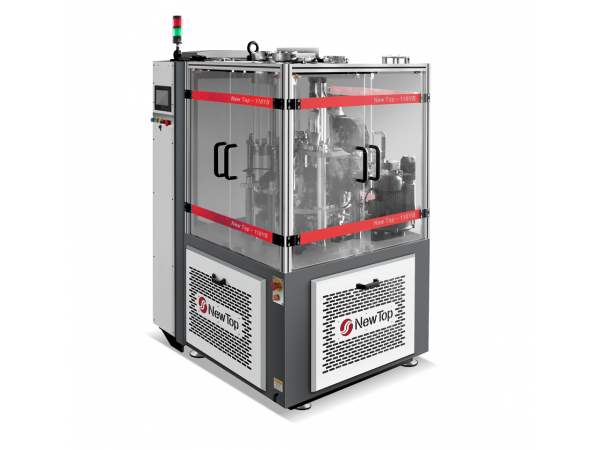

NewTop-116YB paper cup rim flattening machine adopts tabletop layout, which isolates the flattening parts and transmission parts. All the transmission parts are installed in the main frame under the table and lubricated by grease with intermittent supply automatically. The upper devices are positioned around the indexing turret based on the forming process. The machine is controlled by PLC, the whole process is monitored by photoelectric sensors. This machine is good for flattening Ø60 - Ø120mm paper cup rim.
Machine parameter
Model NEWTOP-116YB Weight 1200 kg Size(LxWxH) 1600x1500x2350mm Total power Three-phase, 380V, 6.5KW Air supply
requirement 0.4MPa、0.2m³/min Capacity 80-120pcs/min Product

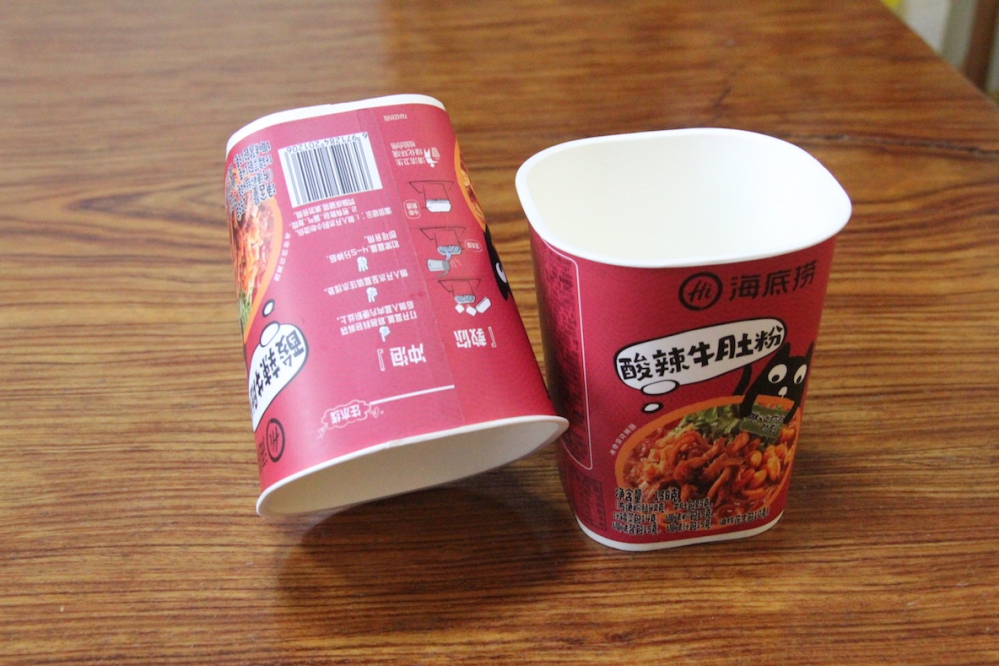

range (D1) φ60-120mm (H)
φ60-135mm (D1) φ50-75mm (h) φ5-12mm
