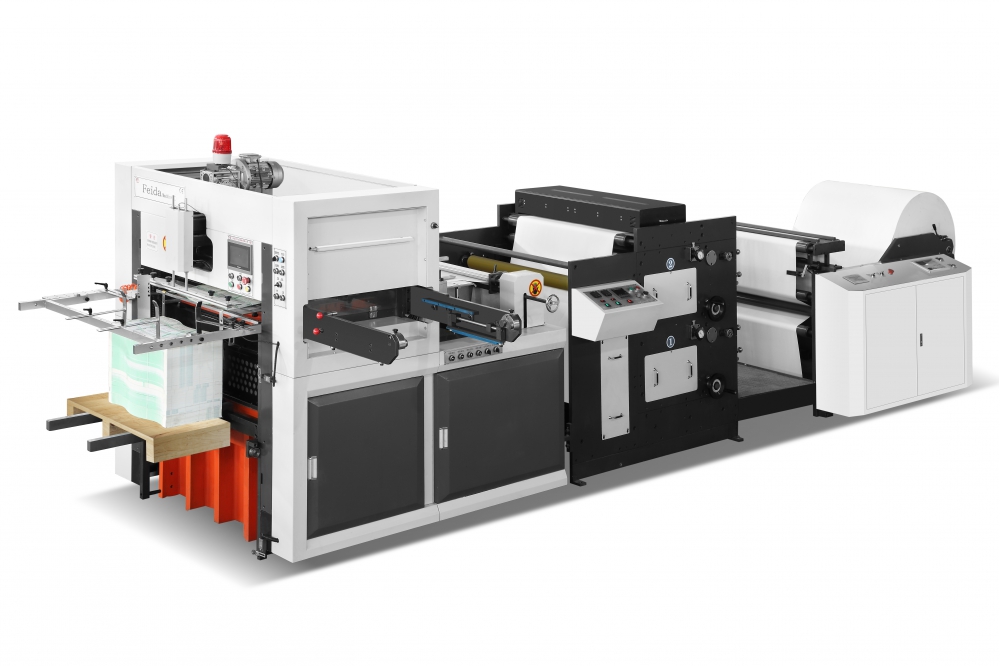

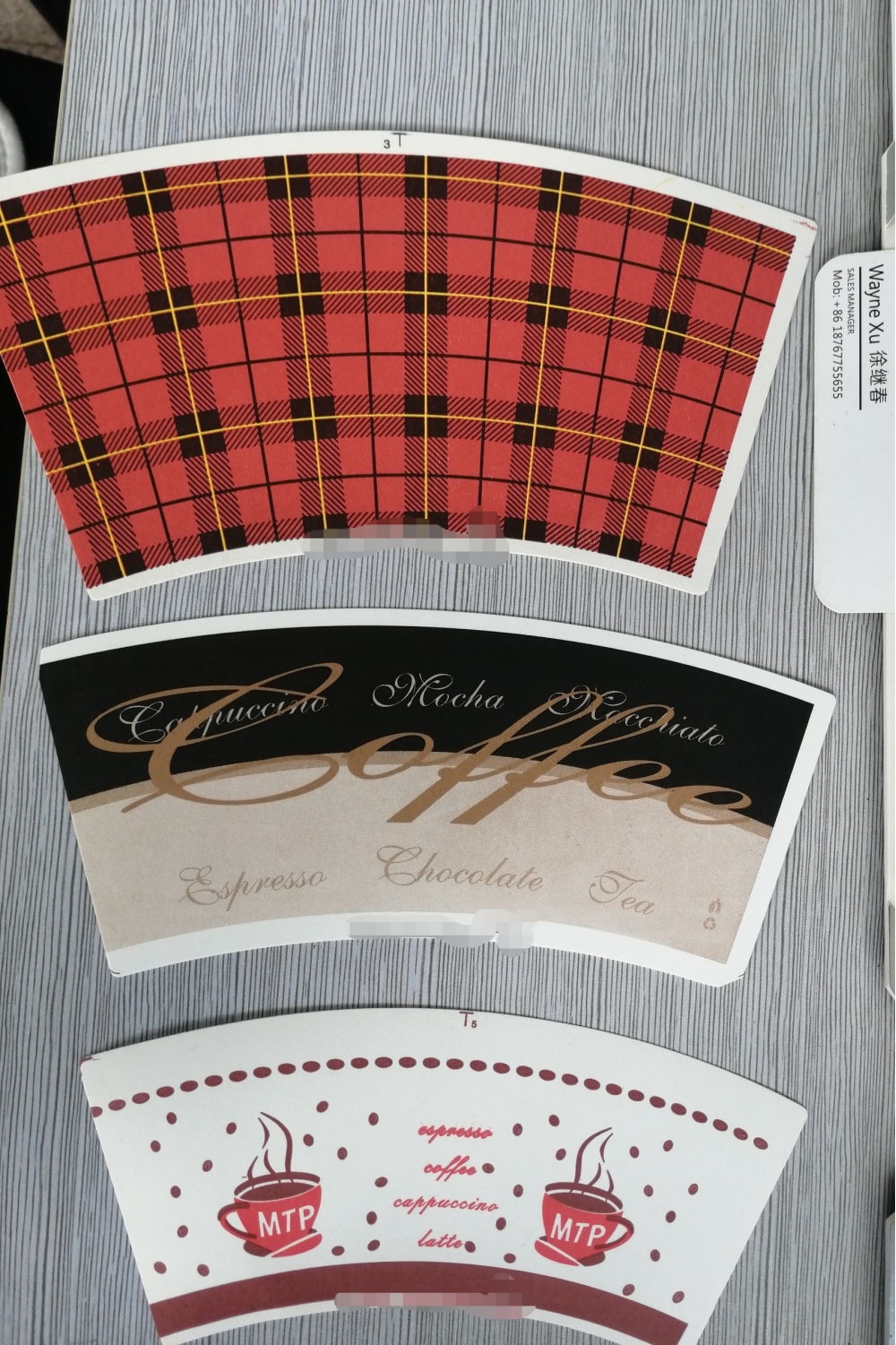

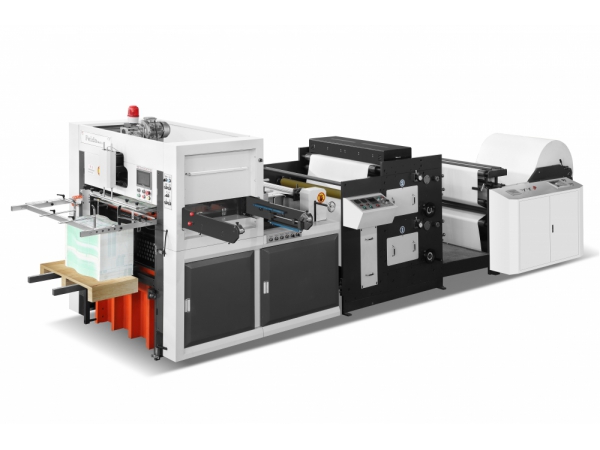

Automatic roll die cutting machine inline flexo printer based on international advanced technology, it’s widely used in paper cup, paper bowl and paper plate and other paper products. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, photoelectric correcting deviation system, centralized oil lubrication, inline flexo printing.


Technical Specification

Model

970

Max Paper Width

950mm

Cutting Precision

±0.20mm

Paper Gram Weight

120-400g/㎡

Production Capacity

100-180times/min

Air Pressure Requirement

0.5Mpa

Air Pressure Consumption

0.25m³/min

Max Roller Diameter

1600mm

Flexo Print Units (IR dryer)

2 - 6 Colors

Web Guiding

1

Printing Repeat Length

10” - 22.5”

Gear Pitch

1/8” (3.175mm)

1) Adopt the anilox roller to spread ink.

2) Unwinding tension is controlled by automatic tension controller from Japan Mitsubishi.

3) Each printing unit adopt 360°for registration.

4) Each printing unit have one IR dryer

5) The rubber roller can break away automatically while parking, and run at a low speed in order to avoid ink being dry.

6) The main motor is adopted the import stepless regulation of frequency conversion.

7) Web guiding, printing, IR drying and punching can be finished in one process
