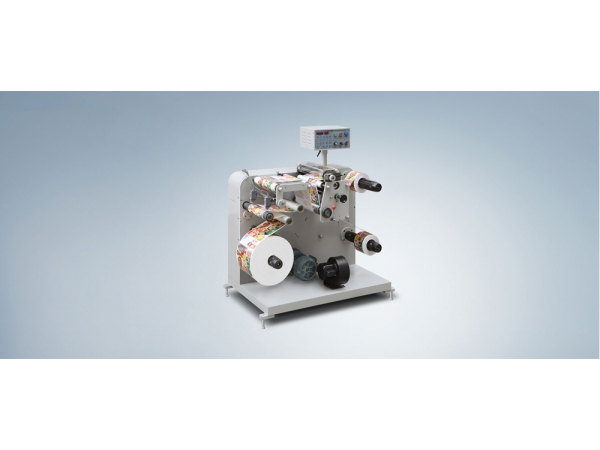

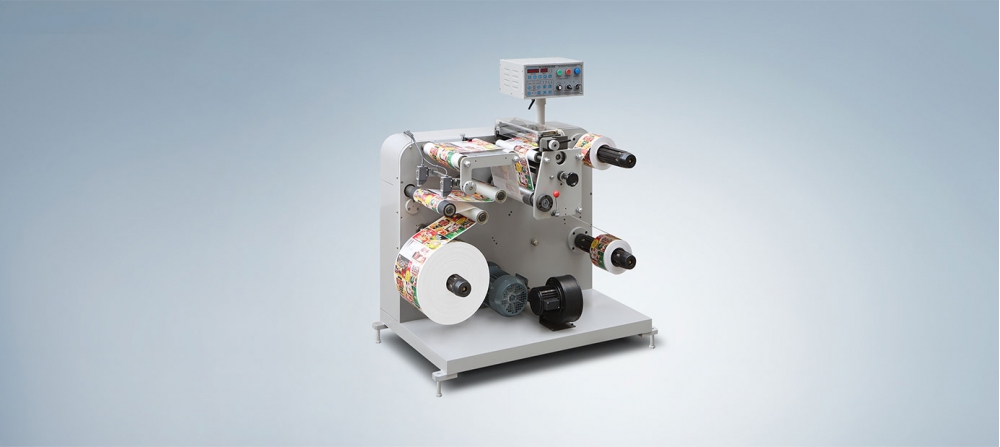

DK-320G slitting machine is used for narrow web slitting. It has the function of meter counting, label counting and pre-set stopping, there are two sensors to do the web-guiding.This machine is very compact structure, faster speed, high efficient, easy operation, accurate slitting and steady running.
Main Technical Parameters
Model | DK-320 |
Slitting speed | 80m/min |
Max.web width | 320mm |
Max.unwinding diameter | 500mm |
Max.rewinding diameter | 480mm |
Dimensions(L×W×H) | 1100x900x1300mm |
Machine weight | (About)480kgs |
