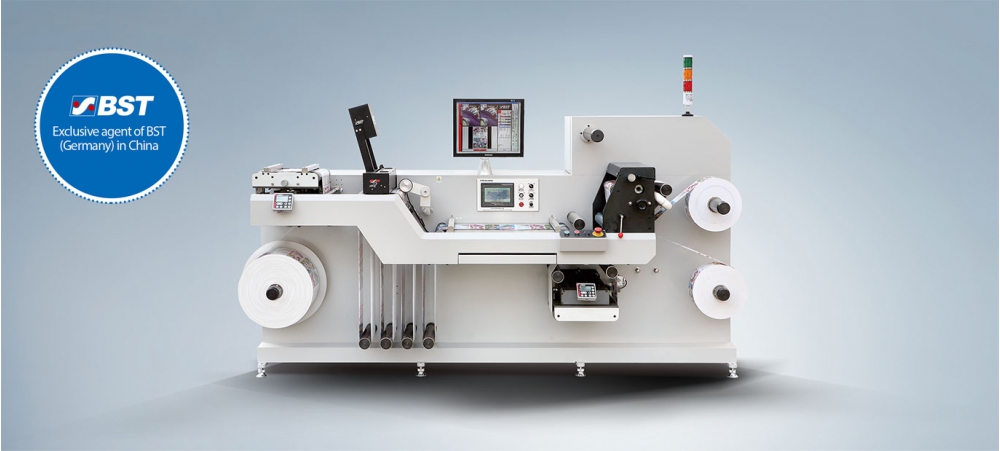

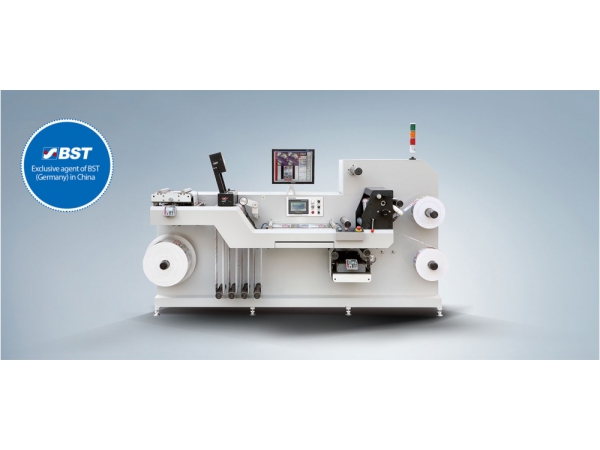

Automatic Label Inspecting Machine

ZB-320 Auto Label inspecting machine adopts latest BST (Germany) inspecting system. It can detect defective labels such as missing label, color differnces, bad registration and scratched labels

Inquiry

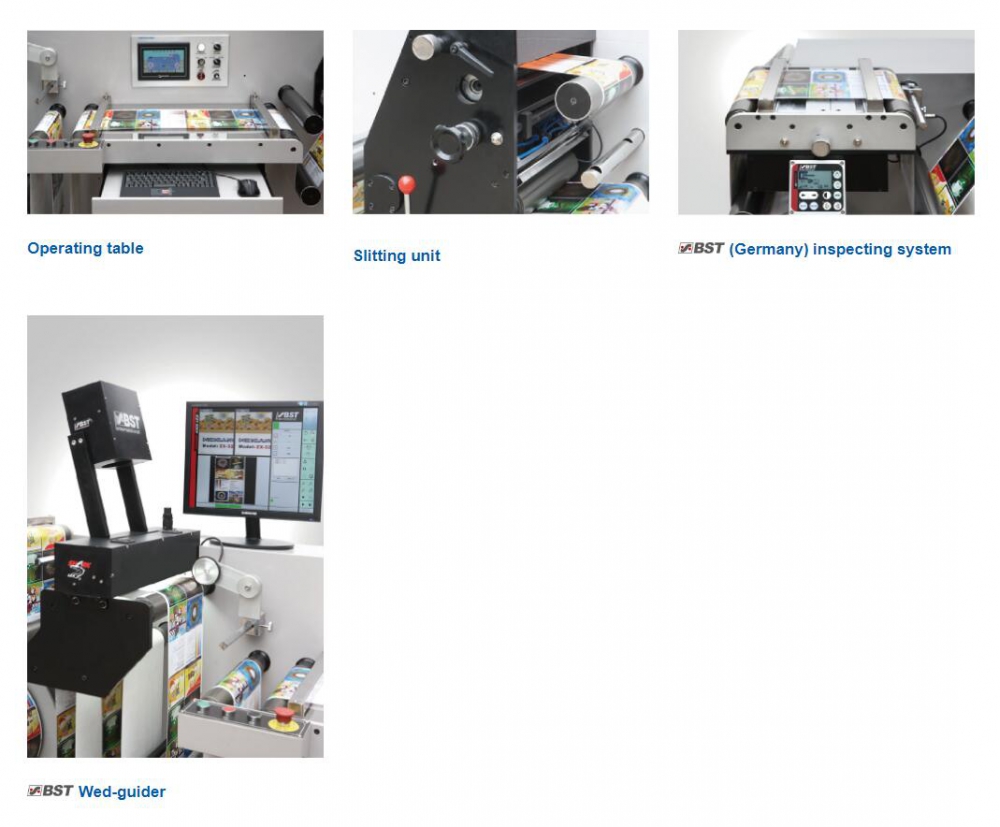

This machine equips with inline slitting unit, has the characteristic of fast speed, high accurate and easy operation, highly increased the final label quality and output.

Main Technical Parameters

Model	ZB-320
Max.inspecting speed	160m/min
Max.web width	320mm
Max.unwinder dia.	650mm
Max.rewinder dia.	650mm
Slitting width	20mm-300mm
Total power	5KW
Power supply	380V / 3P 50Hz
Machine weight	1450kgs
