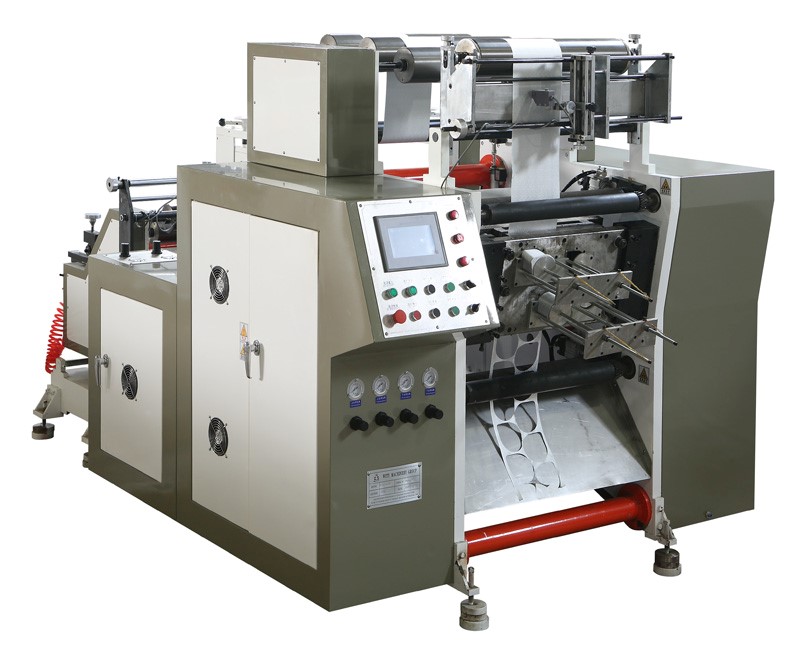

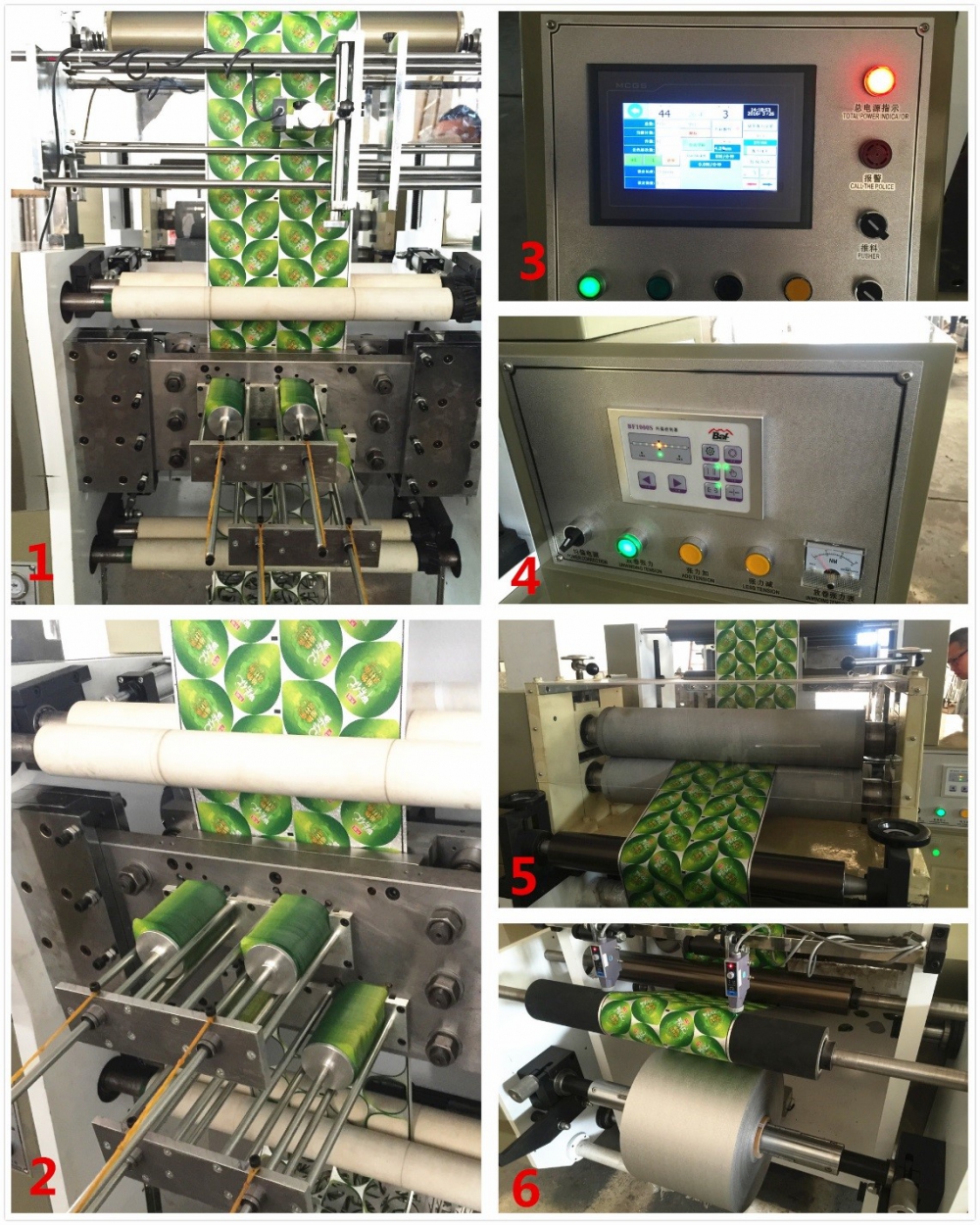

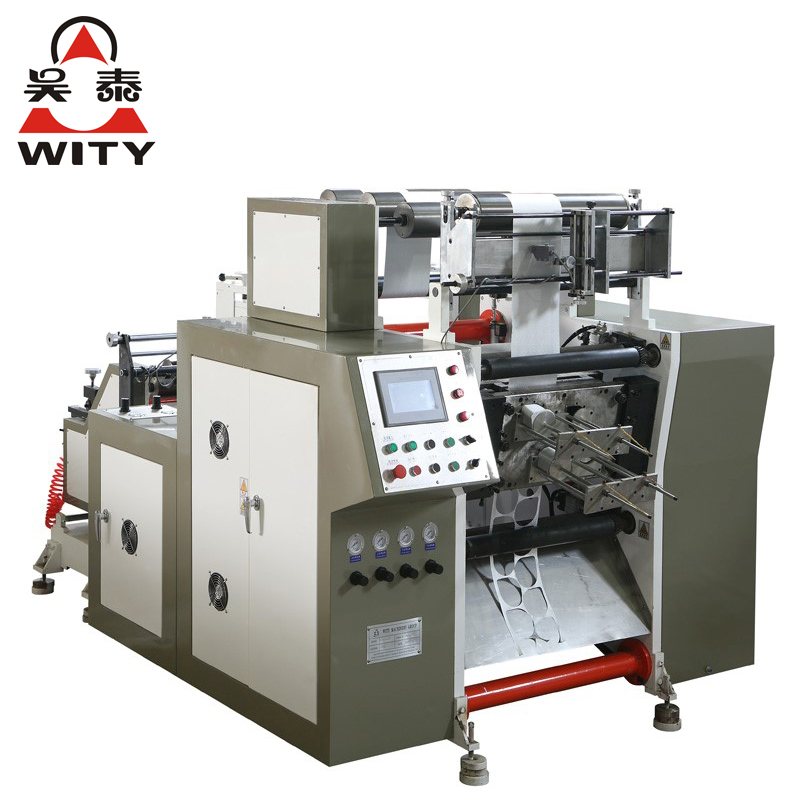

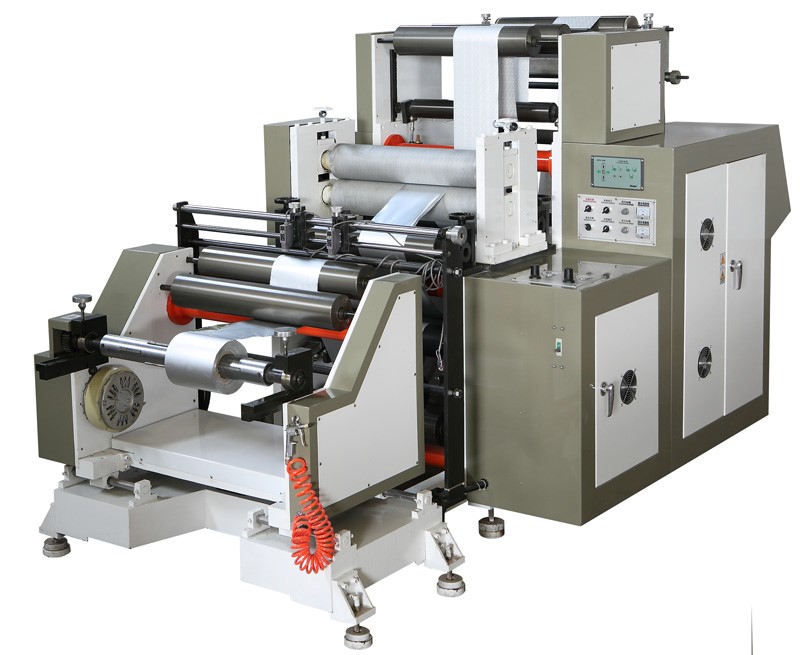

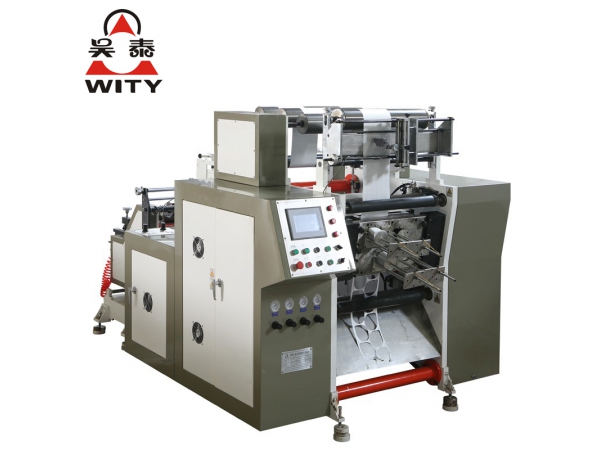

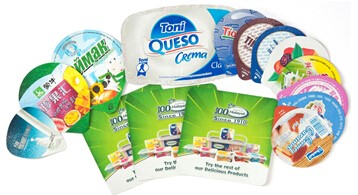

This Punching machine can punch not only aluminum foil but also PE, PP, PET laminated aluminum foil. The punching mold is customized for minimizing the scrap and can be used for a long time.
Specification
Model | MQCB-620C |
Cutting material | Aluminum foil, plastic film, paper (0.035~0.2mm) |
Cutting effective size | 580*320mm |
Mechanical speed | 150times/min |
Max speed | 130times/min |
Unwinding diameter | ¢500mm (3 inch air shaft) |
Traction motor | 0.75kw frequency convention motor |
Mold driven motor | 2.2kw frequency convention motor |
Length control motor | 2kw servo motor |
Driven style | synchronous belt |
Precision | ± 0.5mm |
Web-guiding accuracy | ± 0.5mm 120mm |
Guiding roller | ¢ 80x620mm hard AL alloy HV700 |
Mechanical structure | 40mm thickness steel plate |
Working power | 380V/3P/50Hz 5 wires |
Total power | About 7kw |
Machine weight | About 2000kg |
Overall dimension | 1950*1800*1700mm |
