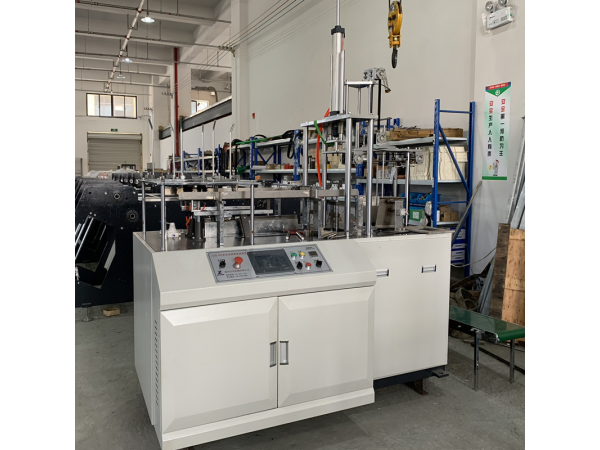

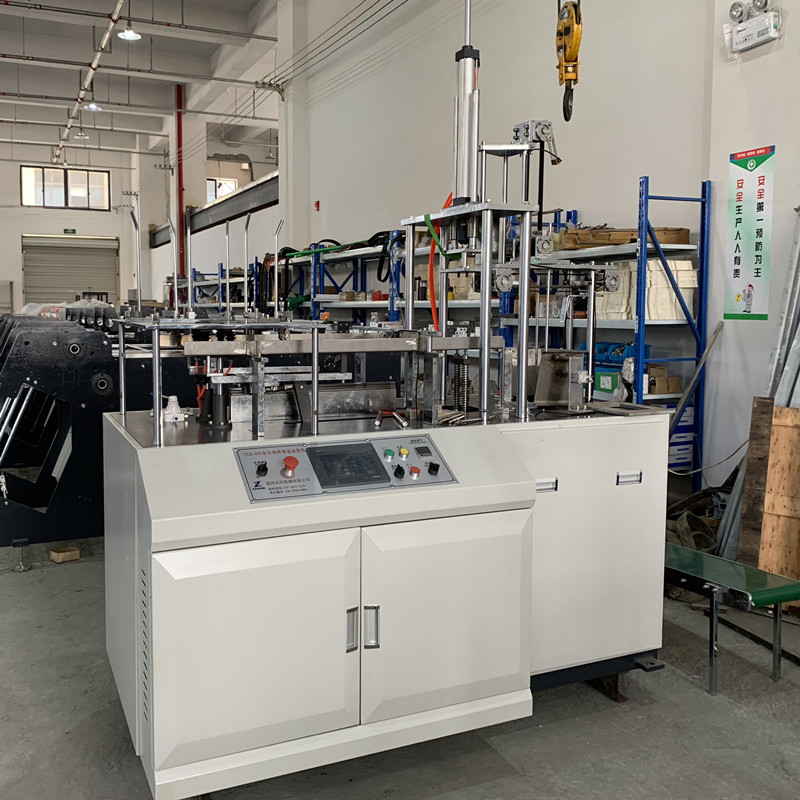

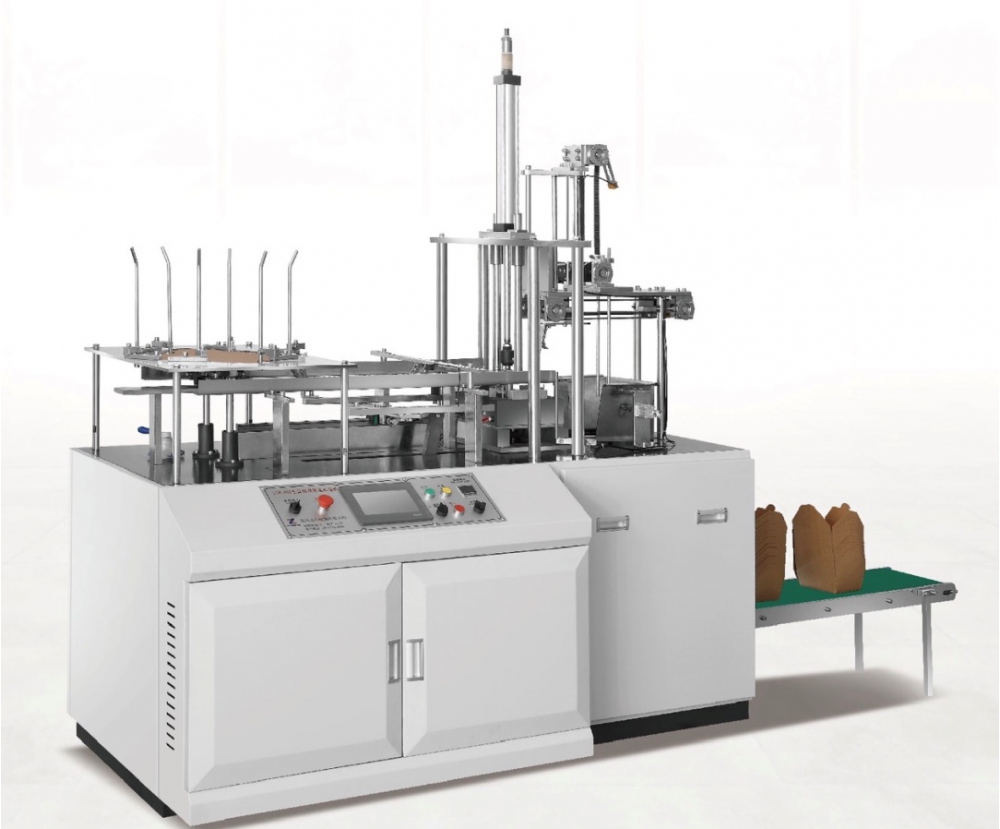

Machine introduction:

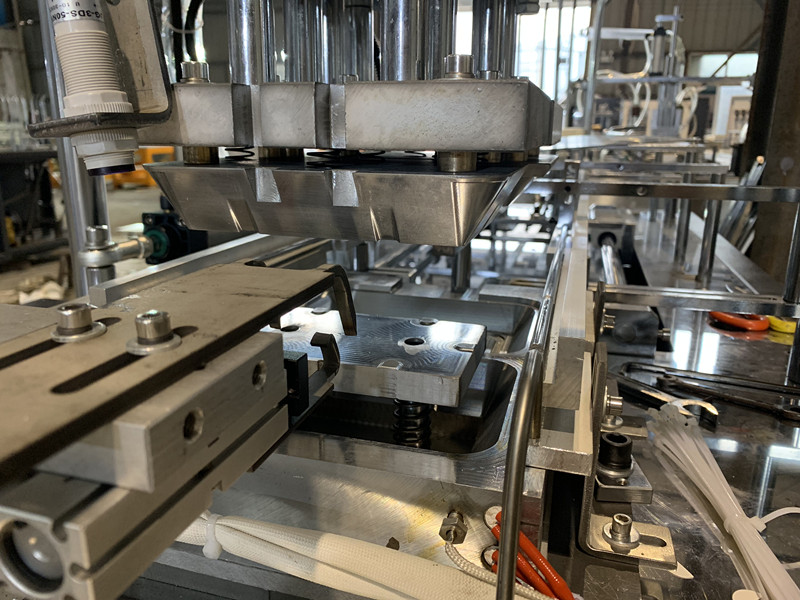

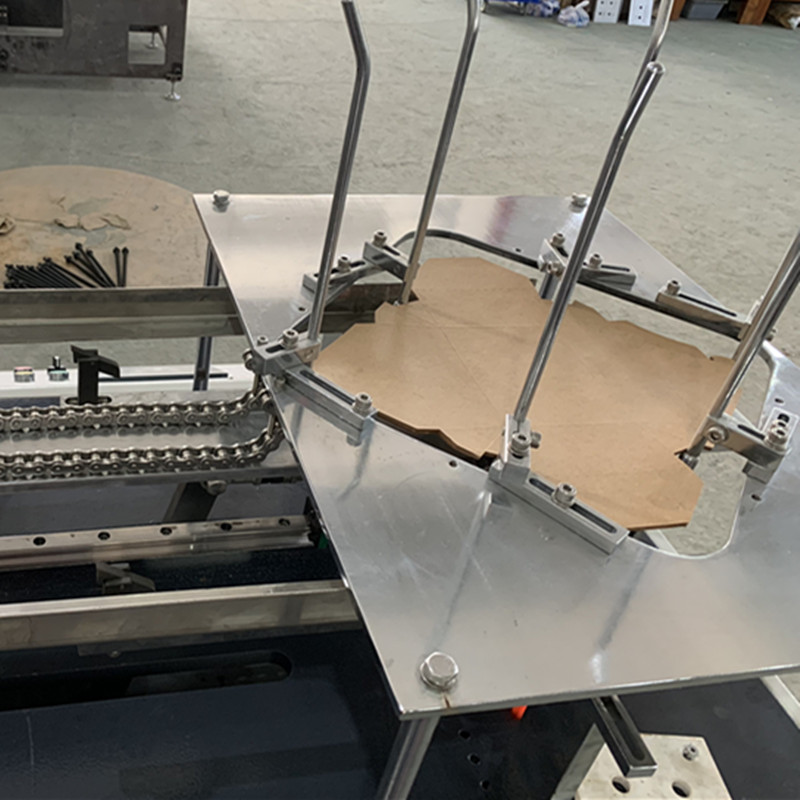

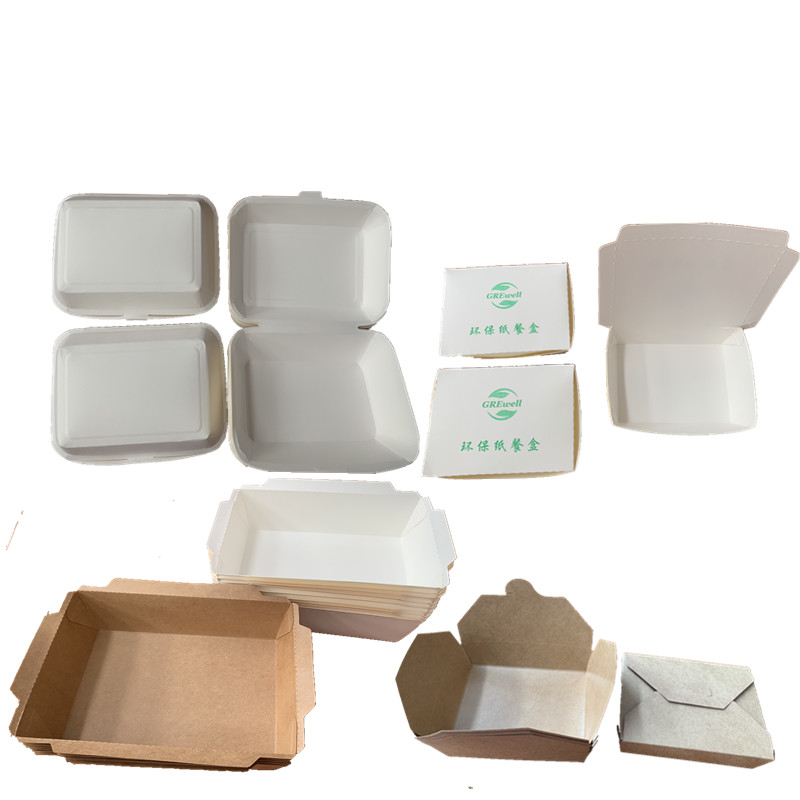

The automatic carton thermoforming machine is a fully automatic paper forming machine with the advantages of high speed and convenient operation. This model uses a self-contained hot air generator for single PE coated paper. It is used to produce single-color disposable paper lunch boxes through automatic feeding, heating (with hot air generating device), hot press forming (four corners of bonded lunch boxes), automatic point collection, and microcomputer control. Paper lunch boxes, cake tray, food packaging boxes, etc. Mechanical transmission, speed, energy saving, stability, and easy operation.

Technical Parameters:

Type	ZX-RB
Production capacity	30-45times/min(Actual production according to product size)
Maximum size:	480 x480mm
E-power voltage	380V 50HZ (can be changed)
Suitable Material:	200-400g/m2 PE (PE Coated paper)
Total Power:	3KW
Total Weight:	0.7T
Overall Dimension:	1550 x 1350 x 1800 mm
Working Air Source:	Air pressure 0.4-0.5Mpa (Need to buy compressor)

Configuration:

Motor	Main motor	Schneider

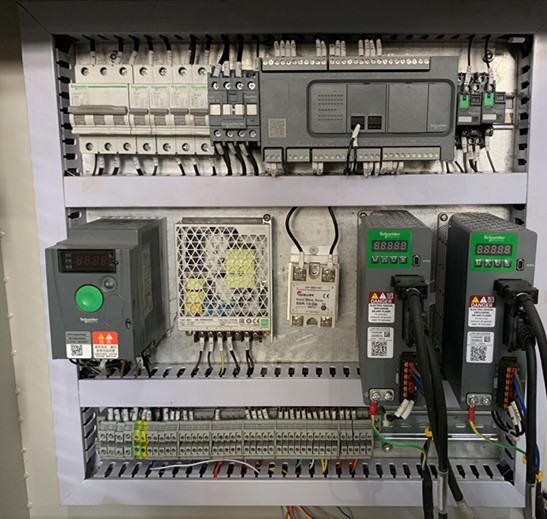

Electrical parts	PLC	Schneider
	Frequency converter	Schneider
	Photoelectric switch	Schneider
	AC contactor	Schneider
	Breaker	Schneider
	Start switch	Schneider
	Temperature table	Yatai
Pneumatic	Main cylinder	Taiwan Yadeke
	Other pneumatic originals	Made in China
	Bearing	Haerbin
Servo	Motor	Schneider（two）
