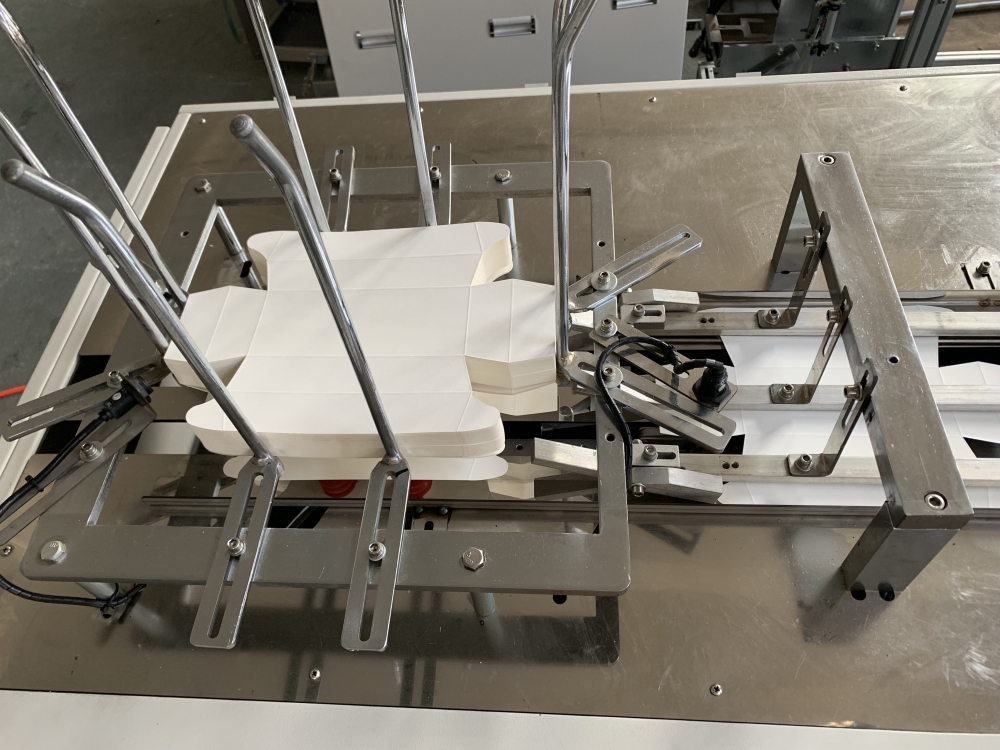

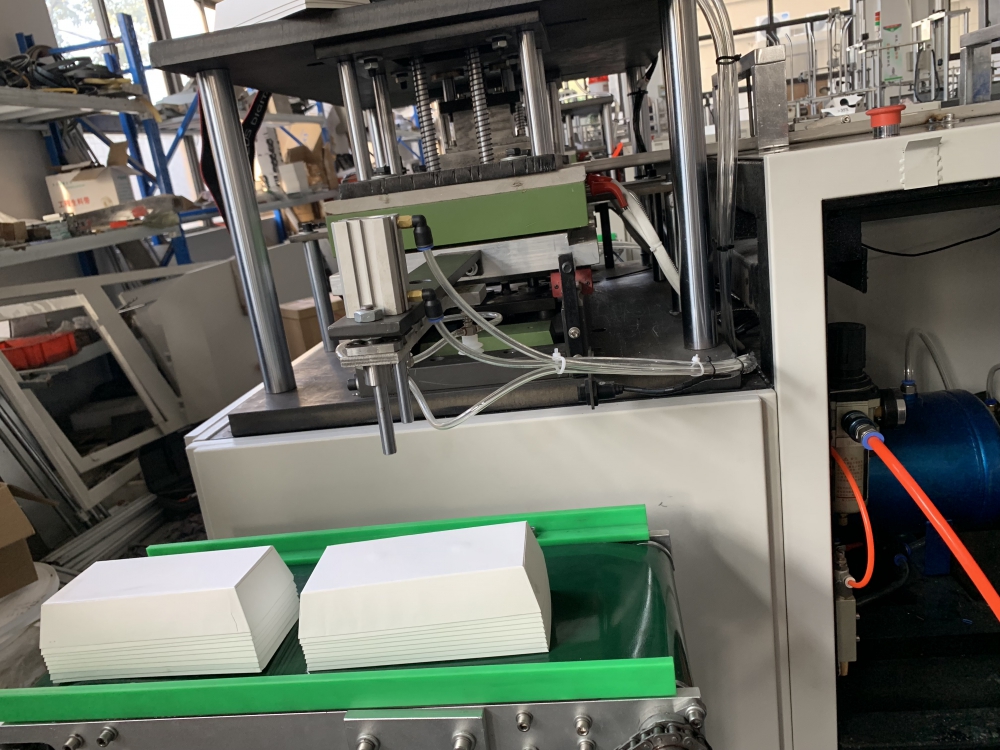

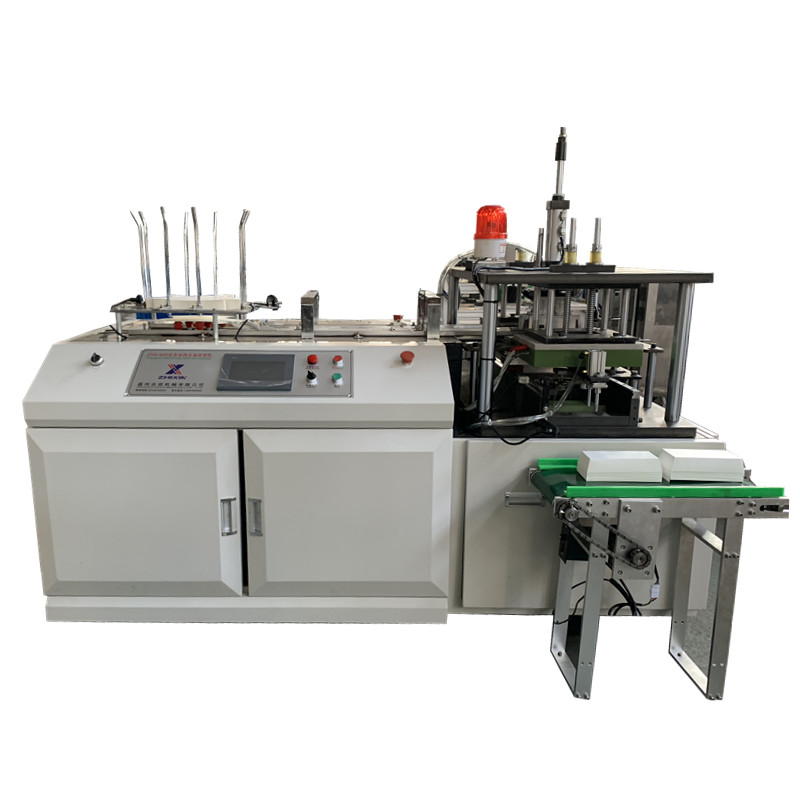

Automatic intelligent thermoforming PE paper box machine. The paper adopts mechanical structure, automatic paper feeding and paper walking, stable and efficient, the first two molds after automatic corner folding heat forming, the product forming adopts aluminum alloy mold, keeping the mold precision while light and durable, the product bonding effect is good, bonding seamless, beautiful and solid box, is the ideal equipment for the production of folding paper box.

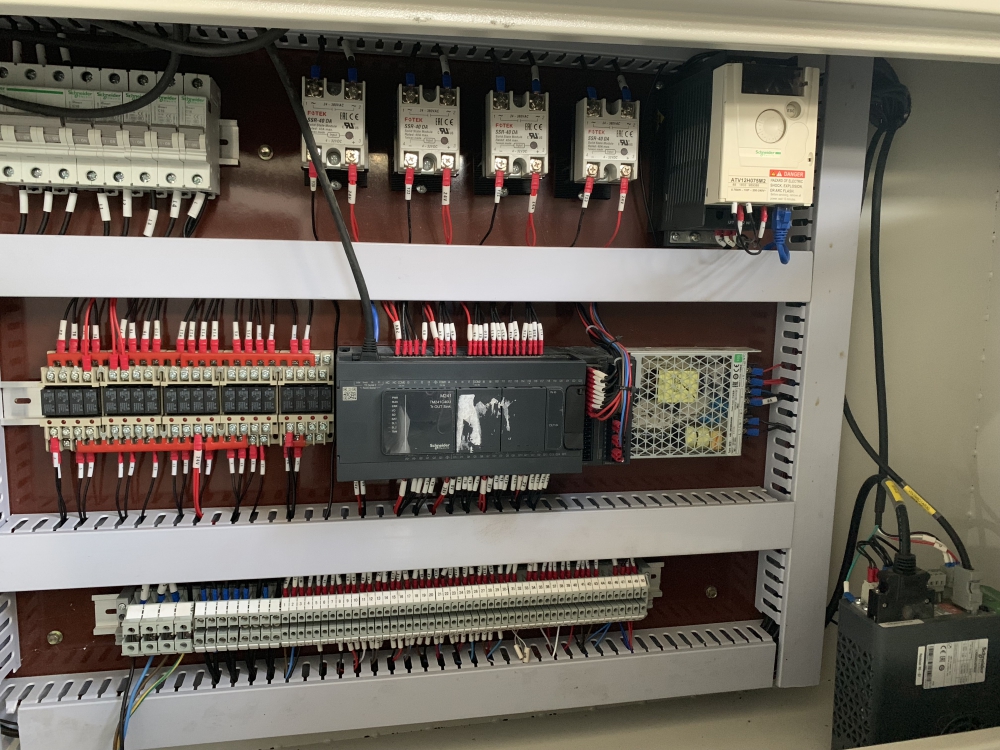

Equipment controlled by microcomputer, from the suction machine, paper feed, angular, molding, to gather the counts are controlled by parameters, electrical and other key components are imported famous brand, to ensure quality, simple operation, the intelligent operation, save labor costs, one person can operate multiple devices, intelligent product is efficient and practical.


Main Technical parameters:

Paper box size

200mm*130mm*40mm

Paper grams

200-400gsm

Paper material

PE craft paper, PE carboard paer

Speed

30-50pcs/min

Power

5KW

Weight

1000kgs

Specifications

1780mm*1860mm*1450mm

Air requirement

0.5Mpa, 0.4cube/min

Cylinder Stroke

150mm

Voltage

380V,50Hz

Other

Customize
