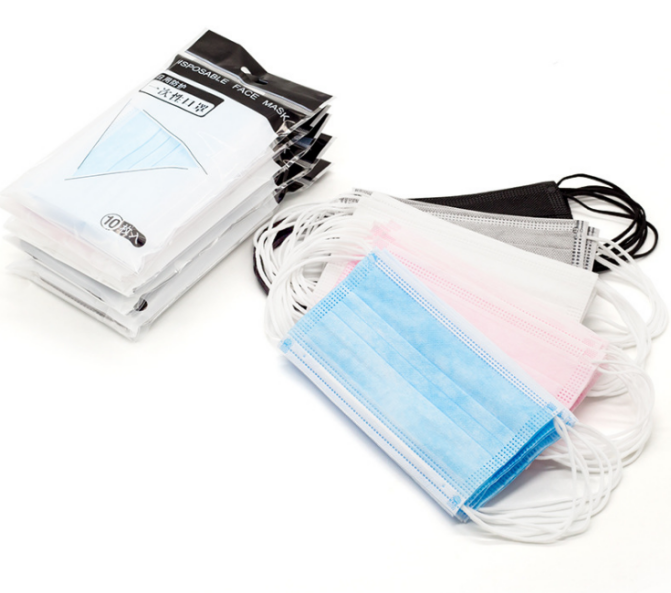

1. Our machinery can produce 1-3 layers of non-woven masks.
Different specifications can be adjusted, the thickness of the mask can be adjusted within a certain range, and the length of the nose wire can be adjusted arbitrarily. Under the condition of changing the mold, non-standard masks of any length can be produced, and single-core nose wire masks can also be produced.
The rubber bands at both ends of the mask are automatically transported and cut, and the welding is firm. It is a device that can complete the earloop welding by a machine at one time. It has high output, low scrap rate, easy operation, and the appearance is made of aluminum alloy.

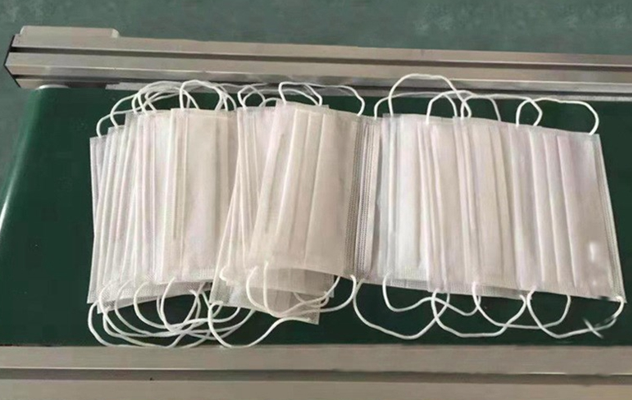

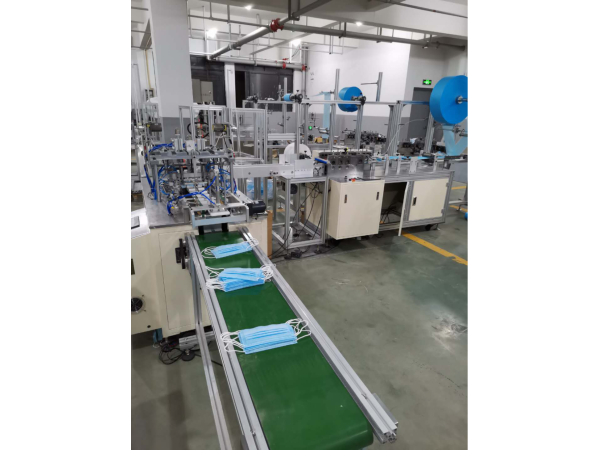

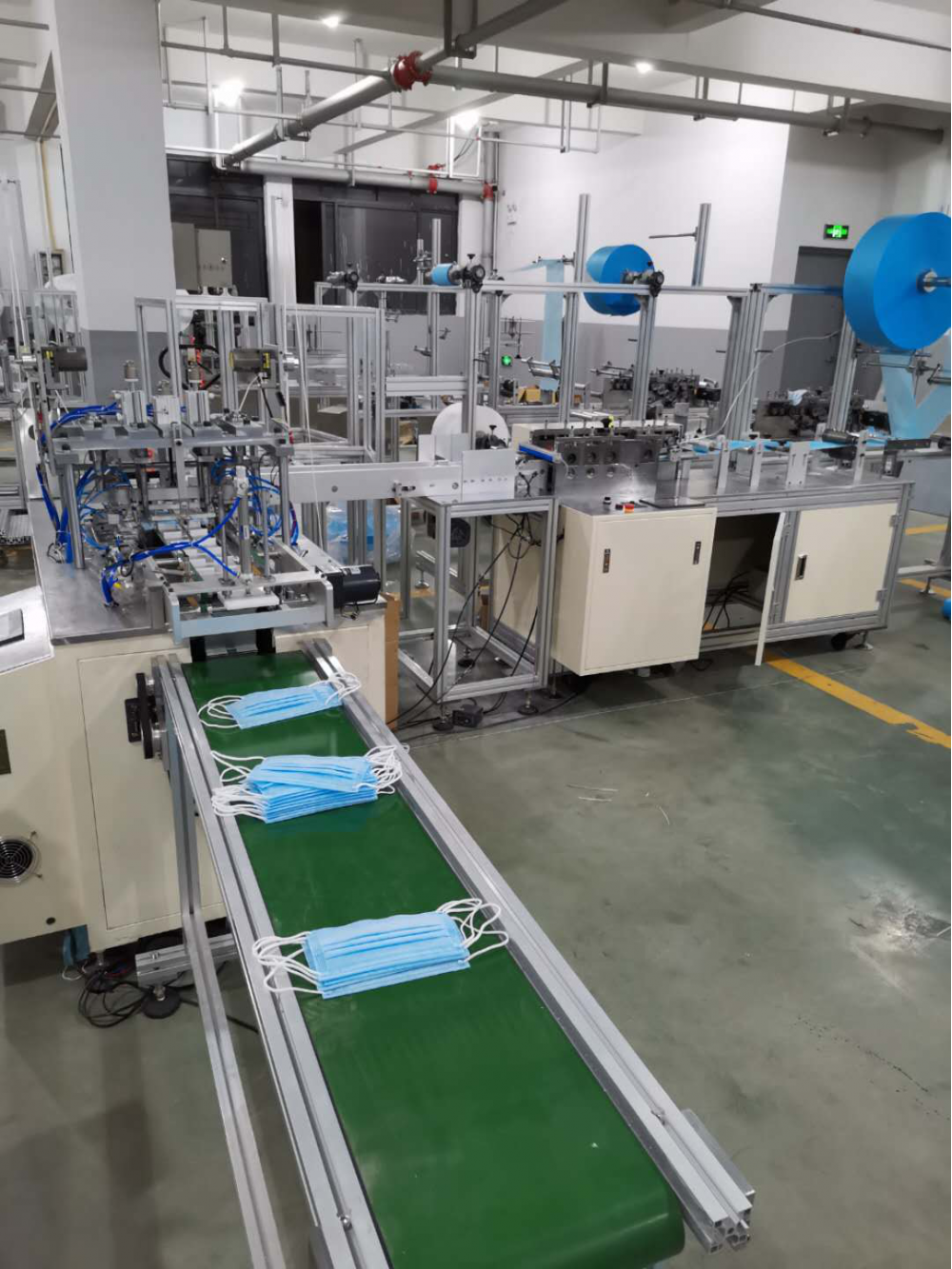

2. The mask body is output by the conveyor belt, the speed can be adjusted, the output is neat, the product quality is stable, the operation is convenient, and the production efficiency is high.

3. The body of machine uses all aluminum profiles, which are neat and beautiful, without welding and painting. The man-machine interface uses touch screen control and digital buttons to adjust the production speed.

4. The high-quality motor made in Taiwan, gear deceleration has brake function, and the noise is extremely low.

5. The mask body forming process uses ultrasonic welding, which has superior performance, high-speed production, and internal spot welding.

6. Our machine has the functions of automatic counting and automatic alarm in case of failure. The back end of the machine can be directly connected to the mask packaging machine.

7. After the equipment is checked and accepted by the customer, it will be packaged and shipped in a fumigated wooden box.
The mask is packed in two wooden boxes, namely: a mask body making machine and an earloop welding machine.
The packaging size of the mask body making machine is: long 2000MM× width 900MM× height 1300MM, and the weight is about 1000KG.

The packing size of the earloop welding machine is: length 1800mm×width 1050mm×height 1600mm, and the weight is about 500KG.

technical parameters:

Power	6kw(220V 3 PHASE 50HZ)
finished product length	173--175 mm
Finished product width	93--95mm
Finished product thickness	1--3 layers（non-woven）
Production speed	40-50 Pcs/Min
Total Weight	800 kg
Host size	2100×600×1200mm（length*width*height）
Unwinding rack size	1700×600×1400mm（length*width*height）
Conveyor belt size	1500×370×800mm（length*width*height）

mask body making machine configuration list：

Name	Remarks	number	producing area
Unwinding device	Mechanical axis	4 bars	China
Broken material detection device	Photoelectric tracking	4	China
Rear folding device	stainless steel	1	China
Mask shaping device	Stereotype	1	China
Mask shaping device	Unwind	1	China
Traction roller	Rear	1 group	China
Ultrasonic embossing wheel	Rear	2	China
Ultrasound	20K	4 sets	China
Folding device	Front	6	China
Traction roller	Front	1 group	China
Ultrasonic embossing wheel	Front	1	China
Ultrasound	25*110mm	1 sets	China
Drum cutter	Front	1 group	China
Automatic stacking device		1	China
Reducer host	1.5KW	1	China
Frequency converter	1.5KW	1	China
Electrical appliances			Japan

earloop welding machine configuration list：

Name	Remarks	number	producing area
Unwinding tray	Aluminized	36	China
Unwinding device	Earloop	2	China
Synchronous motor	Turntable	2	China
Earloop fusion splicer	Special alloy	4 pieces	China
Earloop holder	Special alloy	4 pieces	China
Earloop unloader	Special alloy	4 pieces	China
Hemming discharge device	Non-woven fabric	2	China
Hemming welding device	Special alloy	2	China
Feeding motor		2	China
Ultrasound	20*110mm	3 sets	China
cylinder		11	TanWan
Earloop cutter		2	China
conveyor		1	China
Automatic stacking device		1	China
Automatic conveying device		1	China
computer	PLC	1 sets	Japan
Electrical appliances	Schneider		France
servo motor		1	Japan
Geared motor		1	Japan
sensor		12	Japan
Machine body	Aluminum alloy		China
