Usage

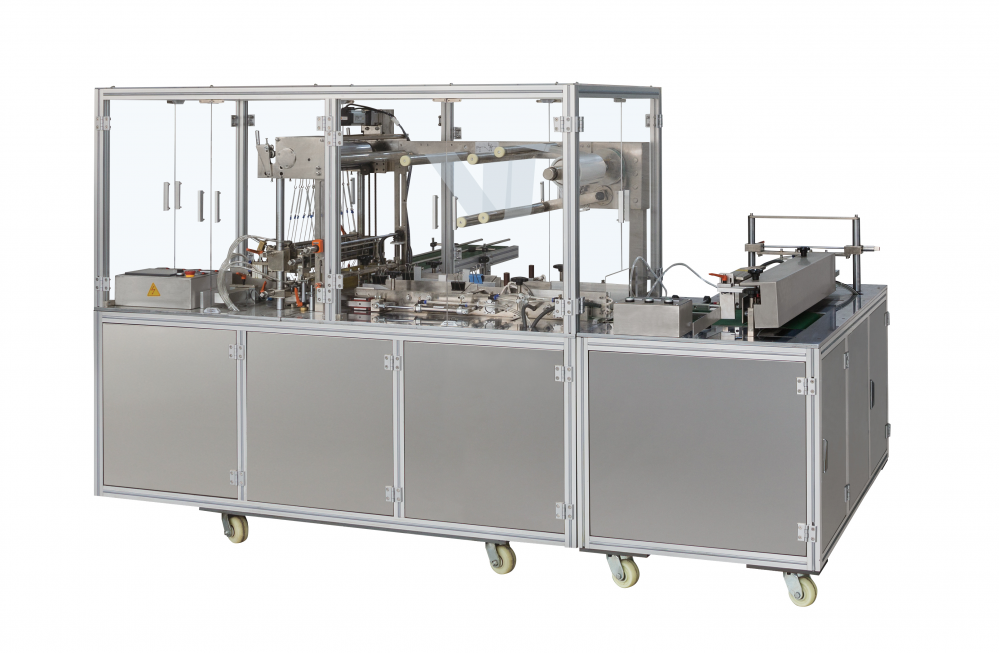

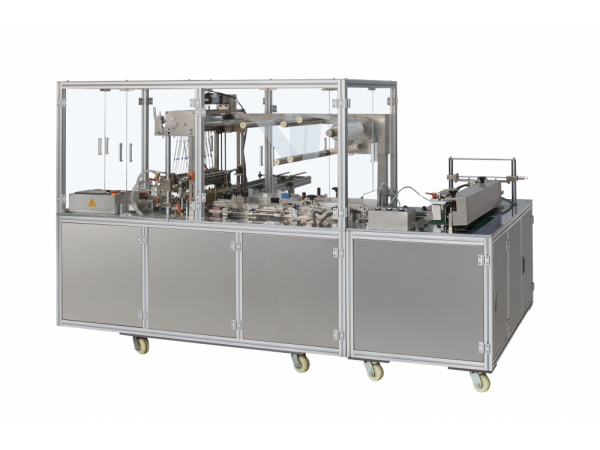

This machine is adapted to medicines, foods,health care products,cosmetics,daily necessary,playing cards and all kinds of boxes which is including with single or double fully automatic packaging. the products that after this kind of machinery to package have special functions "three -against and three-improved ".It is against counterfeit,against moisture,against dust,and improved the level of products,improved product added value, improved the product's exterior decoration.This machine controlled by PLC, electrical integration system. Reliable performance, easy to use, it is the domestic advanced cassette of three-dimensional objects or larger set of packaging equipment. This machine can provide boxes linkage of production equipment.
Main Technical Parameters:
Model | BTB-400A | BTB-400A(XL) |
Packaging Speed | 20-50 bags/min | 15-30 bags/min |
Packaging Size | Length of the bag 100-280mm Width of the bag 50-200mm Thickness of the bag 20-90mm | Length of the bag 100-400mm Width of the bag 50-240mm Thickness of the bag 20-120mm |
Power Supply | 220V.50-60HZ | 220V.50-60HZ |
Motor Power | 4Kw | 4Kw |
Heating Power | 3.7KW | 3.7KW |
Transport Plane | 1800×300×750mm | 1800×300×750mm |
Overall Dimensions | 2000×920×1650mm (L×W ×H) | 2100×1020×1650mm (L×W ×H) |
Machine Weight | 900Kg | 1000Kg |
Air Pressure | 7.5kg/cm3 | 7.5kg/cm3 |
