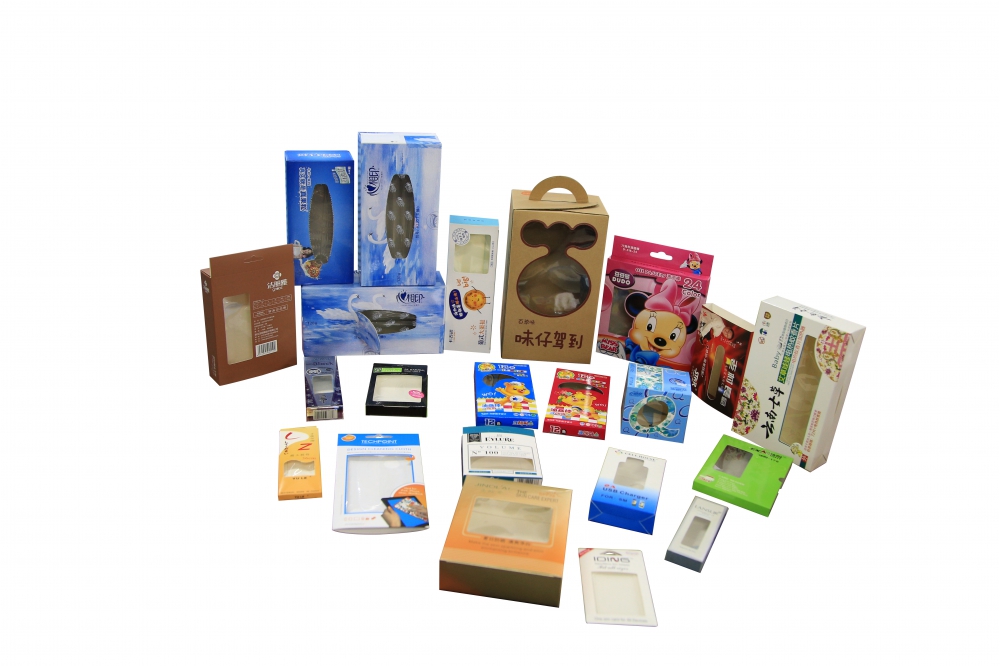

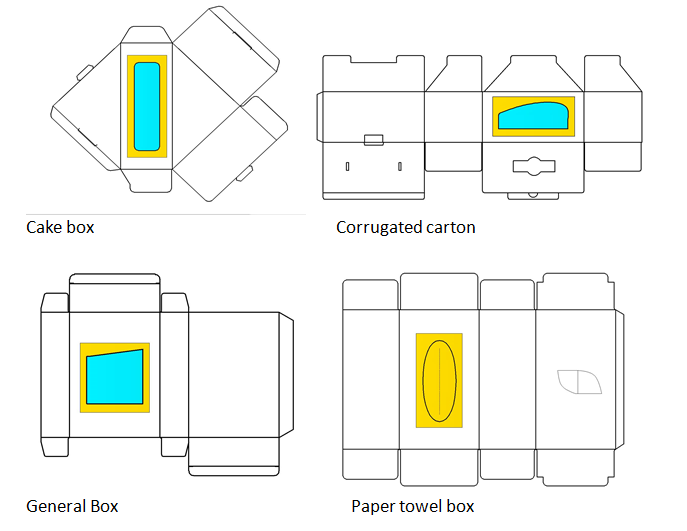

Producible Box Sample
Major Function
Hob cutting film + Single group film applicator
Servo motor paper feeding
Servo motor film feeding
Paper receiving stepper with batch counting
Paper vacuum adsorption transport
Double sheet / empty sheet gluing rising automatically
Paper length L ＜ 400mm double sheet mode
Follow lable of film printing surface(optional)
Film with punching holes (optional)
Tissue box film middle cut (optional)
Specifications

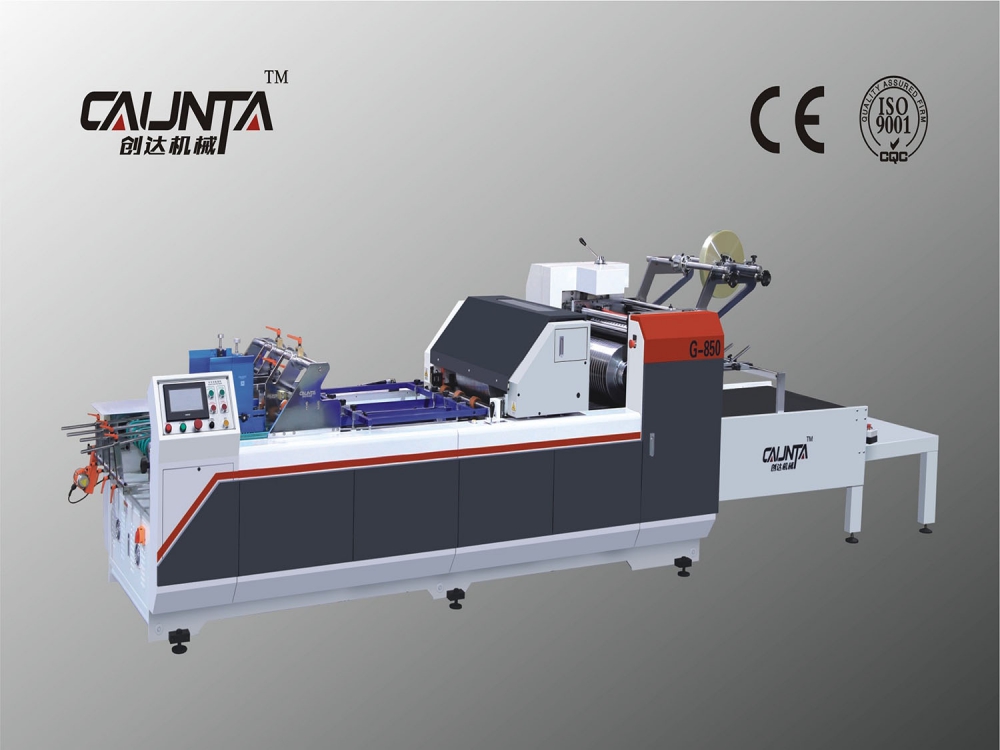

| G-850 |
Max. Paper Size | 780x780mm |
Min. Paper Size | 110X110mm |
Paper Weight | Kraft Paper：150-1200g/㎡ White Cardboard：230-1200g/㎡ Corrugated Paper：≤3mm |
Max. Film Size | W 400xL430mm |
Min. Film Size | W30xL50mm |
Max. Film Unwinding Diameter | 400mm |
Film Thickness | CPE/PE:0.1-0.3mm PVC:0.08-0.25mm APET/PET:0.06-0.2mm |
Film Precision | ±2mm |
Maximum Speed | Paper L≤400mm：30000pcs/h Paper L＞400mm：15000pcs/h |
Quantity of Servo Motor | Driving part：Paper feeding department 1 set ，film delivery department 1 set |
Quantity of Stepping Motor | Driving Parts： Automatic paper receiving 1 set |
Power | 380/415V 50/60Hz 7KW |
Overall Dimension | L540xW145xH160cm |
Overall Weight | 2300kg |
