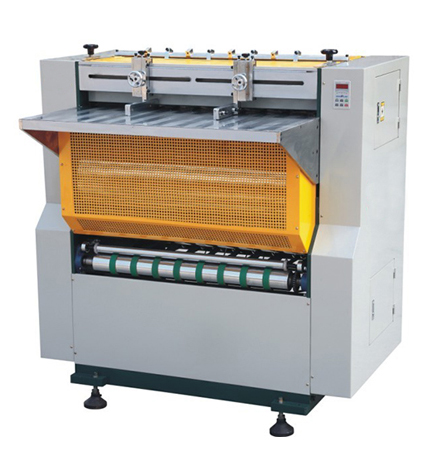

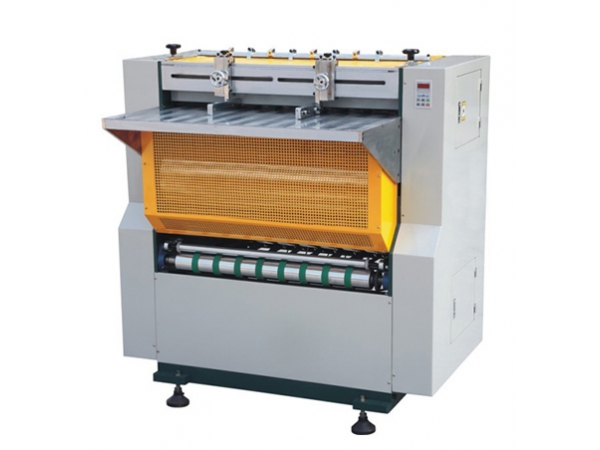

It is specially designed for grooving industry board, grey board, MDF Board and other several of cardboard. It adopts new way of transportation principle. It can guarantee the groove more accurate, no deviation and straight. The machine has the features of high accuracy, fast speed and durable cutting blade.
Main Technical Parameter
Model | KC1000 |
Cardboard Width | 100-1000mm |
Cardboard Length | 100-1000mm |
Cardboard Thickness | 0.2-4.0mm |
Quantity of Groove | 9 strips |
Speed | 195pcs/min |
Groove degree | 90°-140°adjustable |
Power | 2.2kw/380V 3Phase |
Machine Weight | 1100kg |
Machine Dimension | 1420*1400*1400mm |
