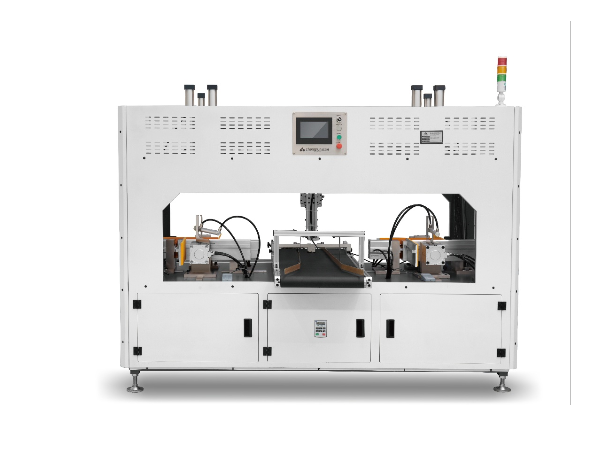

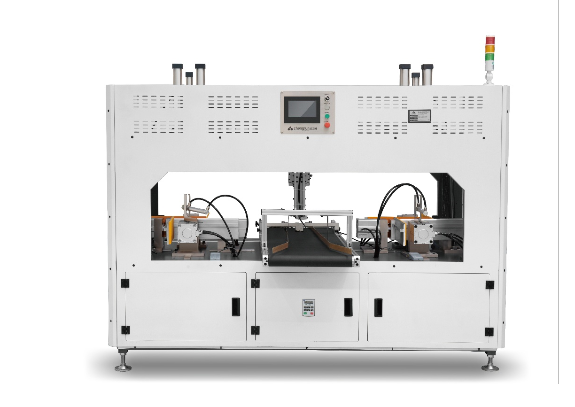

APB480 Automatic Box Pressing Machine

It is professional box equipment which is mainly used to remove the bubbles of rigid boxes.

Features
1. Box feeding belt connects to the rigid box production line directly.
2. Box gripper delivers the boxes to molds orderly.
3. Two separate box pressing unit increase the production speed.
4. The box is unloaded from mold automatically.
5. HMI makes the operation easier.

Main Technical Parameters

Model	APB480
Max.(Box) Size	480420140mm
Min.(Box) Size	806010mm
Speed	≤30pcs/min
Power	2.5kw/220v
Air supply	0.6Mpa, 600L/min
Machine Weight	750KG
Machine Dimension	22009201800mm

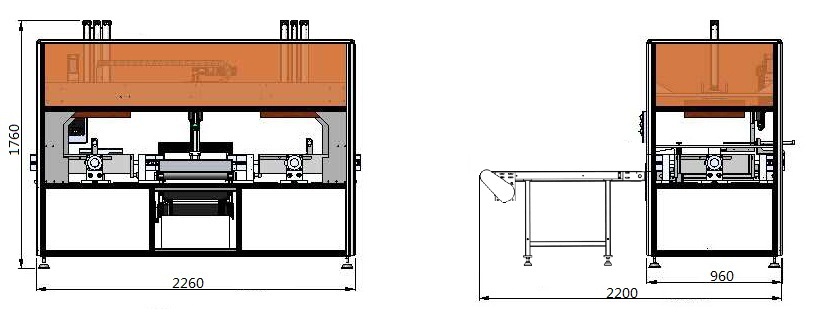

Layout
