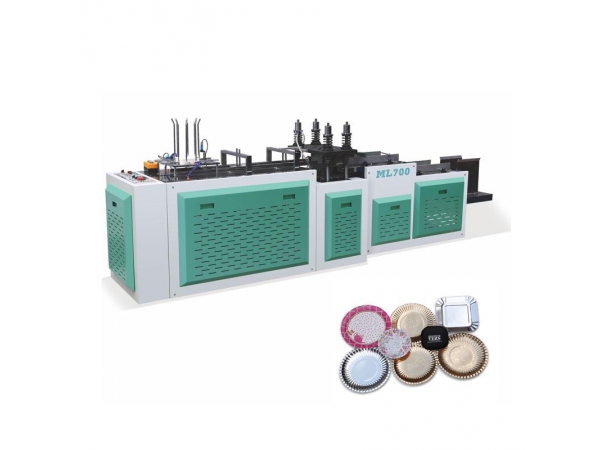

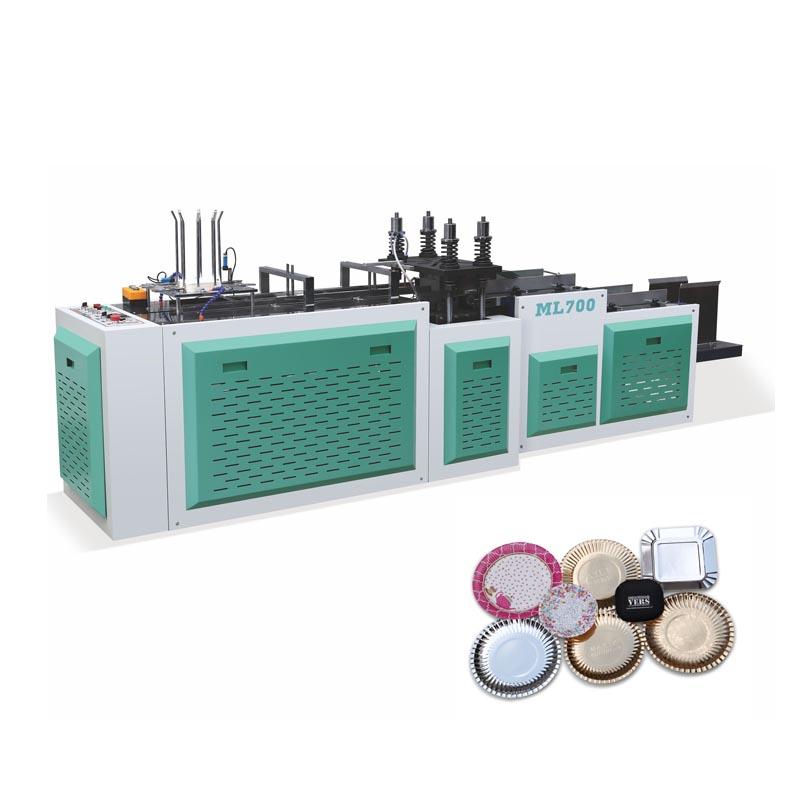

ML700D type high-speed & intelligent paper plate machine is designed according to the market needs, it is an automatic machine with automatic paper feeding , forming, counting, etc. and can produce different shaped paper plate, also suitable for production line.
ML700D has the advantage of high speed , stable performance, safety operation, energy saving and more humanized designing.It adopts the cam with the machine, the biggest pressure can reach 4t, so it is more environmental protection and energy saving compared with air cylinder. It is the ideal equipment to produce different plate, and that can be achieved by changing different molds.
Technical Parameters
Paper Plate Size | 4-9" |
Paper Grams | 150-600g/m2 |
Paper Materials | Base paper, whiteboard paper, white cardboard, aluminum foil paper or others |
Capacity | Single Station 45-85pcs/min |
Power Requirements | 380V 50HZ |
Total Power | 2KW |
Weight | 700kg |
Specifications | 3600×700×1400mm |
Air Supply Requirement | 0.4Mpa, 0.2cube/min |
Other Notes | Customize |
