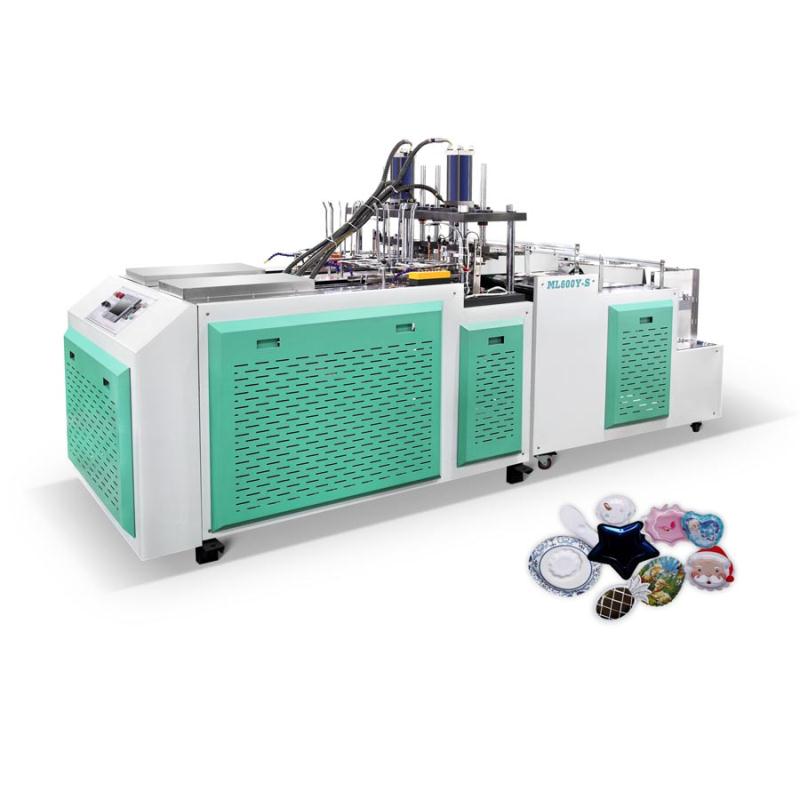

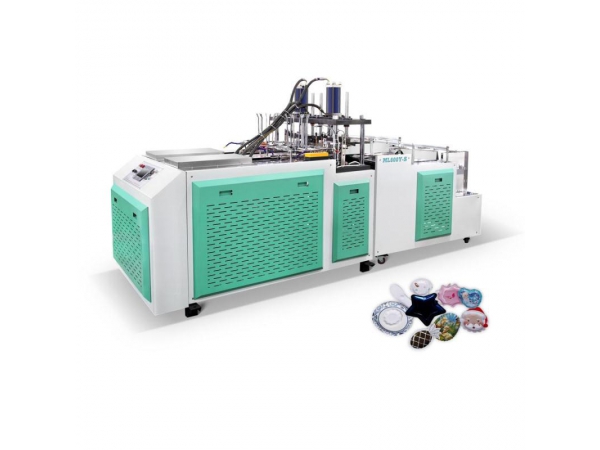

ML600Y type high-speed & intelligent paper plate machine uses desktop layout, which isolates the transmission parts and molds. The transmission parts are under the desk, molds are on the desk, this layout is convenient for cleaning and maintenance.
The machine adopts mechanical transmission, hydraulic forming and pneumatic blowing paper, which has the advantages of stable performance and easy operation & maintenance. For electrical parts,PLC, photoelectric tracking, auto and intelligent fabrication, can directly support production line. ML600Y-S is designed for special sized paper plate, paper feeding directly into the mold, reduce the wasting rate greatly.
Technical Parameters
Paper Plate Size 4-12” Paper Grams 100-800g/m2 Paper Materials Base paper, whiteboard paper, white cardboard, aluminum
foil paper or others Capacity Double Stations
40-100pcs/min Power Requirements 380V 50HZ Total Power 8KW Weight 1600kg Specifications 3700×1200×1900mm Air Supply Requirement 0.4Mpa, 0.3cube/min Other Notes Customize Oil Cylinder ML-63-150-5T-X Cylinder Stroke 150mm
