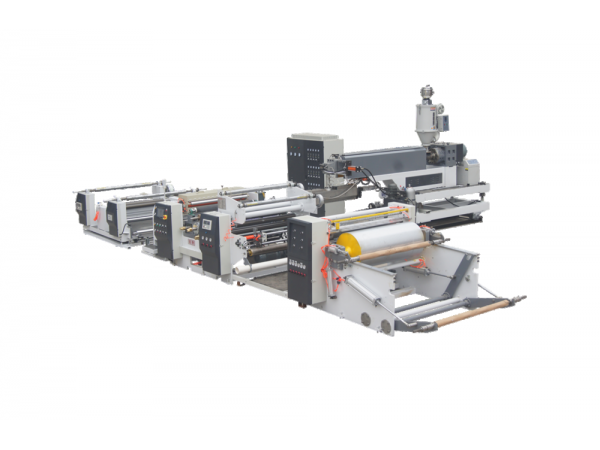

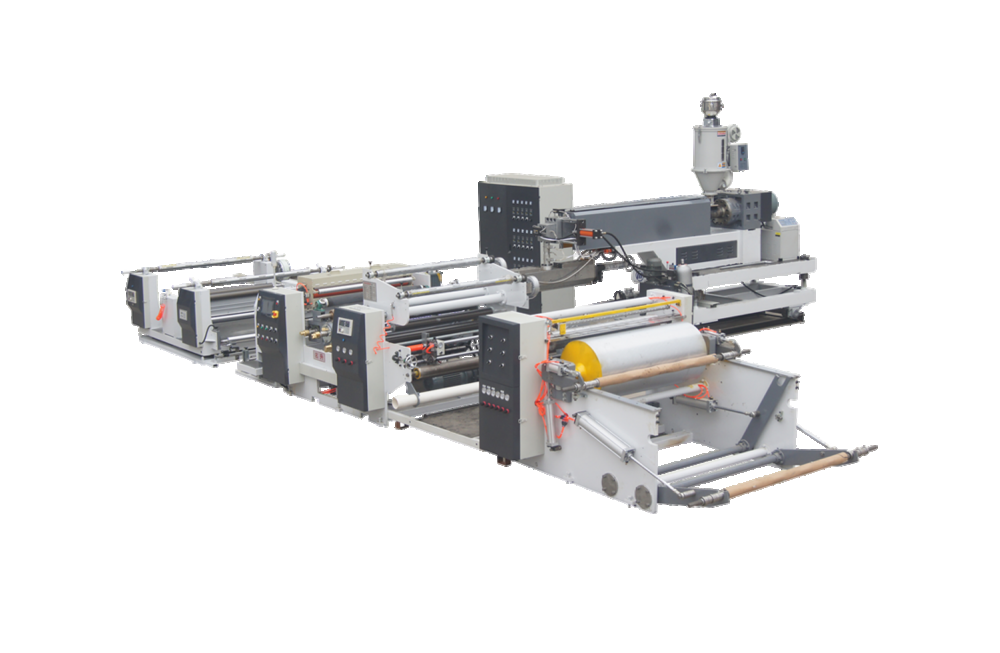

Main technical parameters

Model	MS-11FC-1300
Laminating Width	1200mm
Laminating Thickness	8～20 ㎡
Laminating Line Speed	50～150（m/min）
L/D	30:1
Roller Effecive Length	1200mm
Die Head Length	1200mm
Max Dia Of Un/Rewinder	1400mm
Un/Rewinder Paper Croe Inner Dia	76mm
Installed Power	100KW
Rated Voltage	380-440VAC
Air Source Requirement	0.5-0.6Mpa
Cooling Power	12P
Ambient Temperature	0-45℃
Machine Weight（L*W*H）	8000*8000*2400

Device Configuration Table

	Heating ring (tube)	5	Inlet and outlet hose	6
	Electric coupling	2	Air gun	4 sets of
	Air nozzle (for air expansion shaft)	5	Tracheal joint	15
	relay	2	Edge cutter	2
	Manual valve	1	Electromagnetic valve VDC24	2

1. The workshop area is > 200㎡, the ground level is less than 50mm, the space height is > 2.8m, and the hoisting capacity is > 1.5t.
2. The cross-sectional area of the power line is > 50㎡, the power supply voltage is 380-440vac +N+ ground line, and there is an independent control power switch cabinet.
3. Install water chiller and piping and water source.
4. Install the air compressor and pipeline, the air pressure: 0.8 mpa gas storage capacity: > 0.5 ㎥ ㎥ .
5. Provide test materials.
E the seller shall, in accordance with the requirements of the buyer, be responsible for the design, fabrication, installation, ex-factory commissioning and operation of all the above-mentioned equipment.
F payment terms:
After the contract is signed, the deposit will be 50  . Money to production. Pay off the balance of 50      before delivery
J after-sales service and maintenance:
After negotiation, party b shall bear the cost of food and accommodation for the debugging personnel. The free warranty service period of the equipment is one year. Party a shall be responsible for the personnel expenses caused by the equipment technical problems requiring party a's on-site services within one year. If the defective equipment causes party b to be unable to produce normally, the equipment may be replaced after negotiation. The ownership of the equipment shall be owned by party a before the payment of the equipment is settled, and the equipment shall not be modified without party a's consent. Free installation, on-site debugging and technical training are provided in China. The buyer of overseas installation, on-site debugging and technical training needs to be responsible for round-trip air tickets, accommodation and transportation expenses and wages of the technicians, each of which is usd 100 / day.
H liability for breach of contract
1. During the production process of party a, if party b has major changes or changes to the equipment technology and technical requirements, natural disasters or transportation accidents that affect the delivery date, both parties shall solve the problem through friendly negotiation or change the contract in written form.
2. Party b shall ensure the normal installation of party a's equipment, and party b shall be held responsible if it causes party a to fail to install the equipment without any reason, thereby affecting the installation schedule of party a.
I matters not covered herein shall be settled by both parties through negotiation, and any change to the contract shall be subject to the agreement of both parties. This contract shall come into force upon being signed and sealed by both parties, and shall terminate upon completion of the performance of rights and obligations of both parties. If the negotiation fails, the contract dispute shall be settled by the local court of party a.
G this contract is made in duplicate and shall be returned by fax or electronic document or picture with the buyer's signature and seal.
