Performance and Characteristics This machine is suitable for slitting and rewinding such various roll materials as BOPP,PEL CPP,CPE, PVC,aluminum foil laminated with film and paper,etc.And can cut edge,separate and cut material according to different requirements during production.
Main Features
•Hydraulic automatic rolling width adjustment. •The hydraulic system of automatic coil. •The laser type paper core positioning technology. •The servo drive technology/vector frequency conversion control •Block tension control technology. •Automatic switching scroll,reduce downtime,on the knife system automatically. •The finished product volume automatic discharge system.

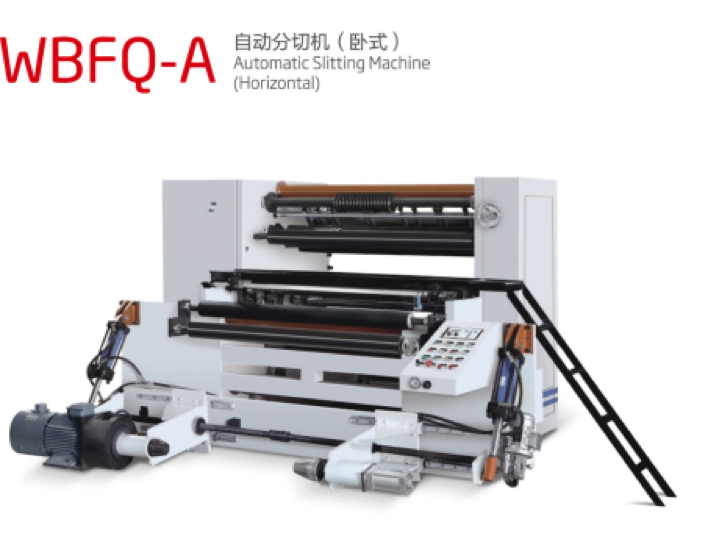

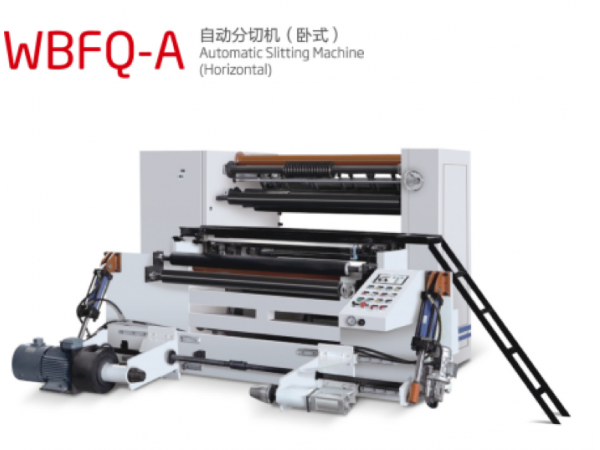

Slitting machine model WBFQ -A (vertical) WBFQ -A (horizontal) WBFQ -C (horizontal) WB-S350 WB-S400 Name Automatic slitting machine Automatic slitting machine Computer high speed slitting machine Computer high speed slitting machine (vertical) Computer high speed slitting machine (vertical) Width 1300mm 1300mm 1300mm 1300mm 1300mm Speed 200m/min 200m/min 300m/min 350m/min 400/min Price 8000usd 13000usd 28000usd 30000usd 32000usd
