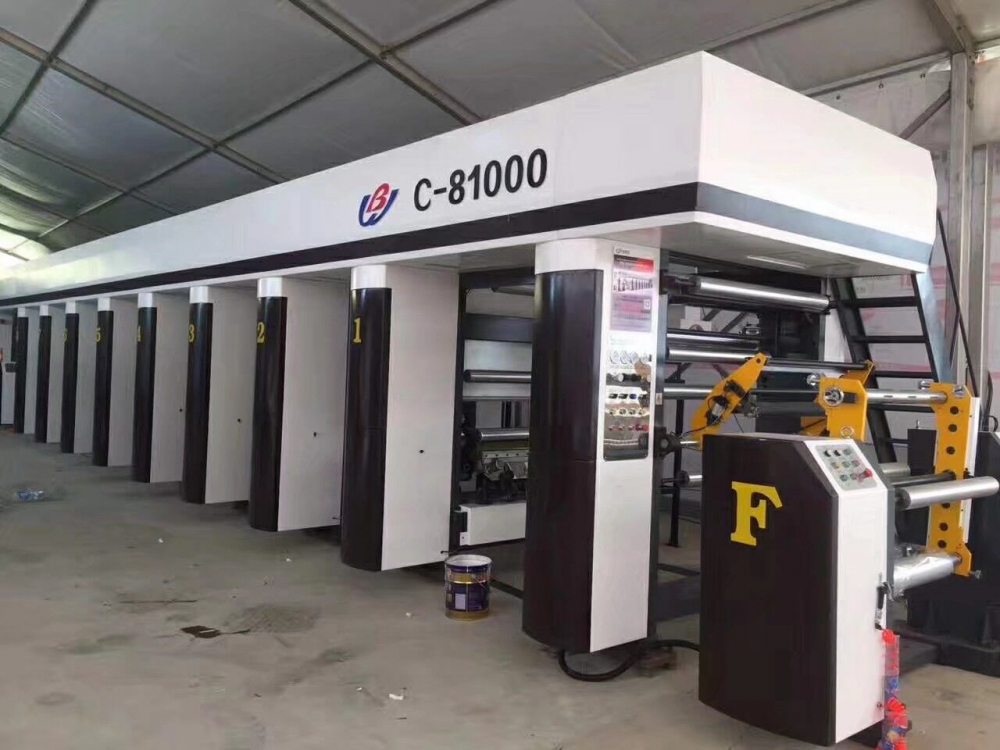

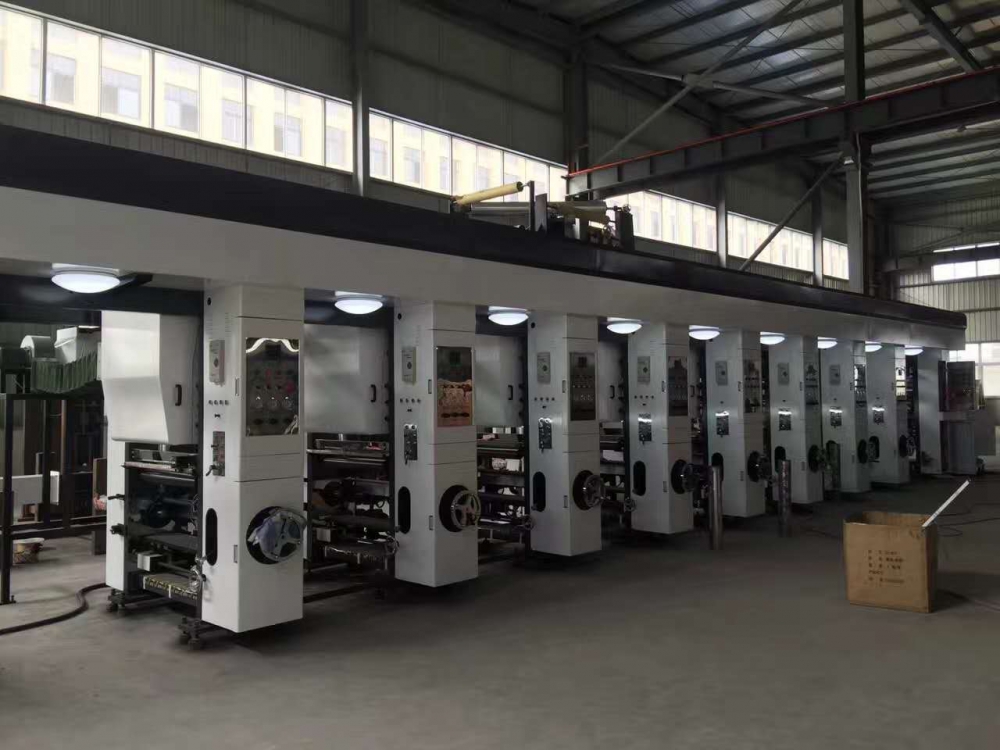

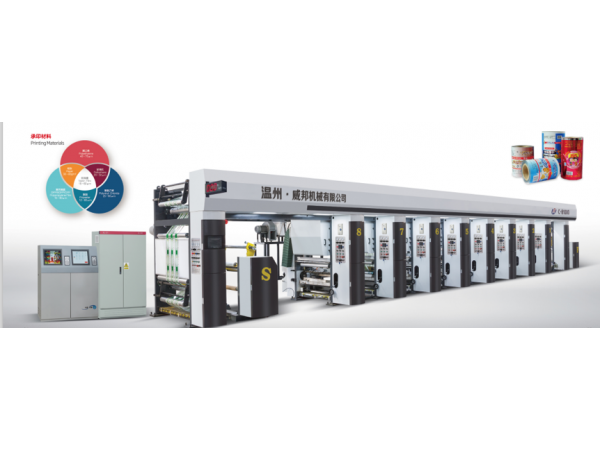

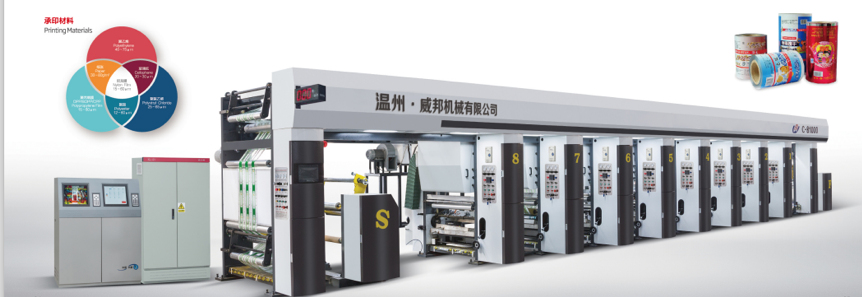

Performance and Characteristics This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP,PET,PVC,PE,aluminum foil and paper,etc.
Main Features
Independent high-strength body.
• Oil immersed type gear box shaft less loading plate.
• Rewinding,unwinding AB no stop receive material.
•Four float roll seven motor synchronous tension close loop control.
• JAPAN Fujikura low friction cylinder control tension float roll.Japan YASKAWA inverter control servo motor.
• Quickly repection when lifting speed,steady color register,high yield.
• Water-cooling and air-cooling double cooling structure.
• Longitudinal double leads crew pre-registration device.
• Three-position pneumatic double-shaft blade,movement:±6mm.
• External type independent heating system.
•Opearte man-machine interface in text.
• High static picture and precision overprint system.Luxury and manerly appearance design.
