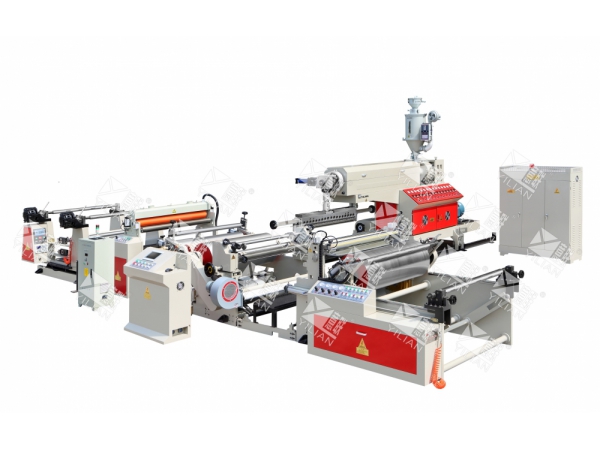

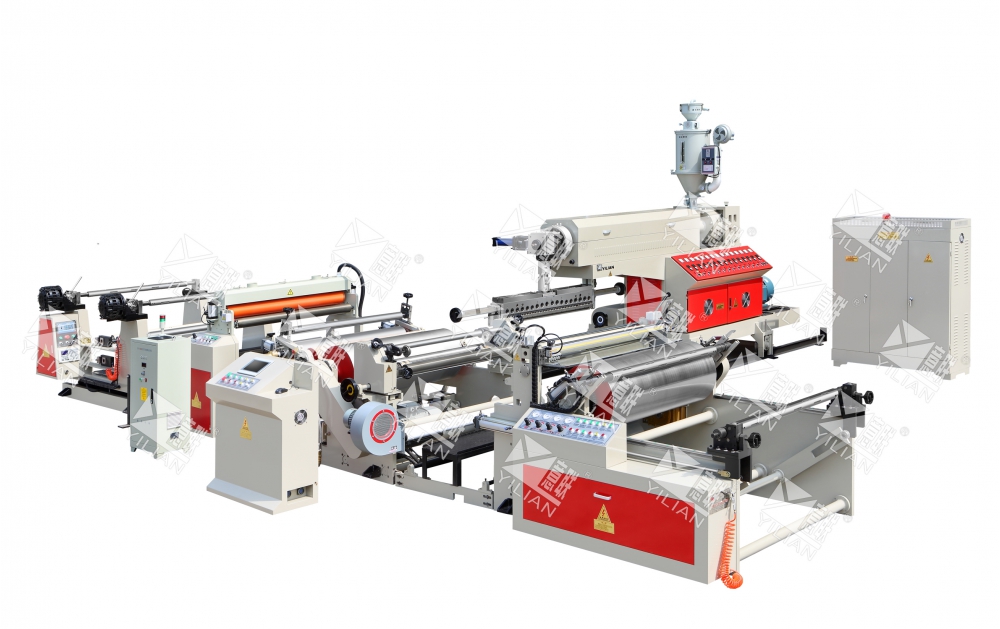

SJFM paper plastic composite machine: set discharge, drying, surface treatment, composite, cutting edge, suction side, volume as a whole; the photoelectric error correction, corona treatment, line speed, feed length digital display; automatic constant tension, temperature control and advanced technology.
1.PLC man-machine interface centralized control, machine, electricity, gas, integrated design.
2 highly efficient corona device, hydraulic for the network, are the first domestic, can effectively enhance the product peel strength.
Form of production:
Double-layers lamination / three-layer composite multilayer composite / (one-time seven layers, increase the extrusion unit)
Application range:
Paper plastic composite plastic composite aluminum-plastic composite non-woven aluminum paper plastic composite adhesive series
Main technical parameters:
model | SJFM-1300A | SJFM-1600A | SJFM-1800A | |
length of die lip | 1400mm | 1800mm | 2000mm | |
Width of coating | 600-1250mm | 800-1500mm | 900-1700mm | |
Max speed | 100-150m/min | 100-150m/min | 100-150m/min | |
thickness of shower film | 0.008-0.05mm | 0.008-0.05mm | 0.008-0.05mm | |
L/D ratio for screw | Φ105mm×30 | Φ120mm×32 | Φ140mm×32 | |
Dia of roll | Φ1300mm | Φ1300mm | Φ1300mm | |
overall size | 9600×8600×3200mm | 9600×9000×3200mm | 9600×9300×3200mm | |
power | 80kw | 100kw | 130kw | |
Cooling roller dia | Φ510mm | Φ510mm | Φ610mm | |
Applicable for base material | PAPER from 35-400gsm/㎡ | |||
