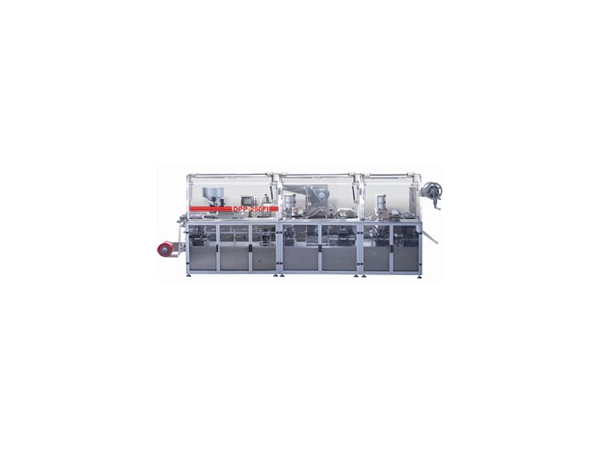

Features of DPP-250FI Blister Packing Machine
1. We apply advanced servo drive and PLC control system on our packing equipment, and all components that come in contact with pharmaceutical products are made of anti-corrosive SUS316 stainless steel.
2. Main motor of our DPP-250FI blister packing machine uses a variable frequency speed controller.
3. Modular-type work stations make the adjustment of work stations clear and easy.
4. A safety enclosure is provided to protect equipment and operators.

5. Photoelectrical devices ensure high precision image-text registration.

DPP-250FI blister packing machine can be used as tablet packing machine, capsule packing machine, and solid packing machine like chocolate packing machine and gum packaging machine. It follows ergonomic design principles and is in accordance to the GMP and CGMP structure standards.

Options
1. Online detecting system
2. Chiller cooling system

Parameters of DPP-250FI Blister Packing Machine

Maximum operation speed	AL-Plastic-AL: up to 30cycles/min
	AL-AL: up to 35 cycles/min
	AL-PVC: up to 50 cycles/min
Format Range	Effective Index width: Maximum 110×240mm
	Depth: Maximum12mm
	Width of Forming film: 255mm
	Width of Lidding Material: Maximum 255mm
	Tropical blister foil: Maximum 255mm
Packaging material	Forming Material: PVC, PVC/PVDC, PVC/ACLAR ,PET ,Alu forming material etc.
	Lidding Material: PTP, PP, etc. Heat-sealable lacquered material
Dimension of machine	5100×650×1700 (L×W×H)
Weight	2100kg
Power supply	380V 50Hz 6Kw Three-Phase Four-Wires
Compressed air pressure	0.5-0.7MPa
Air consumption	150NL/min
