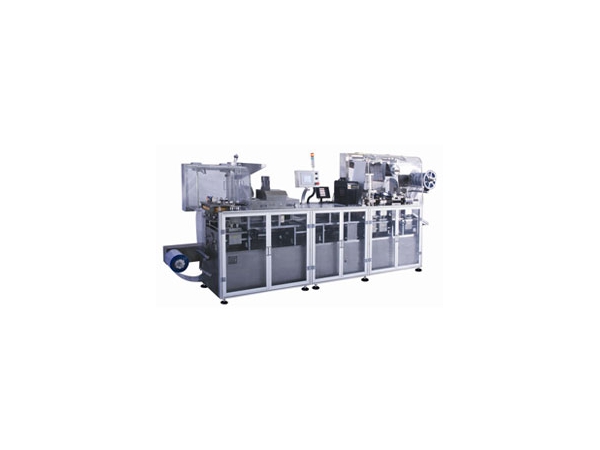

Blister Packing Machine (ALU-PVC)

Our DPP-250DI blister packing machine can be widely used as capsule packing machine, tablet packing machine, gum packing machine and biscuit packaging machine.

Inquiry

Features
1. DPP-250DI blister packing machine is designed according to the GMP structure standard, and all components that come in contact with pharmaceutical products are made of high anti-corrosive SUS316 stainless steel.
2. PLC man-machine interface control system results in simple operation.
3. Main motor of our DPP-250DI blister packing machine is equipped with a variable frequency speed controller.

4. Modular-type work stations make the adjustment of work stations clear and easy.

Options
1. Servo drive
2. Safety enclosure
3. Online detecting system
4. Photoelectric registration device
5. Chiller cooling system

Applications
Our DPP-250DI blister packing machine can be widely used as capsule packing machine, tablet packing machine, gum packing machine and biscuit packaging machine.

Parameters of DPP-250DI Blister Packing Machine

Maximum blanking frequency	Alu/ PVC: 50 time/min
Maximum working capacity	Alu/ PVC: 200 blisters/min
Stroke	≤130mm (according to customer's request)
Maximum forming area	245x122mm
Maximum forming depth	12mm (upon request)
Packaging material	PVC: 260x0.25(0.15-0.5)mm
Packaging material	PTP: 260x0.02mm
Power supply	Four wire three phrase 380V 50Hz (220V 60Hz)
Total power	5.7KW
Power of main motor	1.5KW
Air flow	≥0.38m3/min
Dimension of machine(lwh)	4200x650x1700mm
Weight	1500kg
