Features
(1) Automatic servo controlled paper feeder.
(2) Automatic circulation, mixing and gluing system of hot-melting glue.
(3) Hot-melting paper tape is automatic conveying, cutting, and pasting the cardboard box corners in one process.
(4) The vacuum suction fan under the conveyer belt can keep the glued paper from deviating.
(5) The glued paper and cardboard inner box employ hydraulic pneumatic rectifying device to spot correctly. The spotting error is ±0. 5mm.
(6) The box gripper can automatically collect and deliver the box to the wrapper.
(7) The wrapper can continually delivery boxes, wrap, fold ears and paper sides and form the box in one process.
(8) The whole machine employs PLC, hydraulic positioning system and touch screen HMI to automatically form boxes in one process.
(9) It can automatically diagnose the troubles and alarm accordingly.

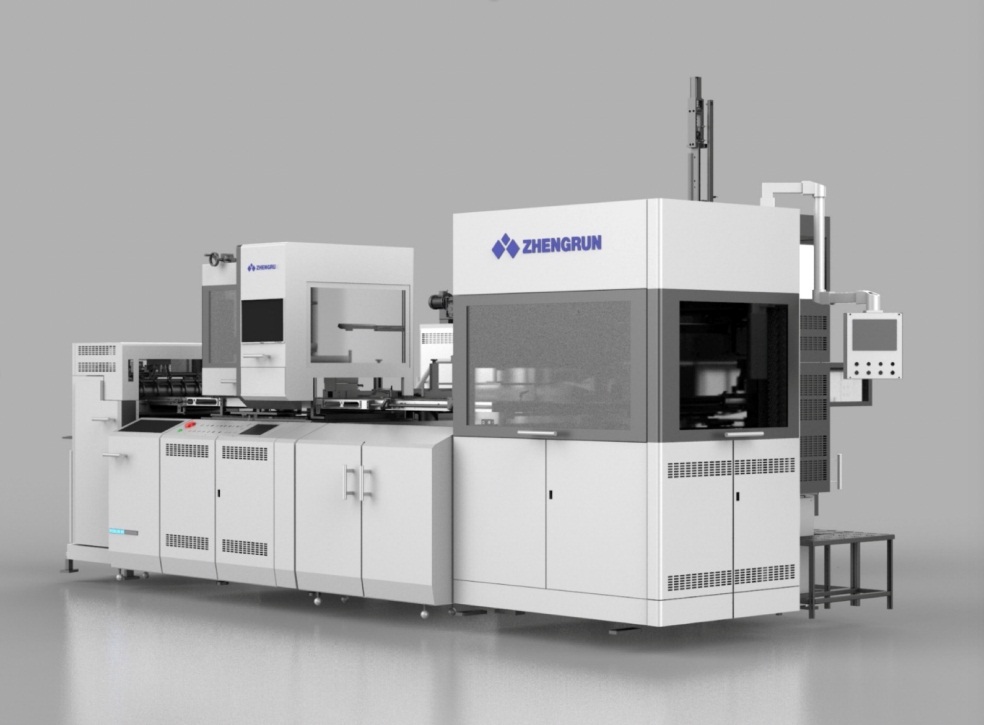

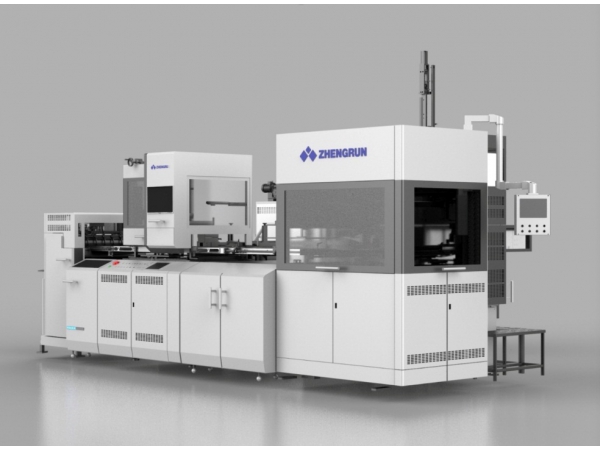

	Model	RB185A
1	Paper size(A×B)	Min.120×250mm Max.610×850mm
2	Box size(W×L)	Min. 50×100mm Max.400×600mm
3	Paper thickness	100-400g/m2
4	Cardboard thickness(T)	0.8~3mm
5	Box height(H)	12-185mm
6	Fold-in paper size(R)	10-100mm
7	Precision	±0.10mm
8	Speed	≦30sheets/min
9	Motor power	20kw/380v 3phase
10	Heater power	10kw
11	Machine weight	6800kg
12	Machine dimension(L×W×H)	L7000×W4100×H3600mm
13	Paper type	1/2/3
