1. Reduce the land occupation;
2. Reduce labor; only one worker can operate whole line.
3. Improve the positioning accuracy; +/-0.1mm
4. Two functions in one machine;

5. Available to be upgrade into automatic machine in the future:

Features
(1)Paper Gluing Unit：

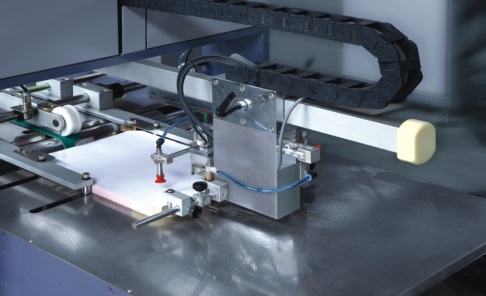

*Full-pneumatic feeder: novel design, simple construction, convenient operation. (This is the first innovation at home and it is our patented product.)
*It adopts ultrasonic double-paper detector device for the paper conveyor.
*Paper rectifier ensures that the paper won’t deviate after being glued.

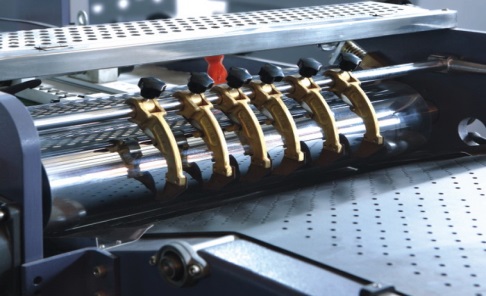

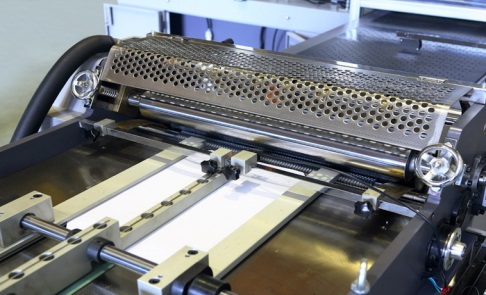

*Glue roller is made of finely-grinded and chromium-plated stainless steel. It is equipped with line-touched type copper doctors, more durable.

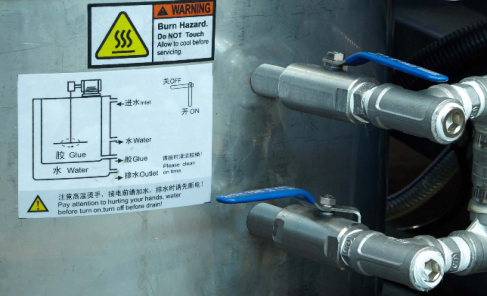

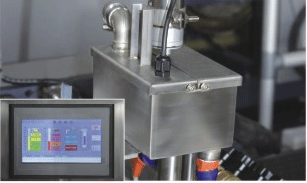

*Glue tank can automatically glue in circulation, mix and constantly heat and filter. With fast-shift valve, it will take only 3-5 minutes for the user to clean the glue roller.
*Glue viscosity meter.(Optional)

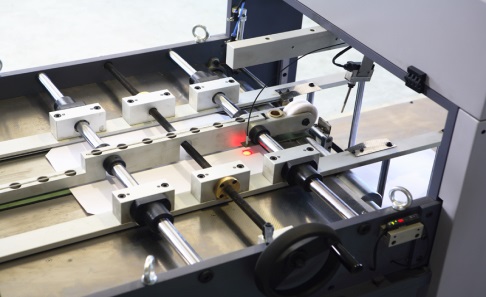

(2)Cardboard/box Conveying Unit

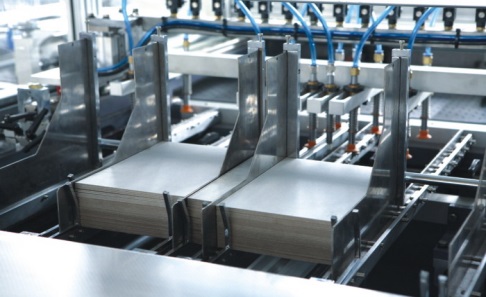

It adopts per-stacking non-stop bottom-drawn cardboard feeder, which improves the production speed.

Cardboard auto detector: the machine will stop and alarm while lacking one or several pieces of cardboards in conveying.
Automatic feeding the cardboard box by conveyor belt.


The vacuum suction fan under the conveyer belt can have the paper sucked stably.
Cardboard conveying employs servo motor.

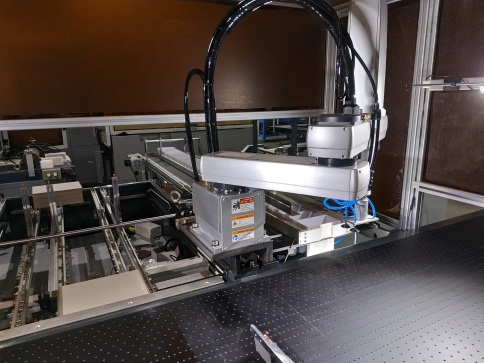

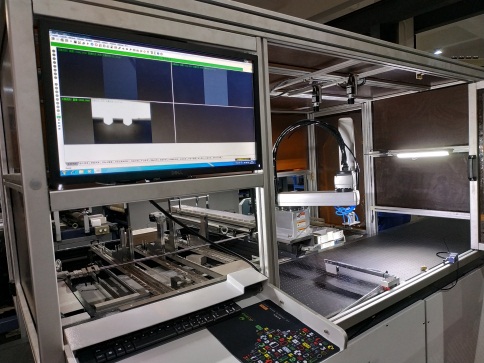

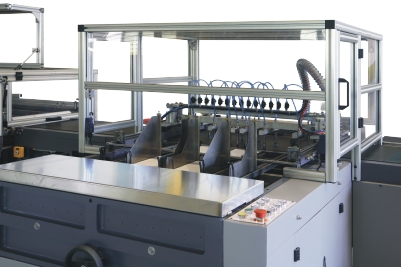

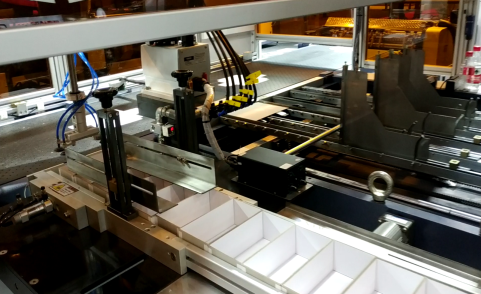

YAMAHA Mechanical arm with HD Camera positioning system.

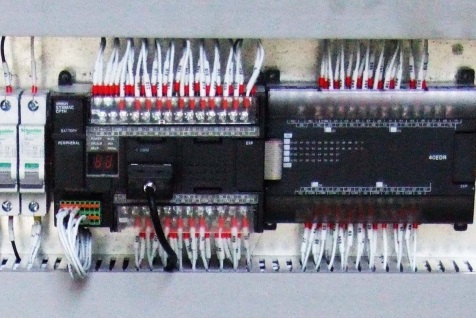

*The PLC control on-line motion.

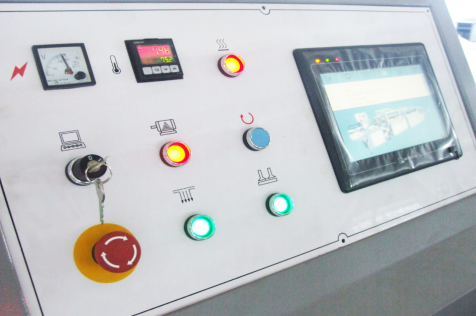

*All icons control panel is easy to understand and operate.

Main Technical Parameters

1	Paper size(A×B)	MIN: 100×200mm MAX: 540×1030mm
2	Case size	Min. 100×200mm Max. 540×600mm
3	Box size	Min. 50×100×10mm Max. 320×420×120mm
4	Paper thickness	100~200g/m2
5	Cardboard thickness(T)	1~3mm
6	Precision	+/-0.1mm
7	Production speed	≦35pcs/min
8	Motor power	9kw/380v 3phase
9	Machine Weight	2200KG
10	Machine dimension (L×W×H)	L6520×W3520×H1900mm

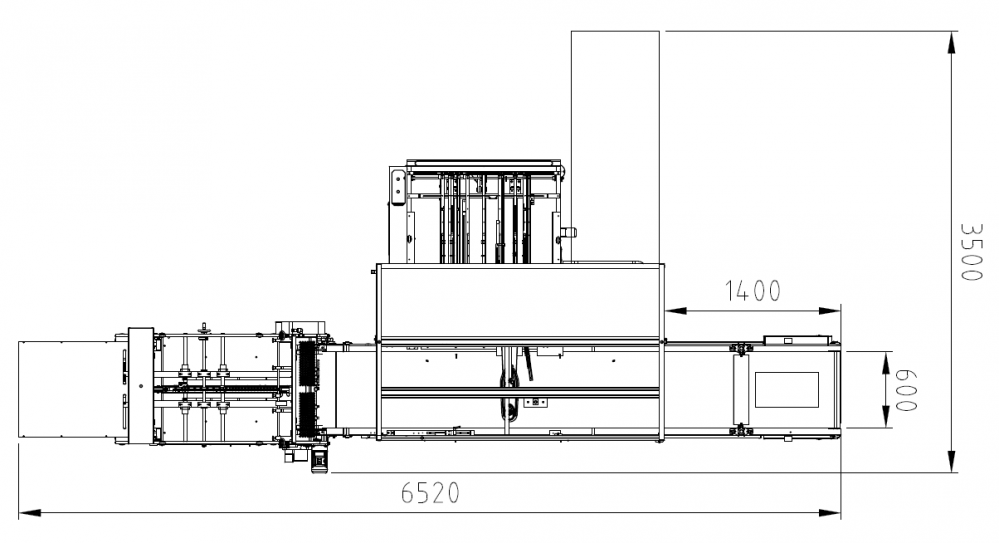

Layout
