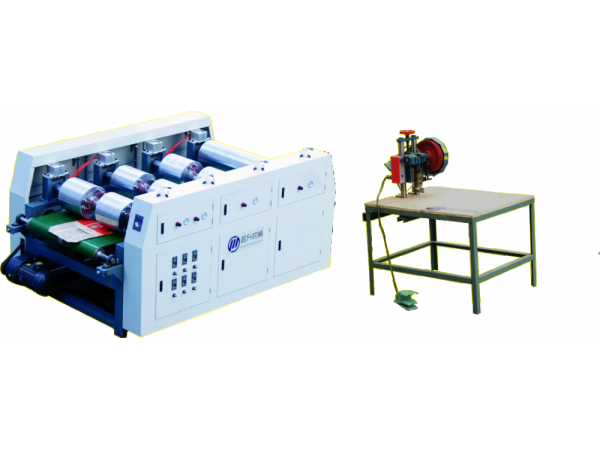

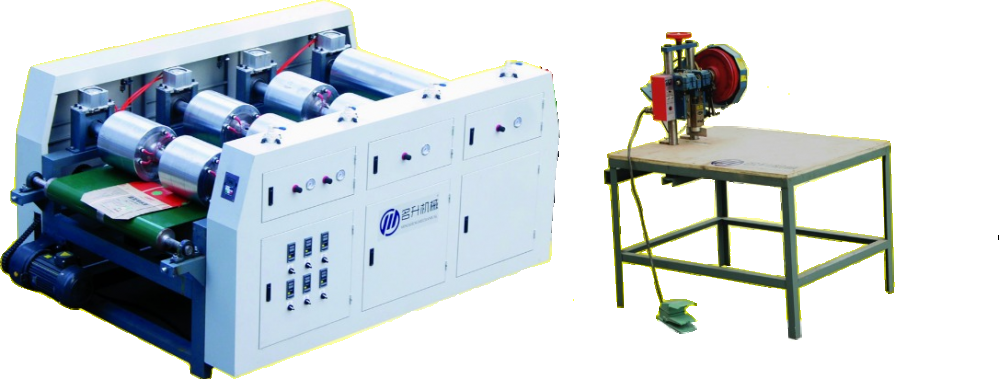

Square Bag Sole Press Machine
Product number : MS-FXDYD-800A
Work Function : Heatilng and squeezing ramming the patch at the bottom for the square bag.Application : Applicable to dry powder building material valve bag, ceramic tile adhesive packaging bag,block bottom valve bag, multi-layer kraft paper bag,dry-mixed mortarpackaging bag,stone glue packaging bag,vitrified brick binder kraft paper bag, caulking compounds packaging bag,putty powder valve bag,plastering mortar packaging paper bag,exterior wall external insulation mortar packaging bag,anti-crack mortar packaging bag.bonding mortar PP valve bag, ceramic tile cement packaging bag, self-leveling mortar valvebag,wear-resistant floor material packaging bag, ground hardener packaging, waterproof putty,dry powder interfacial agent/waterproof coating paper bagjoint mixture PP valve bag,seam powder kraft paper bag,glue for tile packaging bag and multi-layer valve paper bag.Applicable Substrates Materials : Knited mesh, laminating knited mesh, OPP compound knited mesh, paper-plastic lamination knited mesh, pure paper; etc.Performance Characteristics : Block bottom valve bag: nickname: The bottom paste bag. the materials are three layers of paper and one layer of film or multiple-layer paper bags,mainly used in dry powder mortar; chemical raw materials, pigments, food additives powder and so on, which is a kind of packaging bag born under the guidance of improvingpackaging efficiency and convenient transportation.The uniform look of the bag is square, and the bottom sealing is sealed by heating and squeezing ramming with the sole pressmachine, to achieve the binding effect..
Major Parameter Table
| Width of Base Material | 800mm | Facility Weight | ≈3.0T |
| Heating temperature | ≤300℃ | Machine speed | 20-150(m/min) |
| Installed Power | 9KW | Boundary Dimension | 3.0×1.6×1.3M（L×W×H） |
