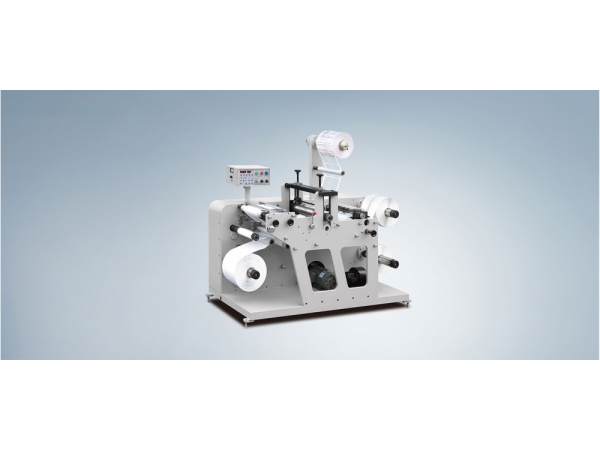

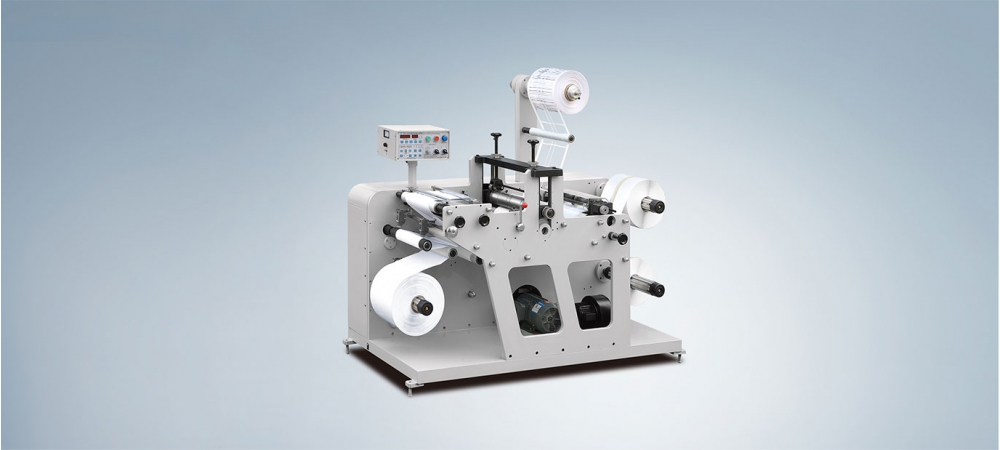

DK-320G Slitting machine with rotary die-cutting function is upgraded from DK-320 slitting machine , it equipped with high accurate rotary die-cutting system.
This machine is suitable for blank adhesive labels . Die-cutting , laminating(option), slitting can be finished in one process . It has the function of automatic meter counting, automatic stop, web guiding by photocell. The machine has the characteristic of compact structure, fast speed,high efficiency,easy operation,accurate slitting and steady running etc.
Main Technical Parameters
Model DK-320G Slitting speed 100m/min Die-cutting
speed 100m/min Die-cutting
repeat length 190.5-508mm Max.web width 320mm Max.unwinding
diameter 500mm Max.rewinding
diameter 480mm Dimensions(L×W×H) 1600x900x1300mm Machine weight (about)850kgs
