Automatic Slitting Machine

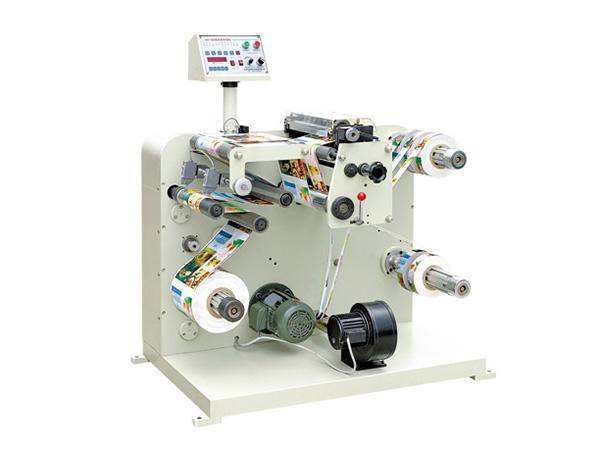

The FQ-320 automatic slitting machine is an auxiliary machine of the automatic die cutting machine. This machine is suitable for slitting narrow paper. It has meter counter and number counter. The unwinding is controlled by two photoelectric eyes. The machine features compact structure, fast working speed and high efficiency. It is simple to operate.
Standard Configurationsa) 1pc of 3’’ unwinding shaft, 2pcs of 3’’ rewinding shafts.
b) 1 meter/number counter.
c) 2 photoelectric eyes
d) 8 rotary knifes.
e) 1 blower fan for blowing away the paper scraps after trimming
Configuration1. 1pc of 3'' unwinder shaft, 1pc of 3'' rewinder shaft.
2. 1 die cutting unit
3. 1 matrix rewinder
4. 1 web guiding unit
5. 1 registration sensor, brand Sick or Leuze, Germany
6. 1 servo motor for main machine, brand Mistubishi, Japan
7. 1 servo motor for output roller, brand Mistubishi, Japan
8. 1 servo motor for infeed roller, brand Mistubishi, Japan
9. 1 servo motor for dancing roller, brand Mistubishi, Japan
8. 1 motion controller, brand Mistubishi, Japan
9. 1 touch screen, brand Schneider, France
10. 1 slitting unit
