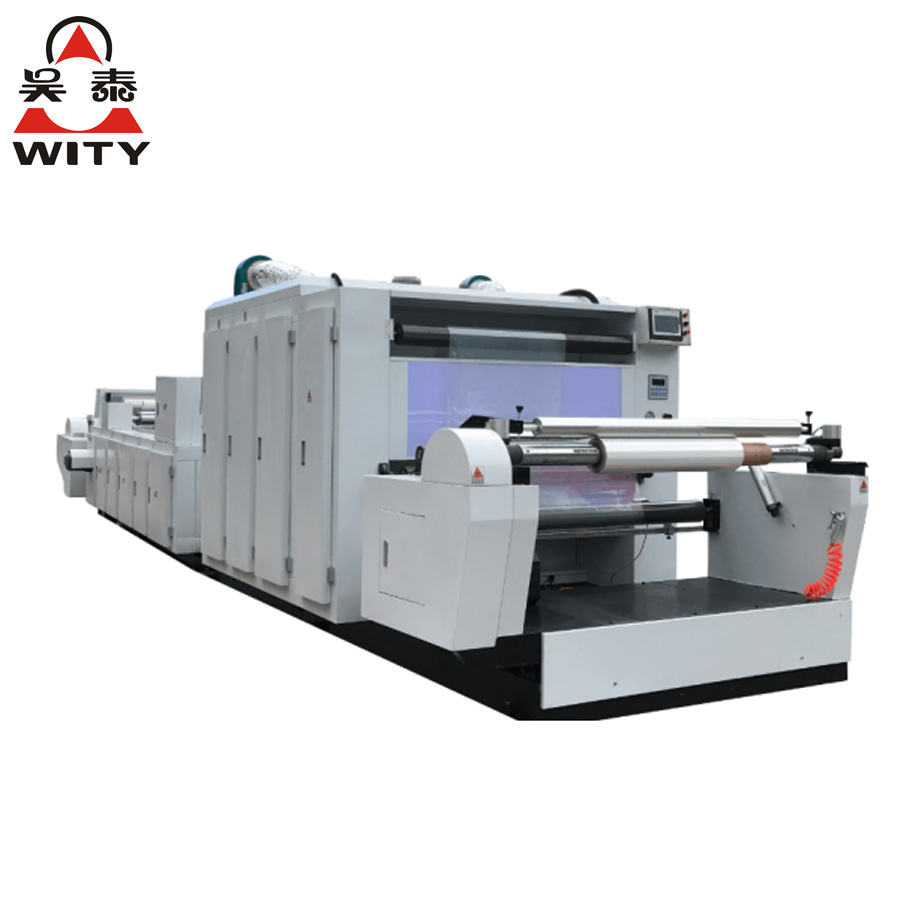

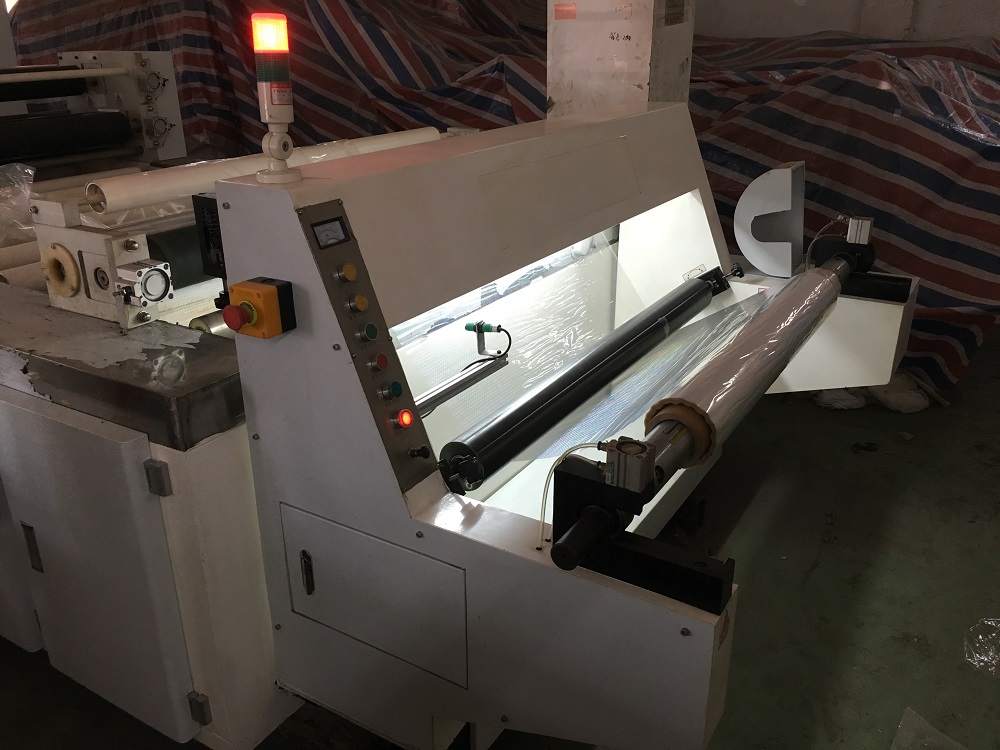

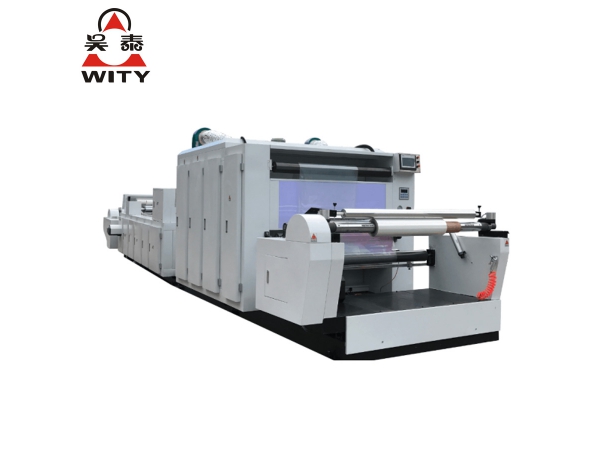

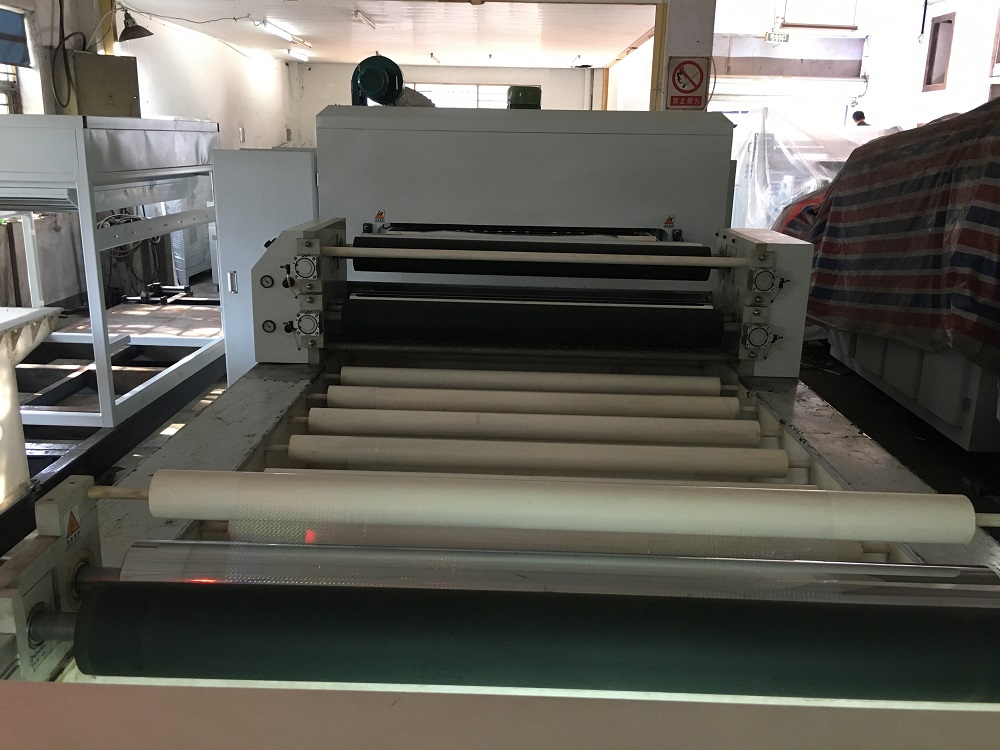

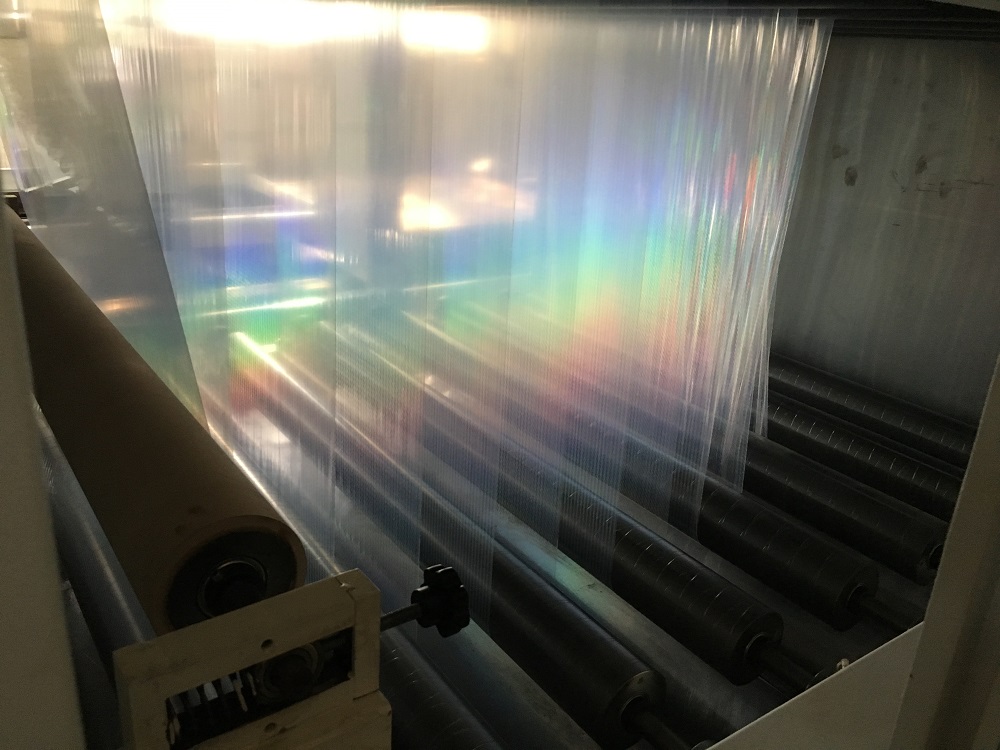

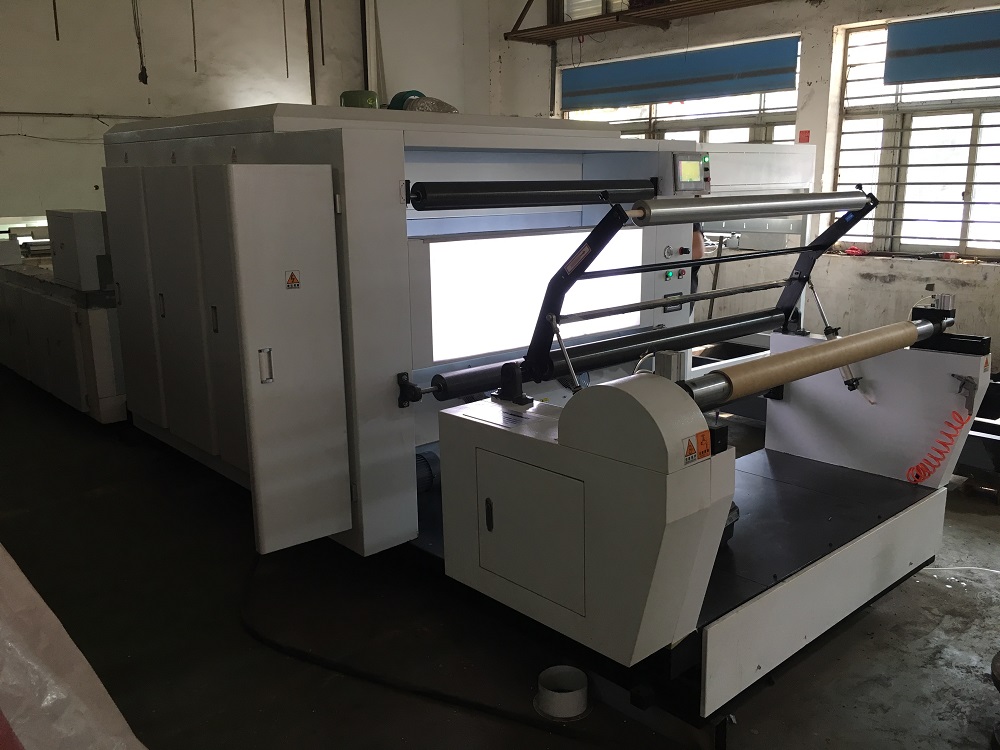

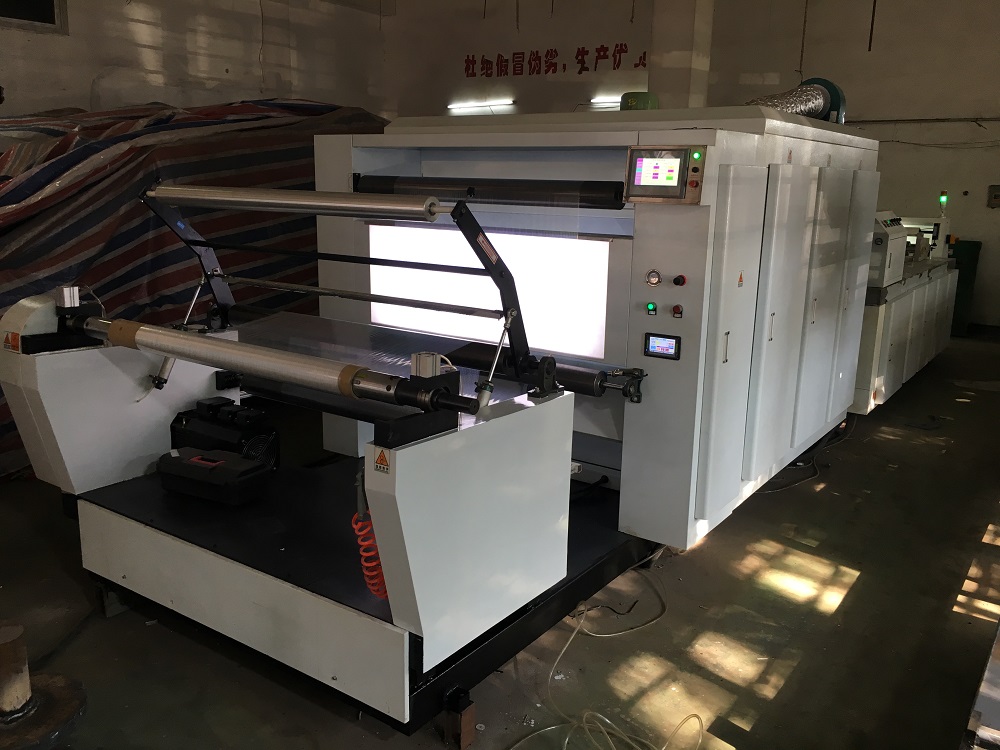

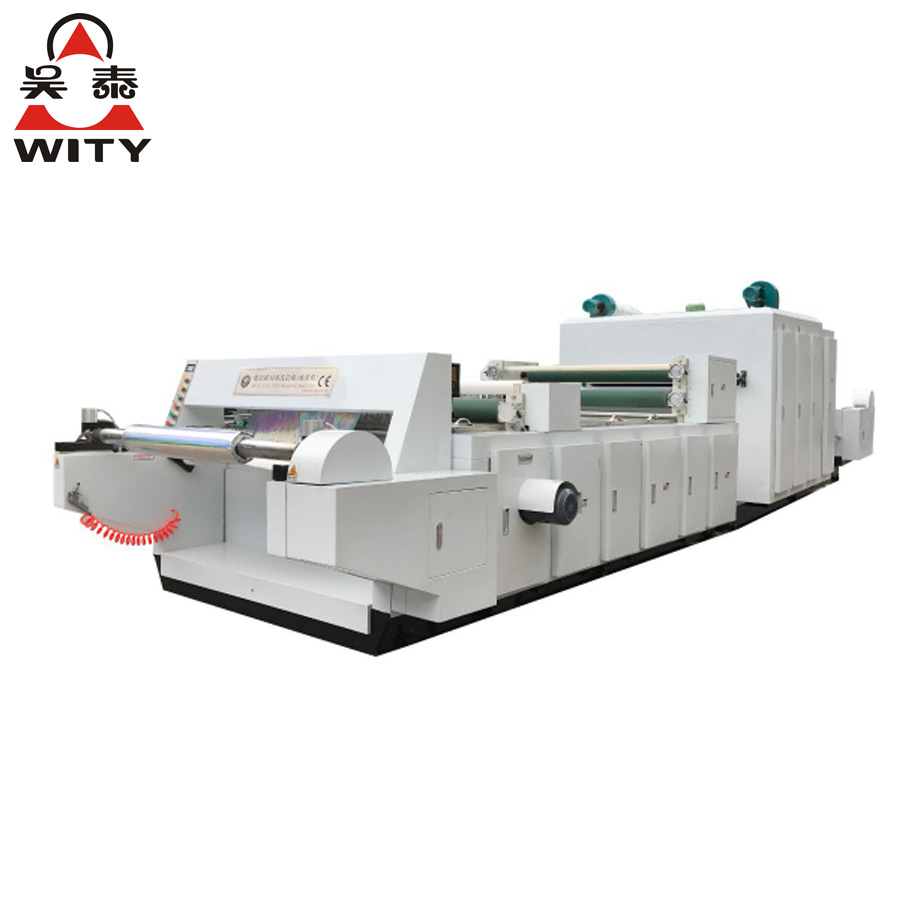

This machine is suitable for metalized or hologram embossed BOPP, PET, PVC material, it is able to achieve the partial transparent effect on soft packages, in any position and shape. Machine controlled by PLC, with both water-wash and chemical-wash functions. The chemicals which used in this machine working process are energy saving and environment friendly, with low cost and consumption.
Main Technical Parameter
720×200×190 | 4.3 |
Material | Bopp 20~90μm Aluminized Film Or Printed Film; Pet 12~90μm Holographic Transfer Aluminized Film, Aluminized Film Or Printed Film. |
Unwinding and rewinding diameter | Minimum 700mm |
Working Width | 600mm-1300mm (according to different models) |
Alkali washing speed | 30~80 M/Min |
Water washing speed | 30~100 M/Min |
Total power | 20kw-36kw |
Weight | About 3.5 T |
Maximum temperature of oven | 120 ℃ |
Water tank | 2000*1400*700mm |
Chemical tank | 700*1400*700mm |
Oven size | 1700*1800*1700mm |
Film running distance | 15m |
Total length | 7500mm |
