Main performance
1. Touch screen, convenient adjustment
2. PLC controller, accurate calculation
3. Photoelectric detection, great precision
4. The length is automatic detected and set, without manual
5. Unlimited speed, the scope of speed and length are very wide range
6. Trilateral closure H(pillow sealing)
7. Automatic counting and feeding by single row (2-100pcs/bag)
8. Option with one or two rows packing (2-100pcs/bag)
9. Distance between with two cups only needs 3 mm

Specification

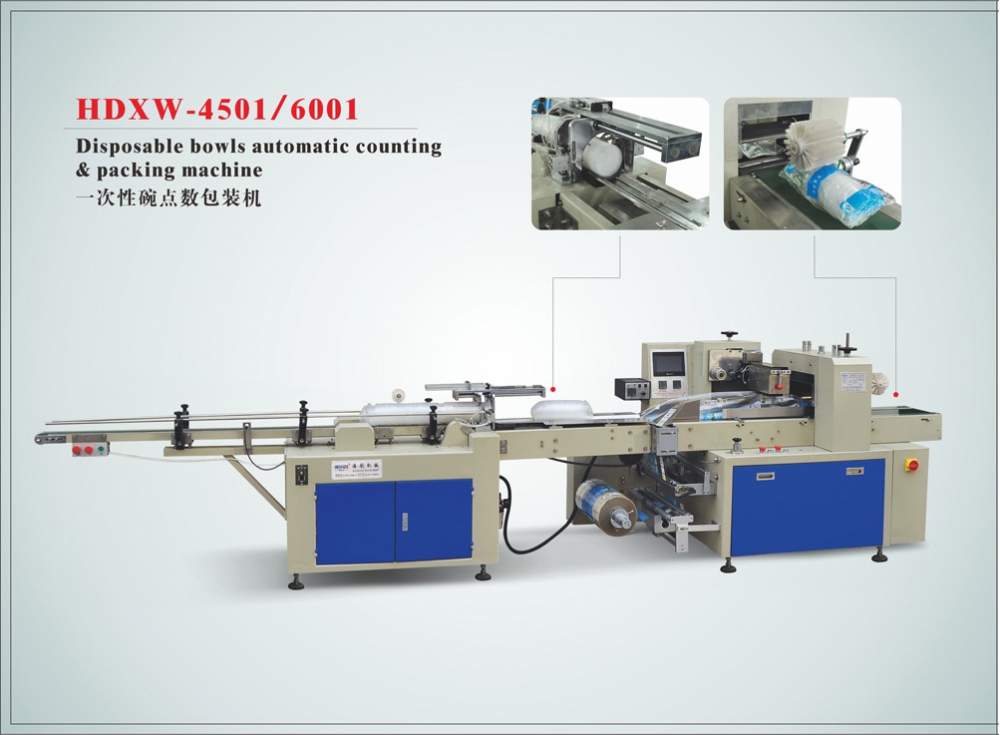

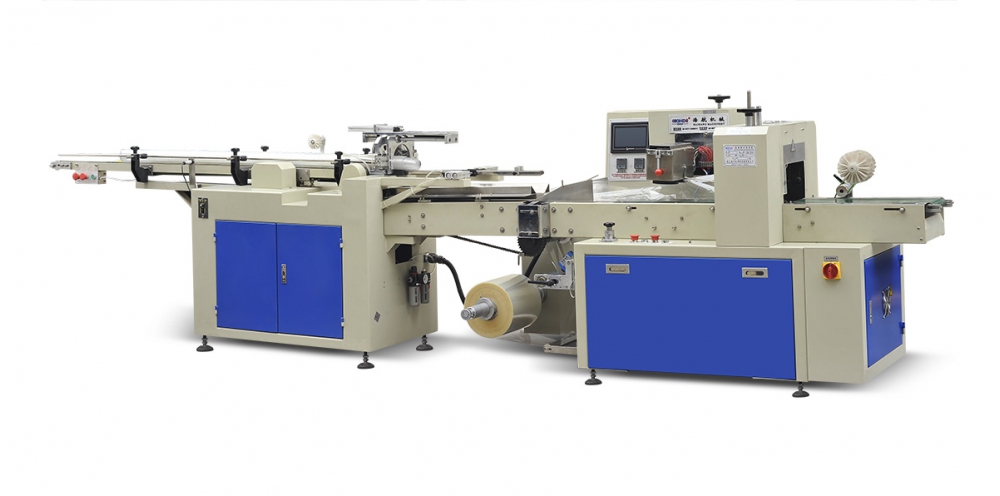

Model	HDXW-4501
Type of film	BOPP/HDPE
Packaging film thickness	20-60 Mircon
Max. film width	420mm
Bag length	100-600mm
Cup diameter	40-98mm
Cup quantity	10-100/pcs
Packing speed(Depend on packing material)	10-40 Bag/min
Machine dimension	5500×1000×1300mm
Machine weight	1000kg

◆Payment: T/T 30% deposit before production and 70% balance before shipment.
◆Delivery time: TWO WEEKS WORKING DAYS

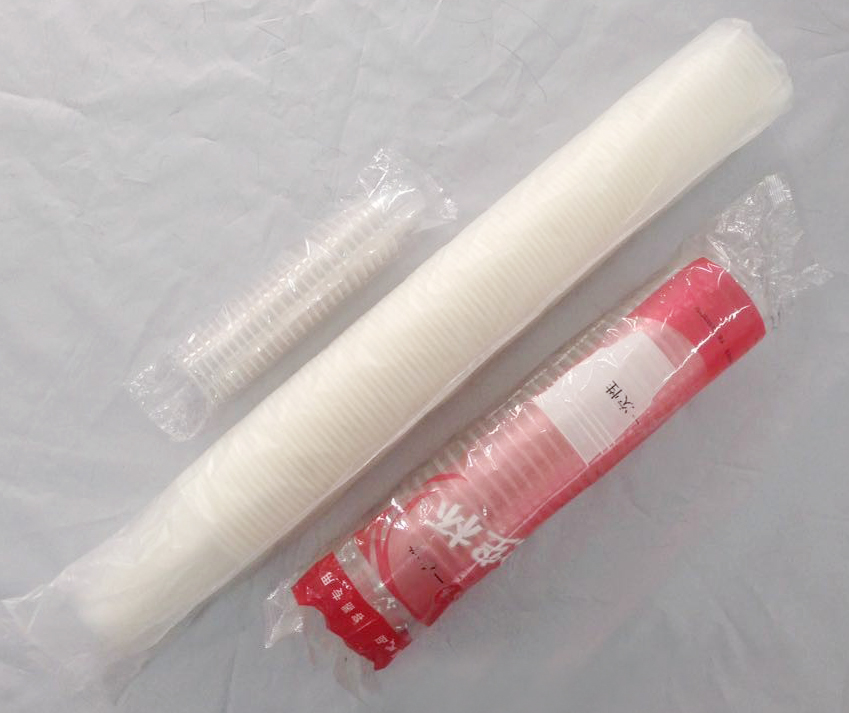

◆Scope of application:Single Disposable circular Cup（bowl） made by plastic or paper (regular).

Configuration
