Main performance
1. Touch screen, convenient adjustment
2. PLC controller, accurate calculation
3. Photoelectric detection, great precision
4. The length is automatic detected and set, without manual
5. Unlimited speed, the scope of speed and length are very wide range
6. Trilateral closure H (pillow sealing)

Features
1. Automatic folding, cutting, feeding and packing.
2. Option with fold type: Z-fold, accordion fold (4-8 planes).
3. Tissue molding and packaging is the two independent parts, can be operated alone.

Specification

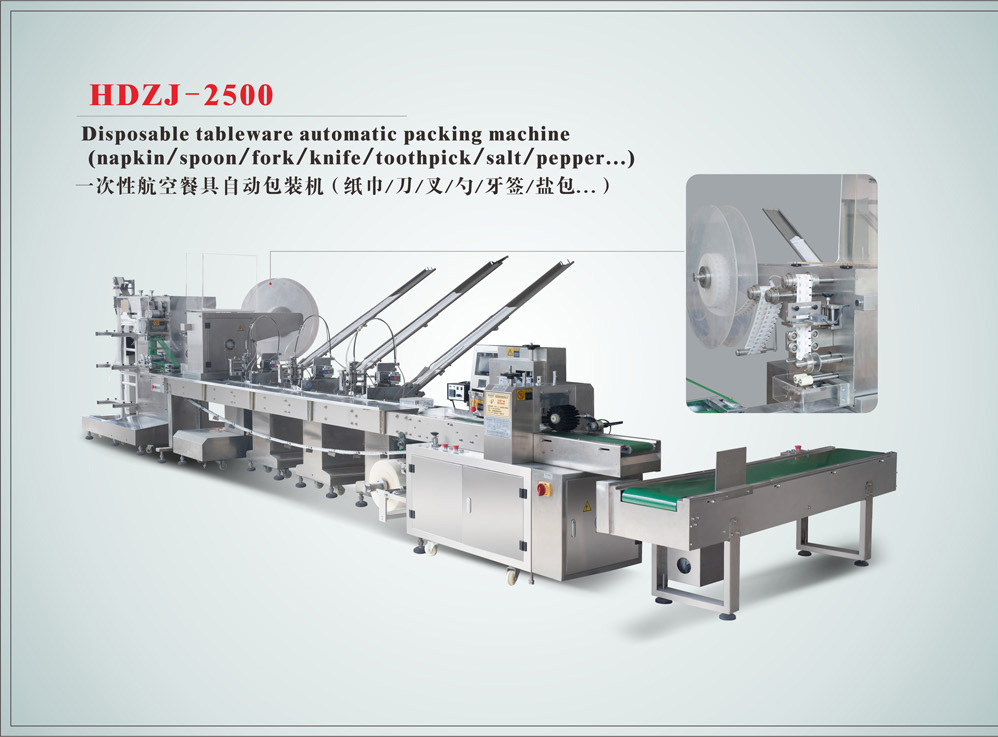

Model

HDZJ-2500

Type of film

BOPP/HDPE

Tissue unfolded size

120-330mm

Tissue unfolded length

160-320mm

Tissue folded width

30-100mm

Packaging film thickness

18-60 Mircon

Max. film width

230mm

Bag length

90-300mm

Packaging width

30-100mm

Packaging height

40mm

Packing speed(Depend on packing material)

40-150 Bag/min

Machine dimension

7200×2080×2200mm

Power

220V/ 8 KW

Machine weight

1550kg


Payment: T/T 30% deposit before production and 70% balance before shipment.
Delivery time:50 working days


Configuration

NAME

Quantity

BRAND

PACKING PART

Touch Screen

1

WEINVIEM from Taiwan

Temperature controller

2

YKEYANG from China

PLC control unit

1

BY HAIHANG

Power switch

1

DELIXI from China

Frequency converter

2

SUNFAR from China

Motor

2

DASU from China

Photoelectric detection sensor

1

JULONG/CNHENW from China

Solid state relay

2

LONGLIVE from China

Proximity sensor

1

OMRON

Rotay encoder

3

OMRON

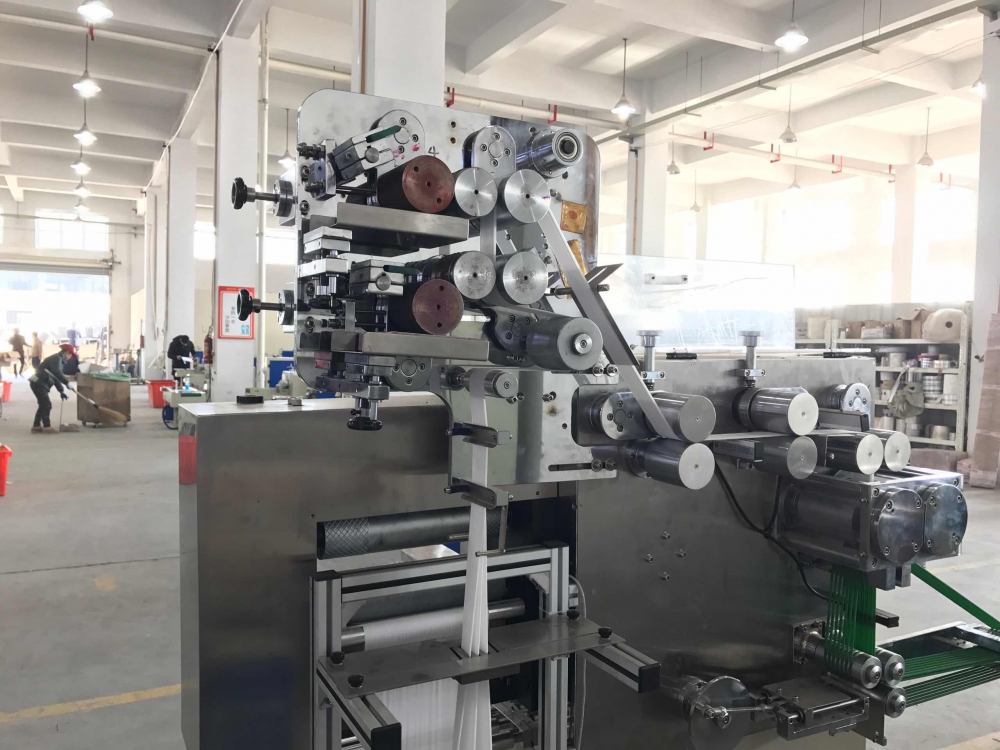

NAPKIN FORMER

Servo Motor

1

DORNA from China

Proximity sensor

1

OMRON

Anti-static techniques

3

TAKKER from American

DC motor

1

DOLI from China

Displacement controller

1

ZXTEC from China

Potentiometer

DC motor board

CUTLERY FEEDER

Digital fiber sensor

1

KEYENCE from Japan

PLC

1

PANASONIC From Japan

Stepper motor+driver

1

Nachuan From China

Transformer

1

Zhengwei From China

Gear motor

1

DOLI from China

Proximity sensor

2

OMRON

TOOTHPICK FEEDER

Temperature controller

1

YKEYANG from China

Stepper motor+driver

1

Nachuan From China

Transformer

1

Zhengwei From China

Gear motor

1

DOLI from China

Proximity sensor

3

OMRON

Rotay encoder

2

OMRON

Salt /pepper feeder

Stepper motor+driver

1

Nachuan From China

PLC

1

PANASONIC From Japan

Transformer

1

Zhengwei From China

Gear motor

1

DOLI from China

Proximity sensor

1

OMRON

Rotay encoder

1

OMRON

Photoelectric detection sensor

1

JULONG/CNHENW from China

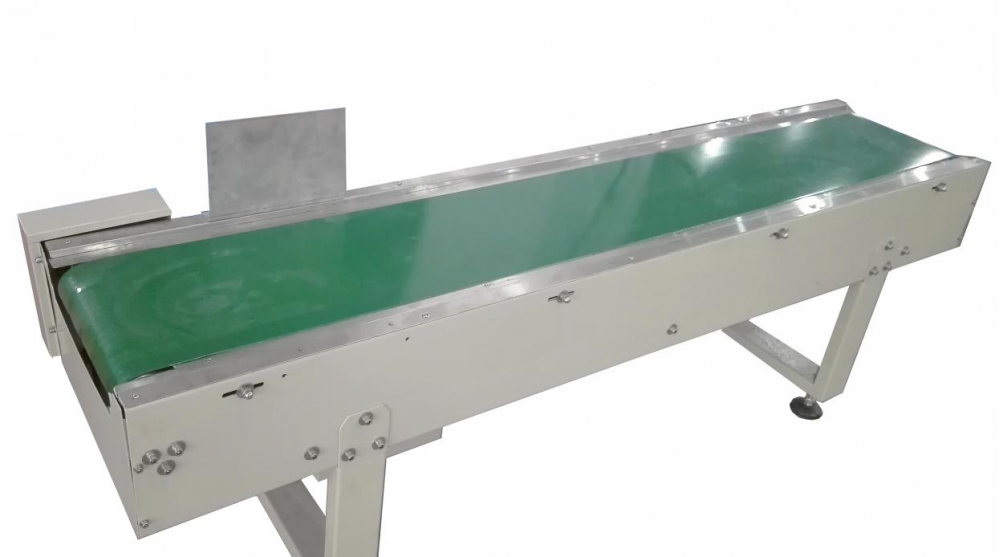

CONVEYOR

Frequency converter

1

SUNFAR from China

Gear motor

1

DOLI from China

Tow colors printing

Optional

Code printer
Printed date and lot number


Counter Conveyor after packed
