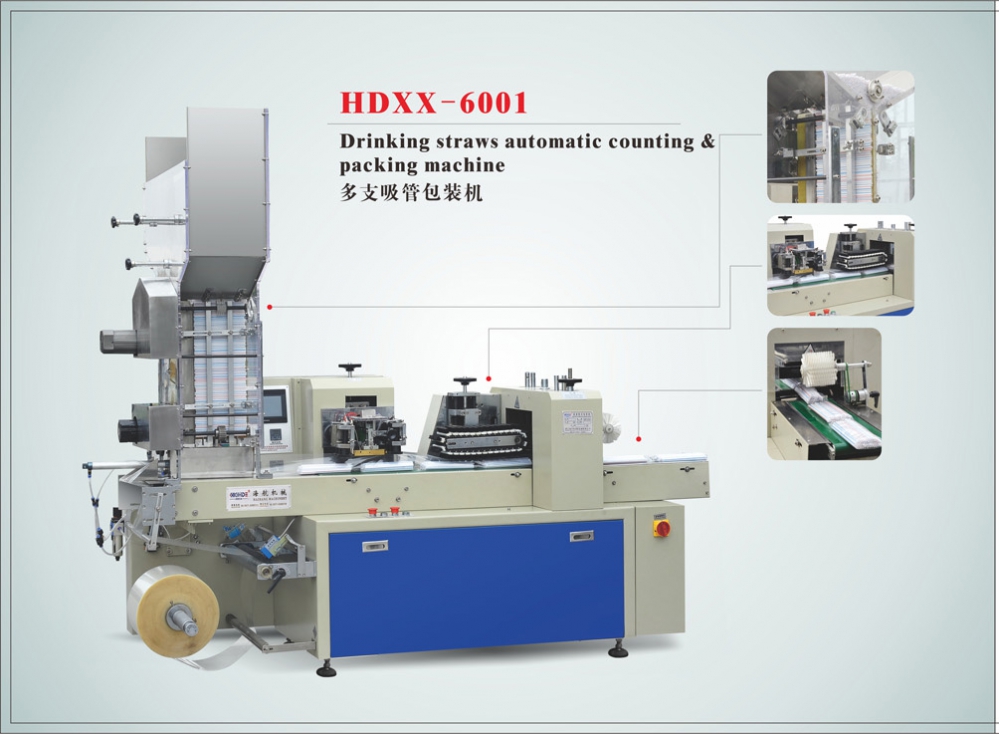

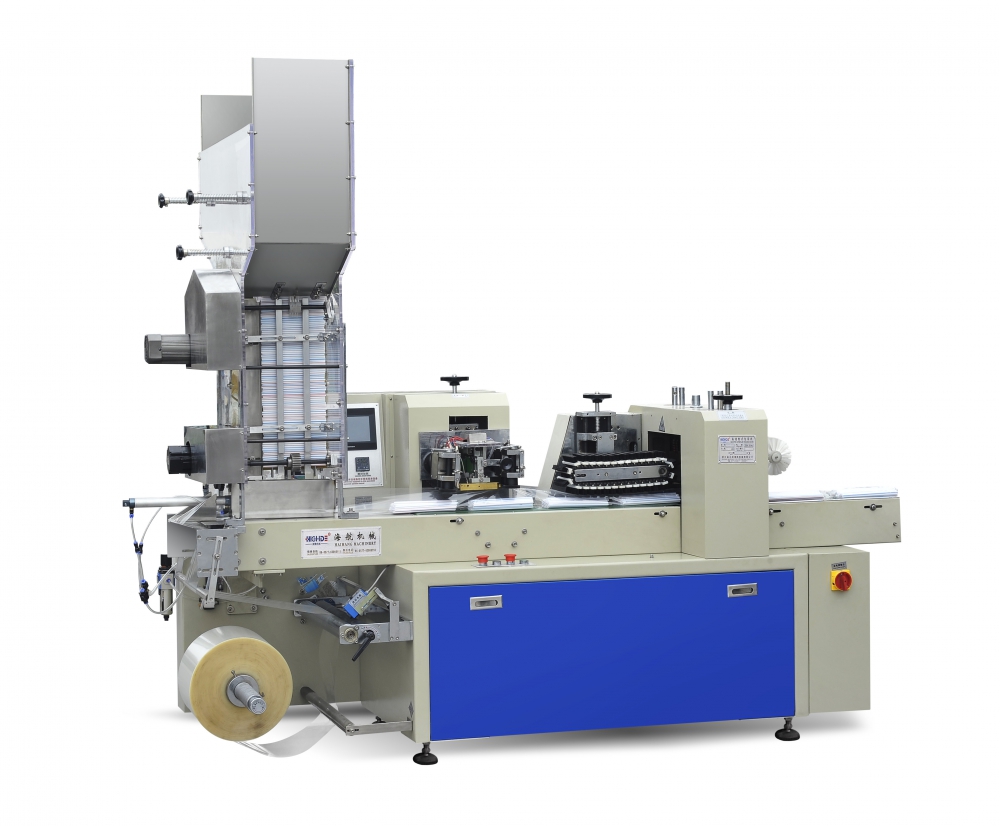

Model | HDXX-6001 |
Packaging film thickness | 18-60Mircon |
Max. film width | 550mm |
Bag length | 150-600mm |
Packaging width | 80-260mm |
Packaging height | 30-70mm |
Packing speed(Depend on packing material) | 8-28bag/min |
Machine dimension | 2800×1200×2250mm |
Machine weight | 850kg |
Package:Plywood case
Payment: T/T 30% deposit before production and 70% balance before shipment.
Delivery time: 20 WORKING DAYS AFTER GOT THE DEPOSIT
Configuration
NO | Appliance | Brand |
1 | Touch Screen | WEINVIEM from Taiwan |
2 | Frequency converter | SUNFAR from China |
3 | PLC control unit | PANASONIC from Japan |
4 | Motor | DASU from China |
5 | Servo Motor | DORNA from China |
6 | Speed Motor | HOULE from China |
7 | Temperature controller | YKEYANG from China |
8 | Power switch | DELIXI from China |
9 | Photoelectric detection sensor | JULONG/CNHENW from China |
10 | Rotay encoder | CHBG from China |
11 | Proximity sensor | OMRON |
12 | Air cylinder | ZHUOYI from China |
13 | Electromagnetic valve | ZHUOYI from China |
14 | Solid state relay | LONGLIVE from China |
