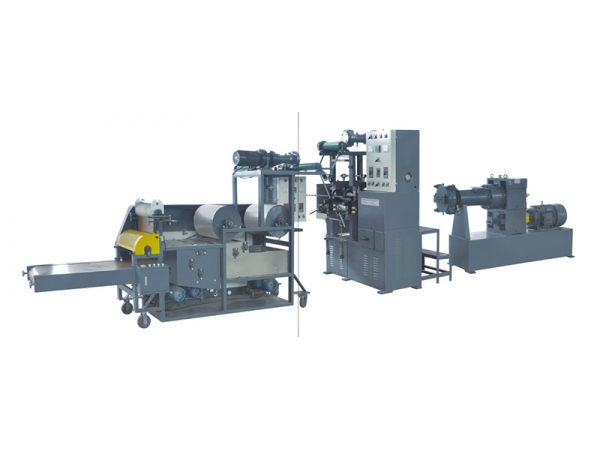

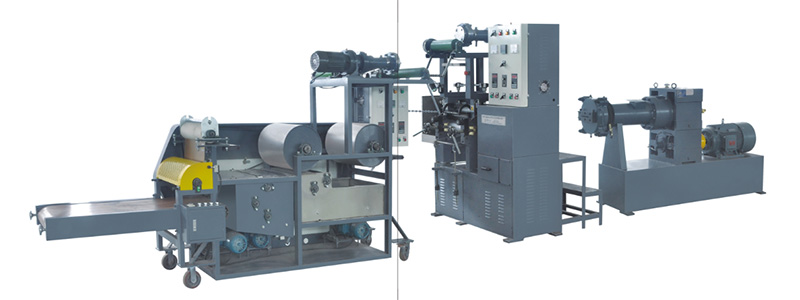

Three-roll Calender

Three-roll Calender

Three-roll rubber calendar has functions of air bubble eliminating, forming, cooling and cutting of rubber material, is capable of manufacturing three-color foxing tape, toe bumper, toe cap and outsole. It features high productivity, multifunction, easy operation. Based on vector frequency conversion control along with new technology transformation, the bearing structure of the main roll is changed, greatly improving wear resistance and operation stability. This rubber calendar is one of the ess

Inquiry
ModelHD-913-4HD-913-6
Calendaring roll size4 inch6 inch
Main extruder screw diameterΦ115mmΦ115mm
Auxiliary extruder screw diameterΦ35*2Φ35*2
Length of rolling surface354mm530mm
Power38.5KW40.5KW
Dimension L*W*H8600*1300*1900mm8900*1450*2000mm
Weight3450KG3850KG
