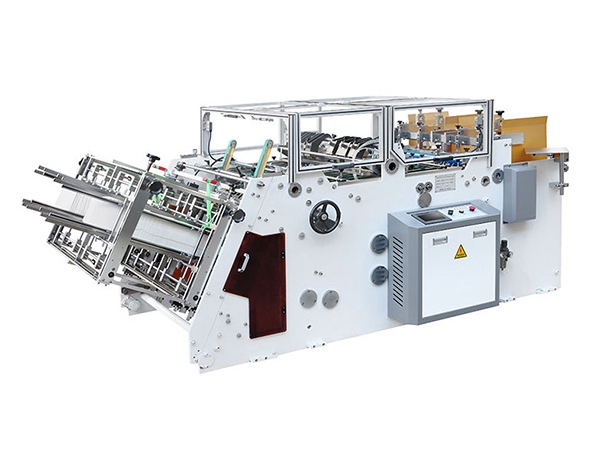

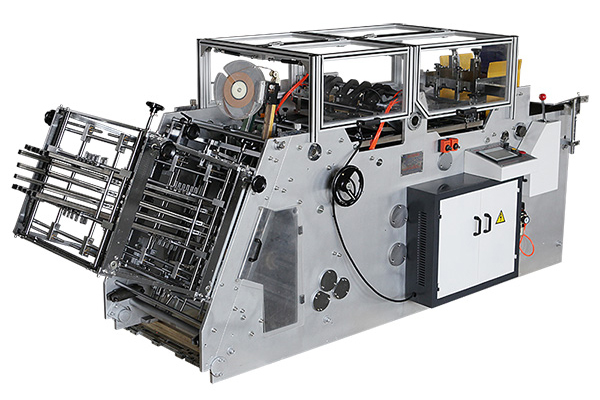

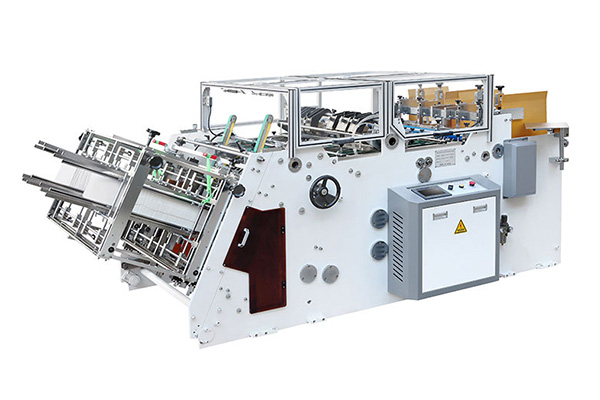

Automatic paper carton erecting forming machine is designed to manufacture burger boxes, french fry boxes, food trays, meal boxes, noodle boxes, hotdog boxes, etc.
It is configured with microcomputer, PLC control and chain transmission mechanism, combined with vacuum sucking and servo motor paper feeding, ensuring a smooth feeding operation and highly accurate positioning. Besides, this paper carton erecting forming machine has functions of automatic gluing and automatic counting, enable the operation more simple and safe.

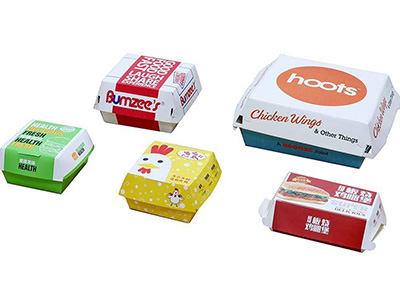

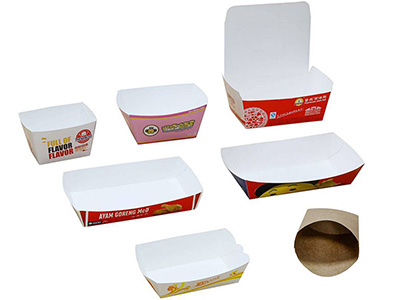

This machine can make more than 10 types of boxes. If any type is not listed in below, please show us your sample.
| Model | HBJ-D800 | HBJ-D1200 |
| Production capacity | 50-180 pcs/min | 80-320pcs/min |
| Applicable Material | 200-600gsm white card board, PE coated paper, kraft paper, corrugated paper | 200-600gsm white card board, PE coated paper, kraft paper, corrugated paper |
| Size | Length: 100-450mm,degree:5°-40° | Length: 100-450mm,degree:5°-40° |
| Width: 100-600mm | Width: 100-400mm | |
| Height: 15-200mm | Height: 15-200mm | |
| Total power | 5KW | 6.5KW |
| Total weight | 1.8T | 2.5T |
| Overall dimension | 3600 x1400 x 1700 mm | 3600 x 1800 x 1700 mm |
| Power source | 380V /220V 50HZ | 380V /220V 50HZ |
